ALP-003 15 mm Deep with Flange - LED Aluminium profile - 2m

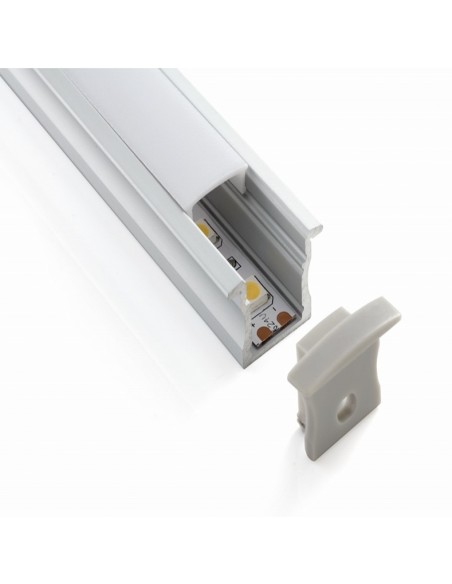

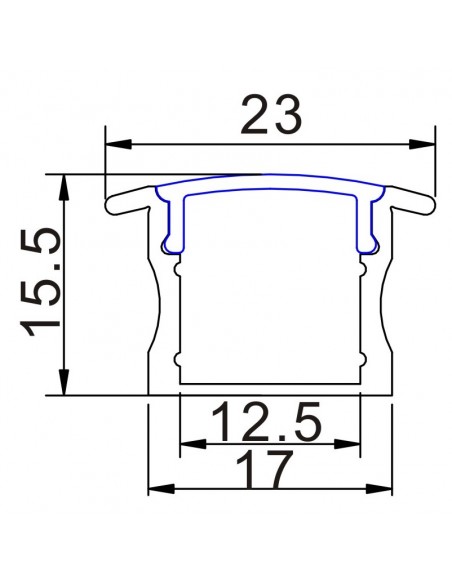

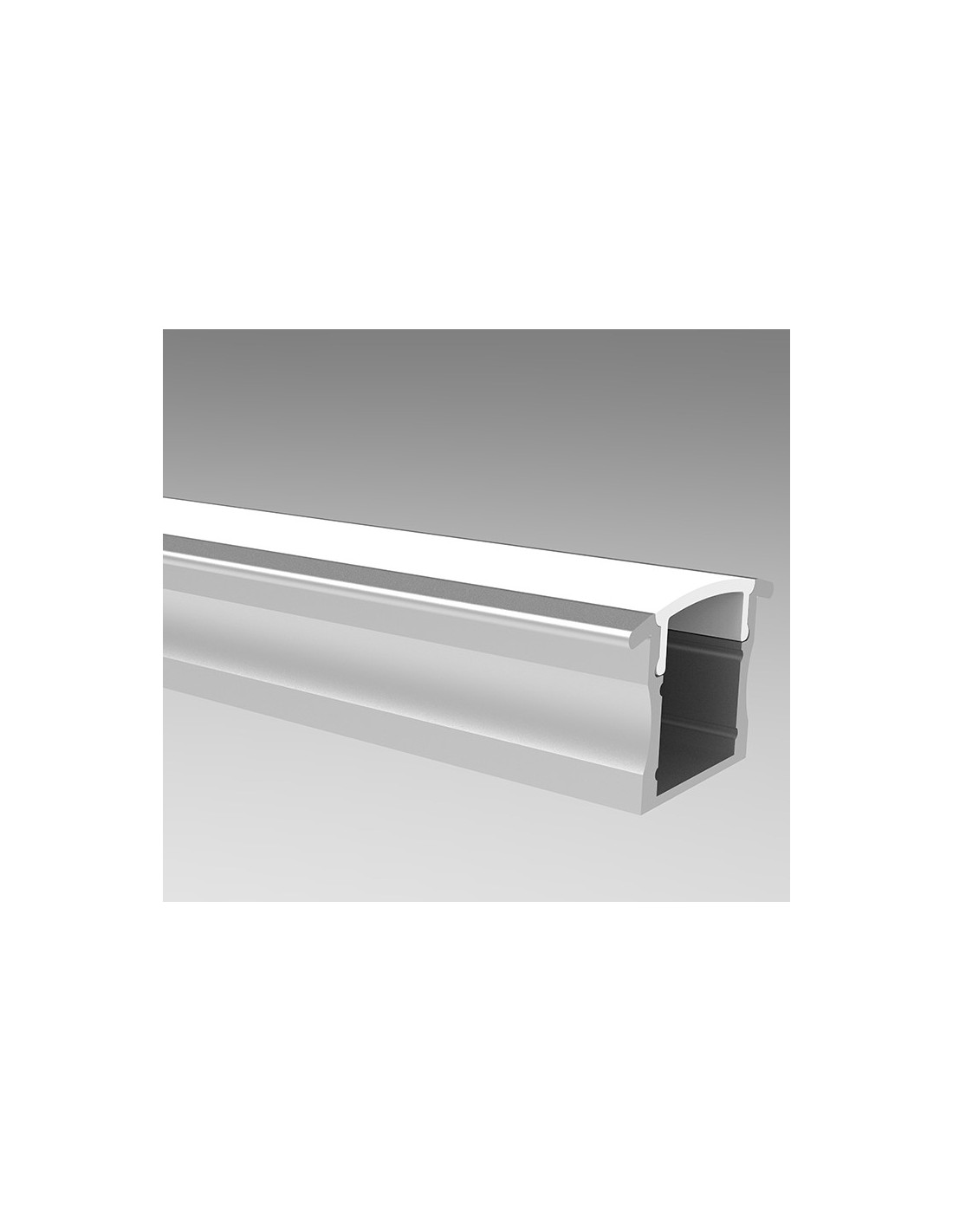

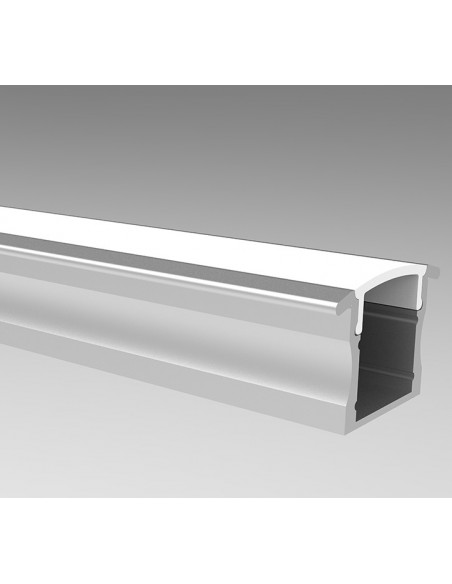

  • 15 mm deep LED Aluminium profile with FLANGE

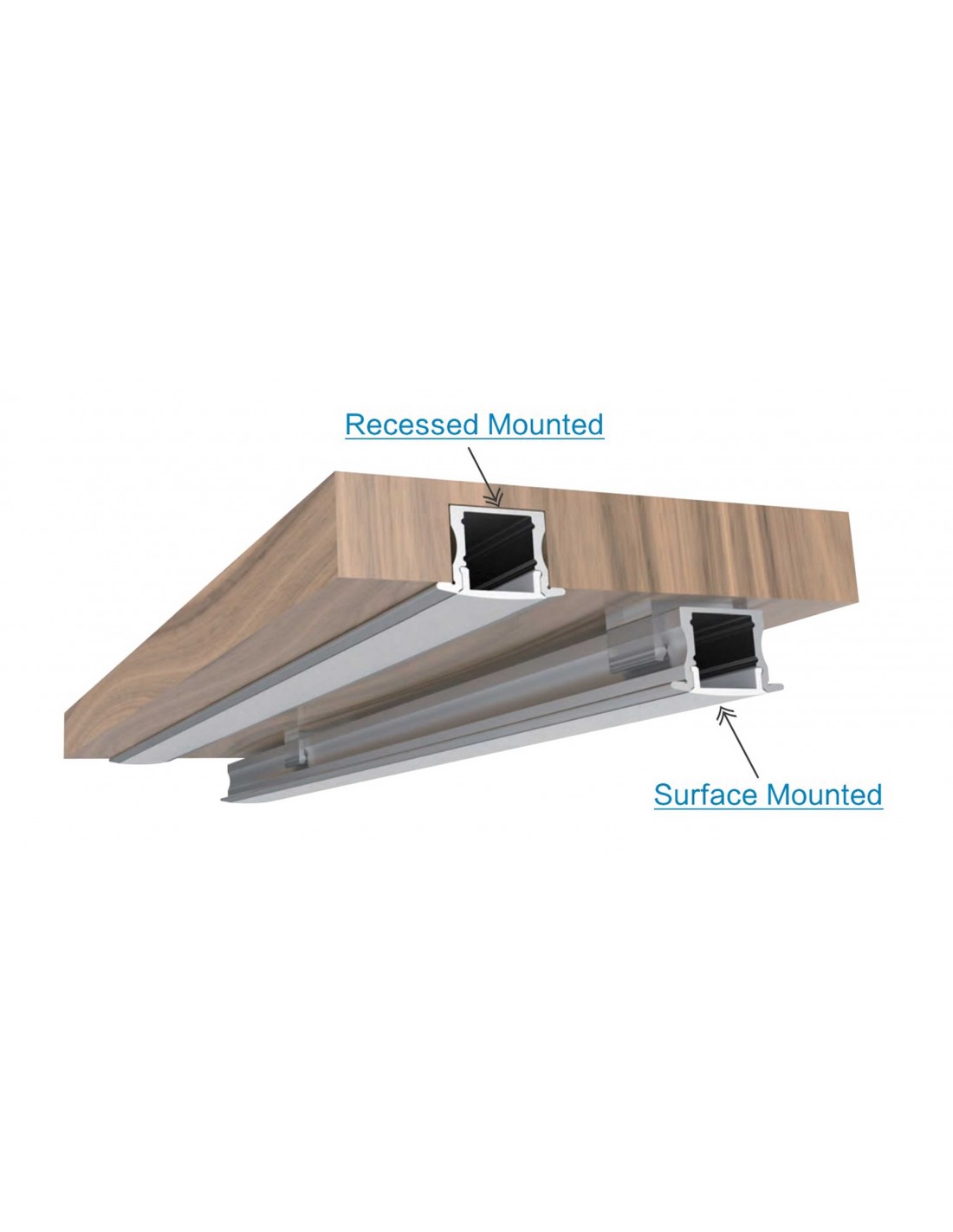

  • Ideal for both recessed and surface mounting applications.
  • Less LED density is enough for dot free light !!!
  • Same as ALP-004 with flange. This is a higher version of ALP-001.

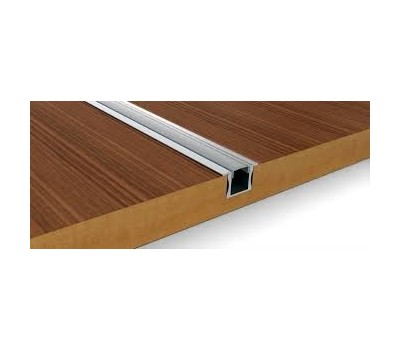

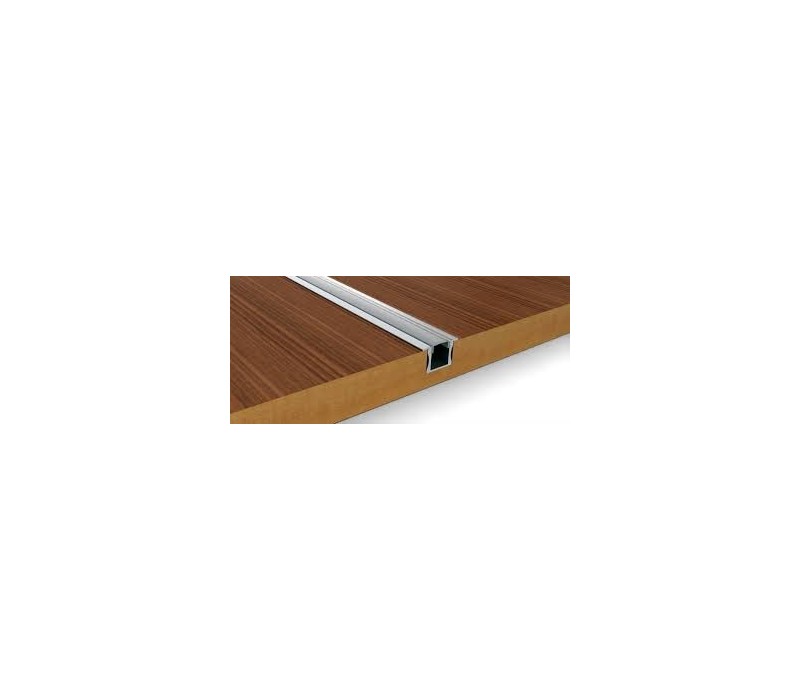

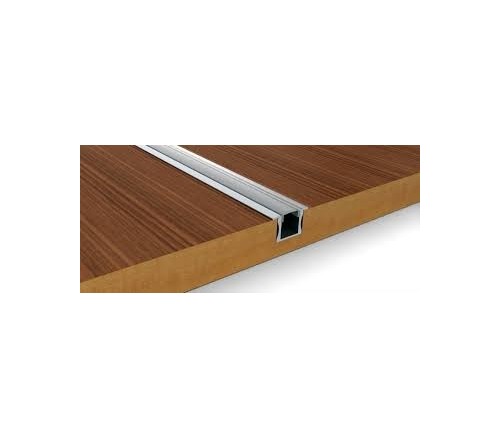

  • Ideal for wall, plasterboard and furniture applications .
  • The high construction and opaque diffuser offers even light.

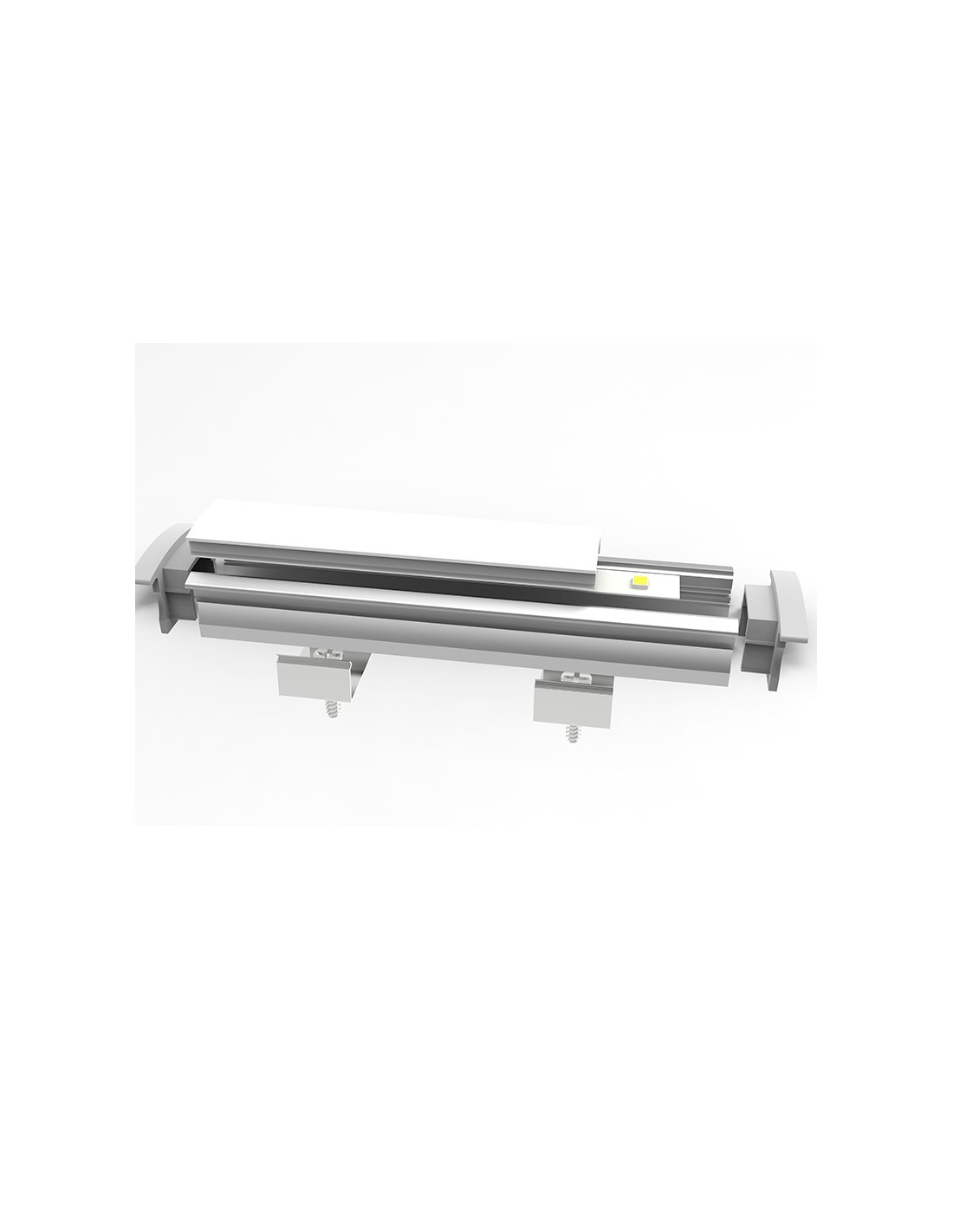

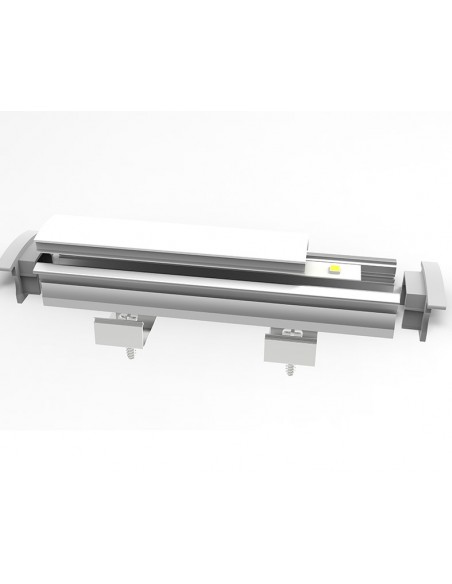

  • The price refers 2 m profile with diffuser, 2 end caps and 2 mounting clips.
  • For LED strips up to 12mm - 3528, 2835, 5050, 5630, 5730.

ALP-003
In Stock
€7.87

(€7.87 per 2m piece)

Tax included Usually delivered in 1-2 Days

Description

This 15 mm deep profile is a higher version of  LX-001.

The more depth offers more even light. Less LED density is enough for dot free light than with lower versions !!!

Applications:

  • Built into plasterboard
  • Built into furniture (kitchen / office) lighting
  • Interior light designs (stairs / storage / floor)
  • Stores shelf LED lighting
  • Exhibition boot LED lighting
  • Heat sink and physical protection to the LEDs!!!

Features :

  • Extruded 6063 T5 Aircraft grade aluminium with Anodised surface
  • High quality diffuser, placing/removing from front on click
  • UV resistant
  • Available with opal matte diffuser
  • No LED dots shows on opal diffuser (high density LED ribbon)
  • Suitable for flexible as well as high power led bars
  • Available length – 2m (for larger length please contact us)
  • For indoor use only

 NOTE! The price refers only to aluminum profile! Led strips are ordered separately.

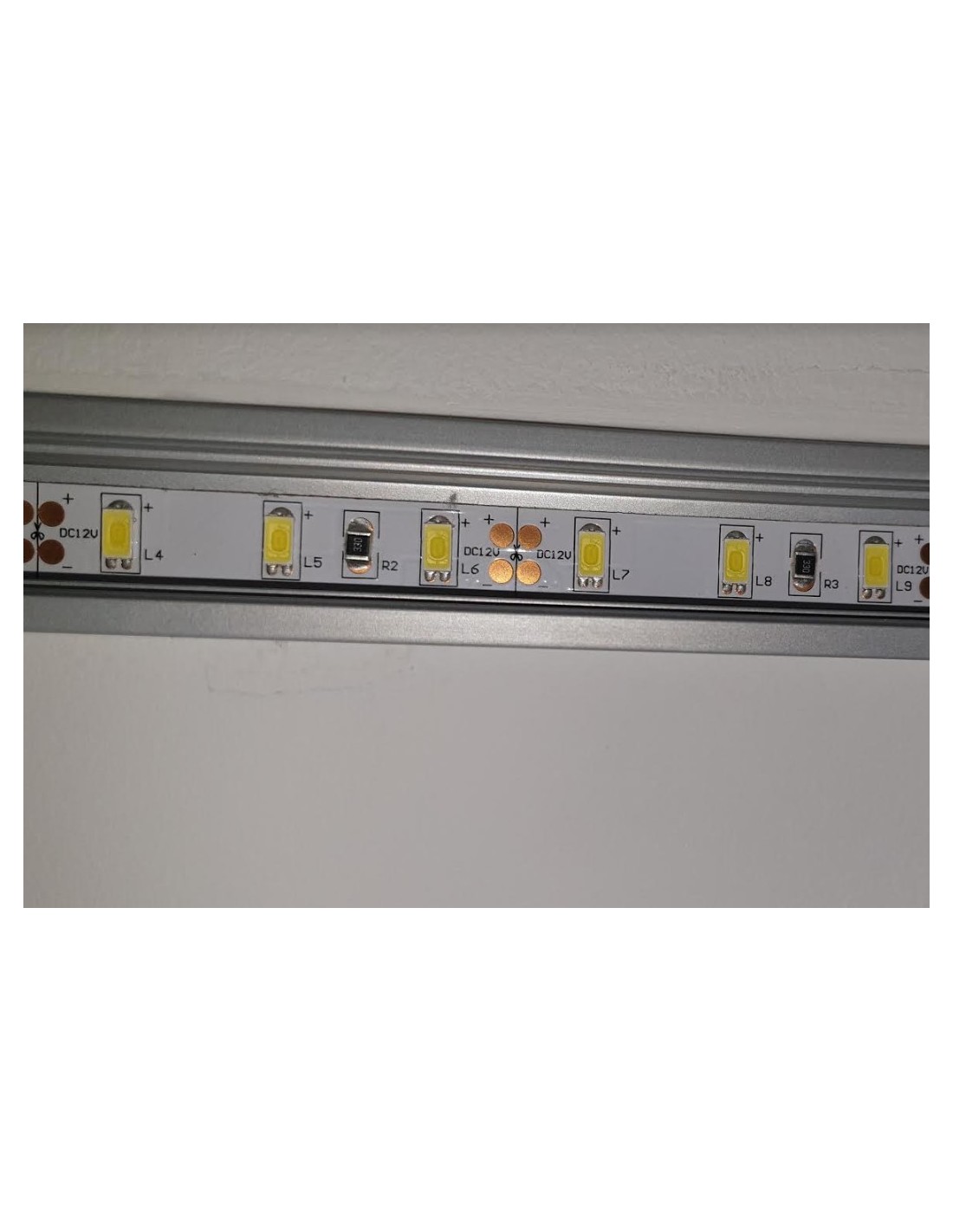

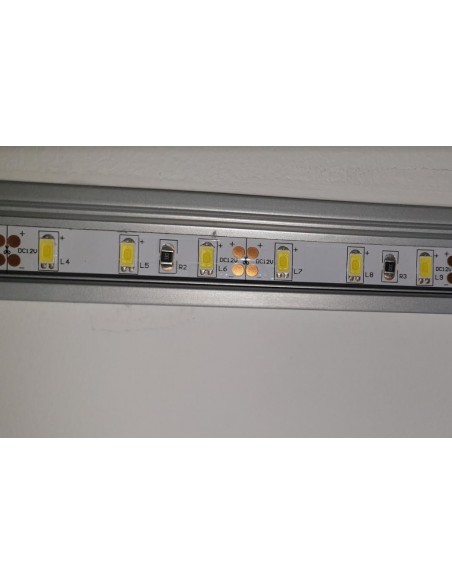

This low-profile profile is best suited for 120 led/m led strips if an even light is desired. As a distance between the LEDs increased, slight bright spots can be appear.

Important note to light permeability: If the led strip luminous emittans without front plastic is 100% Lux, in a profile with semi-transparent cover decrease the light by 10%, in a profile with matt diffuser the loss is around 50%. So, matt diffusers provide more even light, but also decreased intensity. In practice, given the wide range of strong LED strips it does not cause any problem.

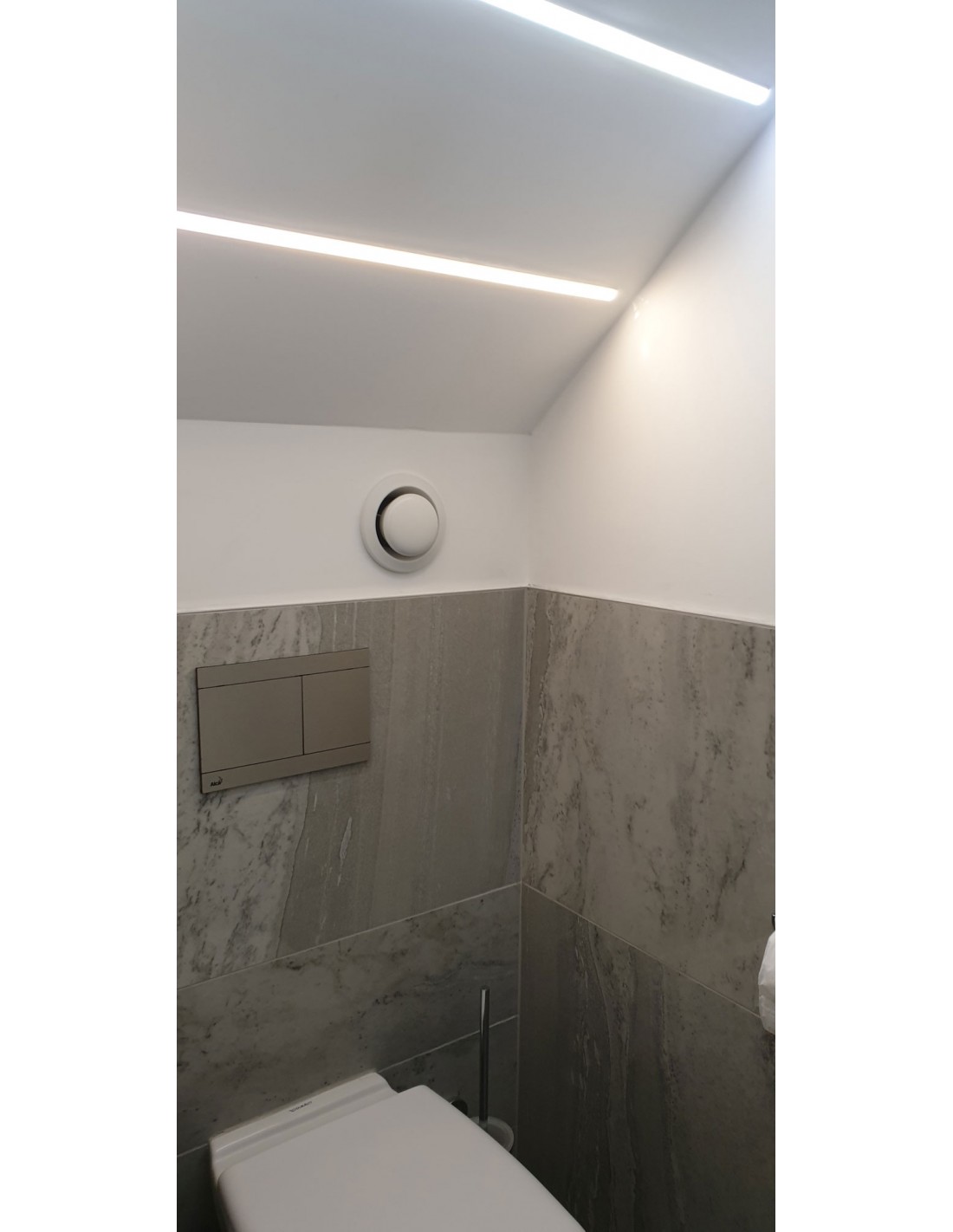

IRELAND TOILET UNDER STAIRS - ALP-003 IN PLASTERBOARD
Ireland toilet alp-003

Product Details

Flange
YES
Profile shape
U profile
