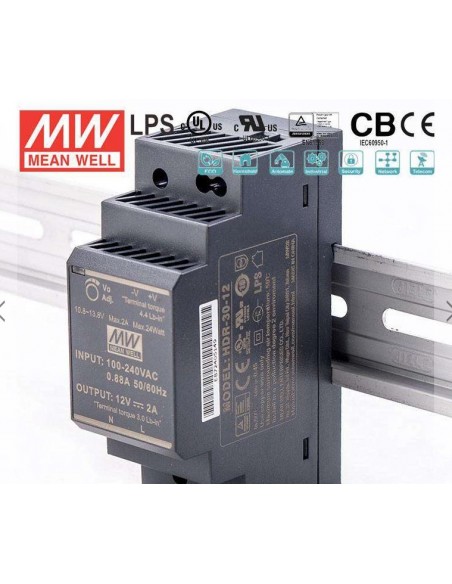

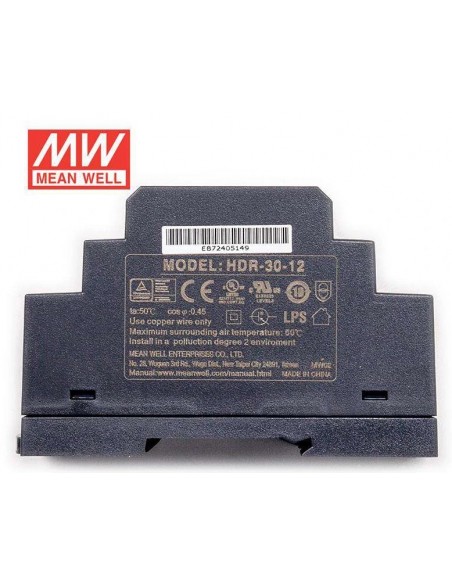

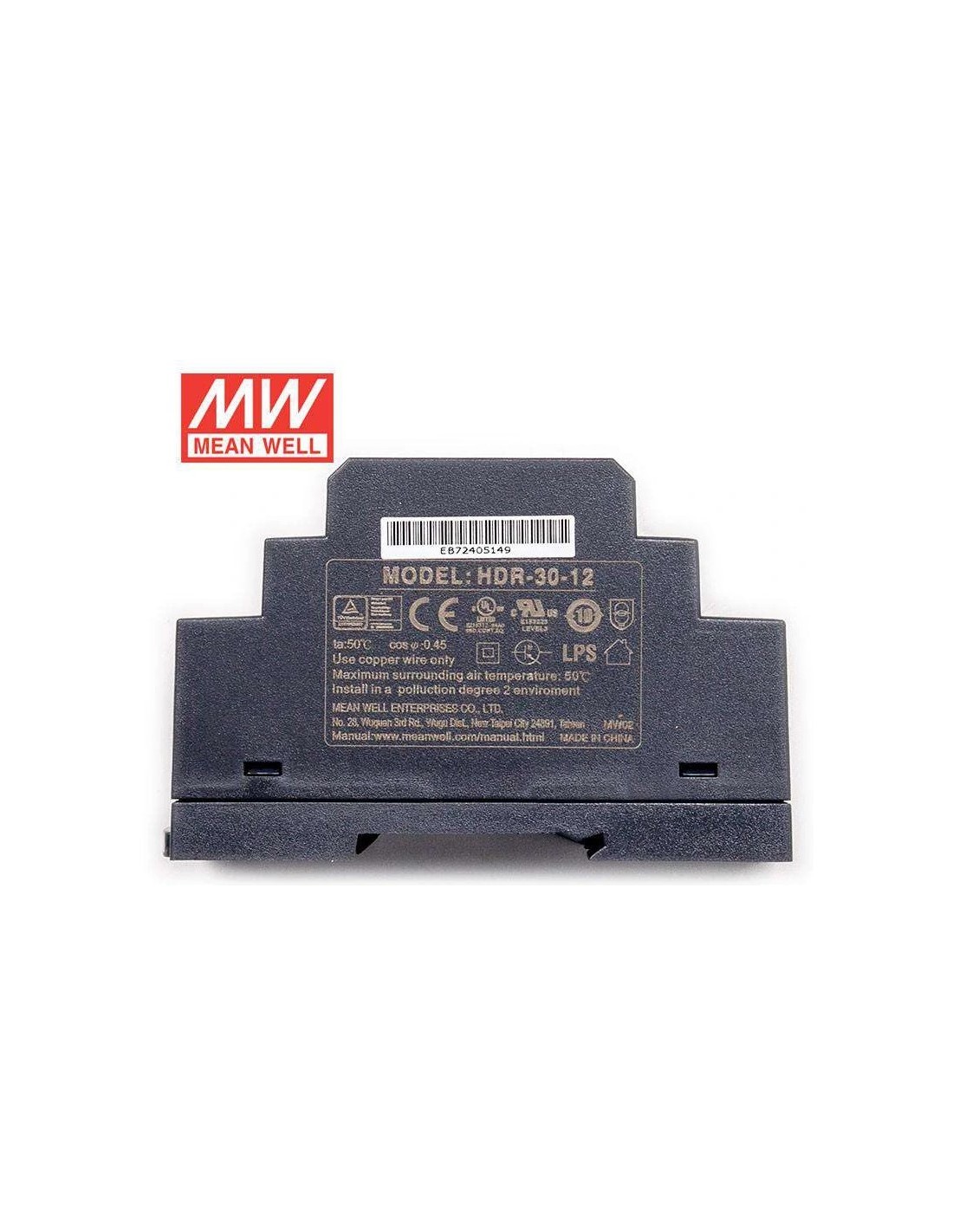

Mean Well HDR Series DIN Rail Power Supply 30 Watt 12 V AC/DC
The HDR series PSU is an economical and ultra slim power supply which can be adapted to be installed on TS-35/7.5 or TS-35/15 DIN Rails. The body has a narrow width which allows for space saving within a cabinet. The HDR series power supply has been designed with plastic housing that can effectively prevent electrical hazards.
Features and Benefits
• Stepped shape plastic housing • Full range input
• Compact size
• Isolation Class II
• Can be ssembled on an industrial DIN Rail TS-35/7.5 or 15
• DC output voltage adjustable
• No load power consumption <0.3 W
Product Application Information
• Industrial control systems • Building automation
• Factory automation
• Electro-mechanical apparatus
• Household control system
Attribute | Value |
---|---|
AC or DC Output Voltage | Dc |
Input Voltage | 85 → 264 V ac, 120 → 370 V dc |
Output Voltage | 12 V dc |
Output Current | 2 A |
Power Rating | 24W |
Number of Outputs | 1 |
Electrical Phase | 1 |
Type | Switch Mode |

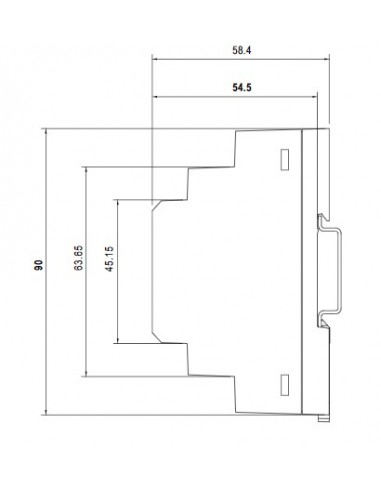

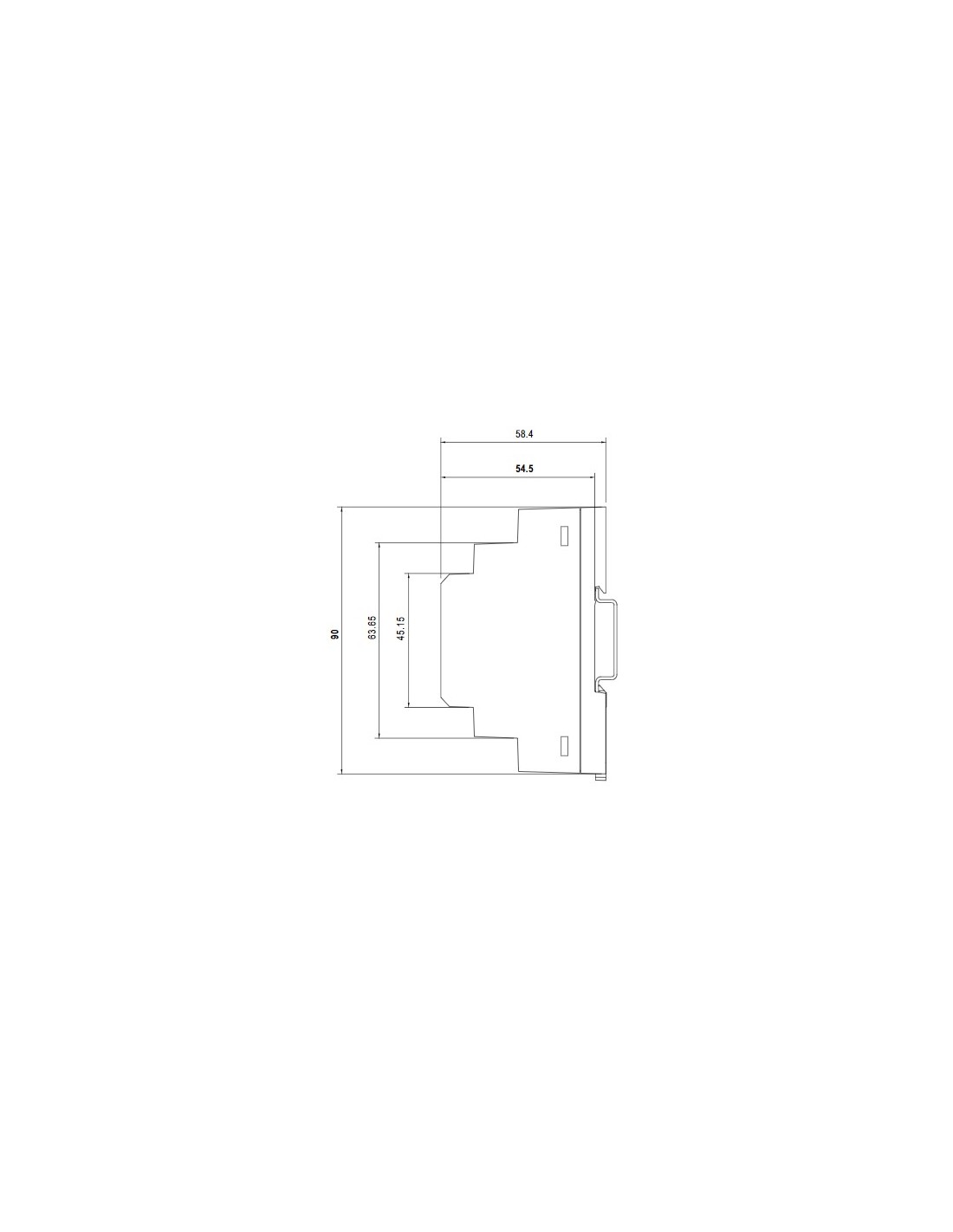

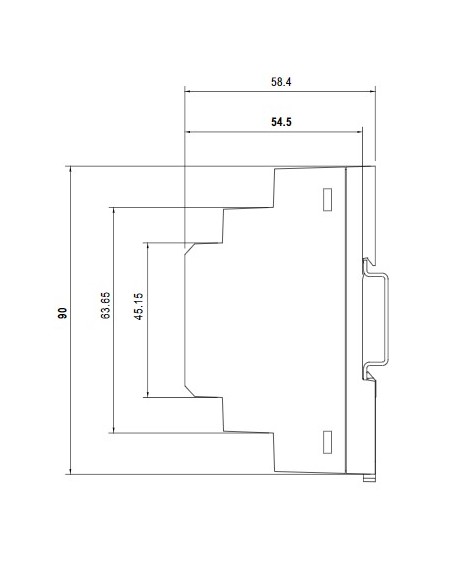

Height | 90mm |
Width | 35mm |
Series | HDR |
Standards Met | RoHS Compliant, TUV EN 60950-1, UL 508 |
Maximum Temperature | +70°C |
Special Features | Small & Compact |
Output Voltage Adjustment Range | 10.8 → 13.8V |
MTBF | 968.1kh |
Ripple And Noise | 120mV Pk-Pk |
Minimum Temperature | -30°C |
Depth | 54.5mm |
Mounting Type | DIN Rail |
Load Regulation | ±1% |
