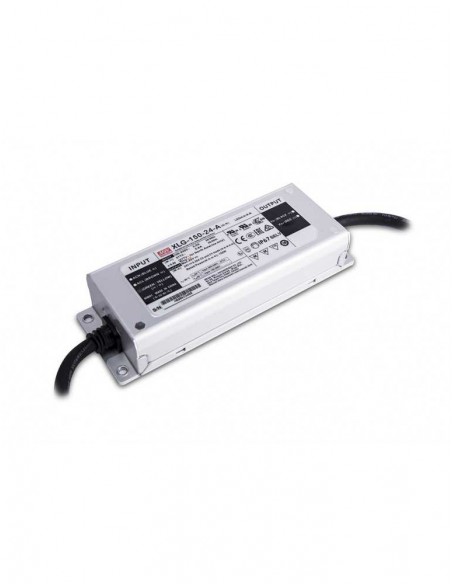

MEAN WELL XLG-100-24-A POWER SUPPLY - CV / CP - IP67

Name: MEAN WELL XLG-100-24-A POWER SUPPLY - CV / CP - IP67
Brand: Mean Well
SKU: XLG-100-24-A
Price: 30 EUR
Availability: InStock

Mean Well XLG-100-24-A - 96Watts Constant Voltage / Constant Power (automatic between the two functions) 24V LED Power Supply - Active PFC

This power supply is a 96W AC/DC LED driver operates 100-305 VAC and offers DC 24 Volt. Thanks to the high efficiency up to 92%, with the fan-less design, the entire series is able to operate for -40°C +90°C° case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this model both indoor and outdoor applications. Dimmer can be used between the LED strip and this power supply.

Reference XLG-100-24-A

In Stock

€30.00 (€30 + VAT)

Dispatched within 24 hours.

Description

General Specification of XLG-100 Series

AC input voltage range	100~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 50A at 230VAC
No Load power consumption	<0.5W
Current adjustment range	See the datasheet below
Over current protection	95%~108%
Over voltage protection	13.5-18V 12V series, 27-34V 24V series
Setup, rise, hold up time	500ms, 100ms (230V)
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-40~+90ºC (refer to output derating curve)
Safety standards	See the datasheet below
EMC standards	See the datasheet below
Connection Input	UL rated, SJTW 18AWGx3C (30cm);

Dimension (LxWxH) (mm)	140 x 63 x 32 mm

Product Details

IP rating: IP67
Voltage: 24V
Warranty: 3 Years
Power: 100 W
Dimming: Yes, dimmer can be used between the LED strip and Power supply
Housing: Metal
PFC: Built in Active PFC
