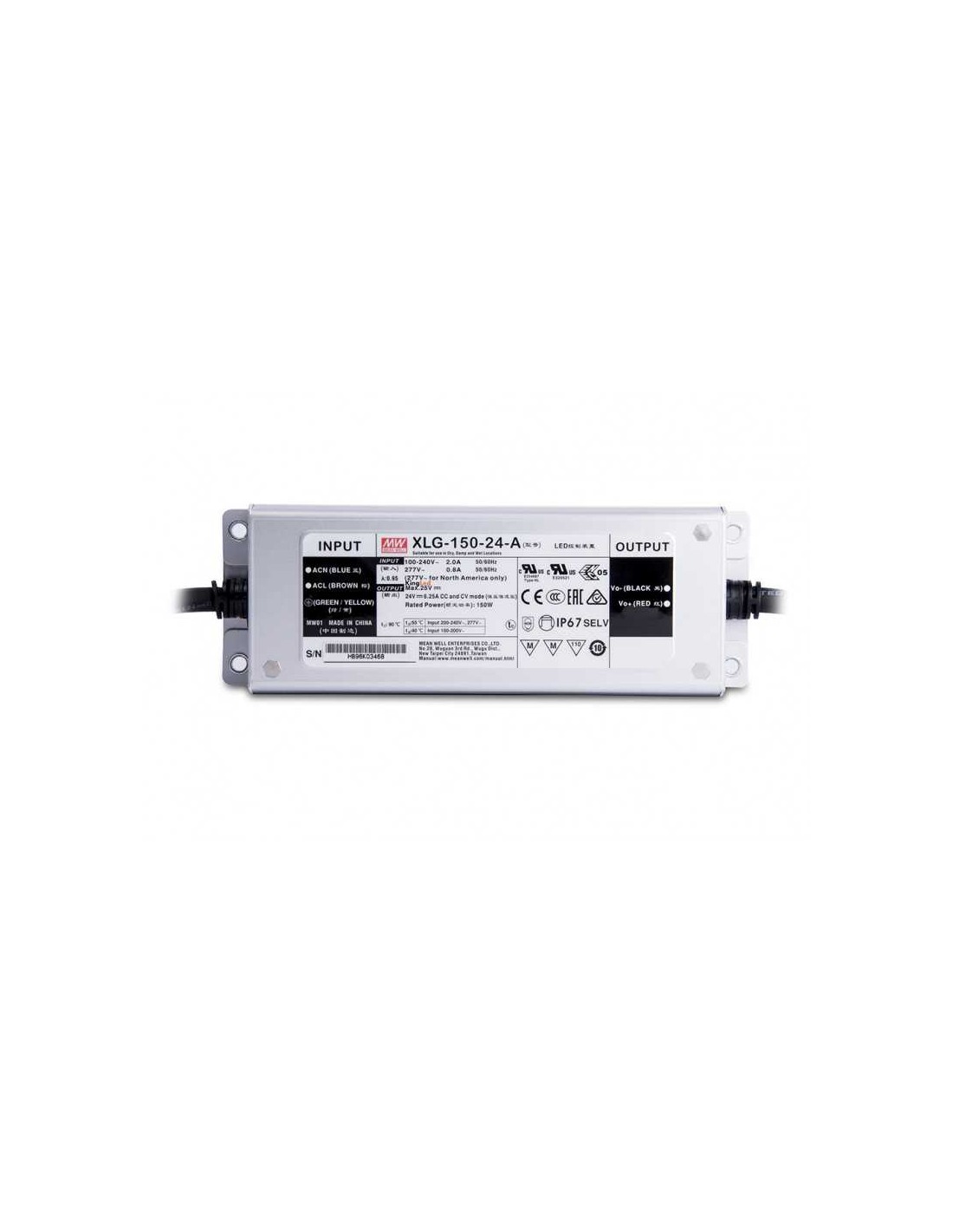

Mean Well XLG-150-24A 24V LED Driver Power Supply
Mean Well XLG-150-24A 24V LED Driver Power Supply
Mean Well XLG-150-24A 24V LED Driver Power Supply
Mean Well XLG-150-24A 24V LED Driver Power Supply

MEAN WELL XLG-200-24A POWER SUPPLY - CV / CP - IP67

Mean Well HLG-200-24A - 199.2Watts Constant Voltage / Constant Power (automatic between the two functions) 24V LED Power Supply

This power supply is a 199.2W AC/DC LED driver operates  100-305 VAC and offers DC 24 Volt. Thanks to the high efficiency up to 94%, with the fan-less design, the entire series is able to operate for -40°C +90°C° case temperature under free air convection. The design of metal housing and  IP67 ingress protection level allows this model both indoor and outdoor applications. Dimmer can be used between this power supply and the LED strips.

XLG-200-24-A
In Stock
€36.50 (€36.5 + VAT)
Dispatched within 24 hours.

Description

General Specification of XLG-200H Series

AC input voltage range 100~305VAC ; 127~431VDC
AC inrush current (max.) Cold start, 65A at 230VAC
DC adjustment range See the data sheet below
No load Power Consumption <0.5W
Over current protection 95%~108% constant current limiting, auto-recovery
Over voltage protection 27-34V
Setup, rise, hold up time 500ms, 100ms (230V)
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -40~+90ºC (refer to output derating curve)
Safety standards See the data sheet below
EMC standards See the data sheet below
Connection Input UL rated, SJTW 18AWGx3C (30cm);
Connection Output A/D/Blank-Type: SJTW 14AWGx2C (30cm) ; B-Type: SJTW 14AWGx2C (30cm)+SJTW 18AWGx2C (30cm);
Dimension (LxWxH) (mm) 199 x 63 x 35.5 mm



Product Details

IP rating
IP67
Voltage
24V
Warranty
3 Years
Power
200W
Dimming
Yes, dimmer can be used between the LED strip and Power supply
Housing
Metal
PFC
Built in Active PFC

Attachments
