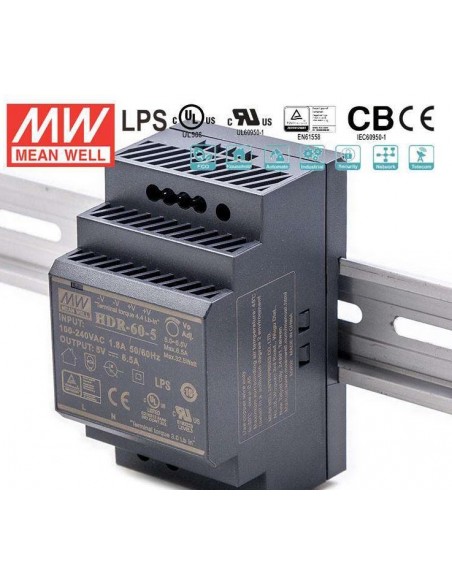

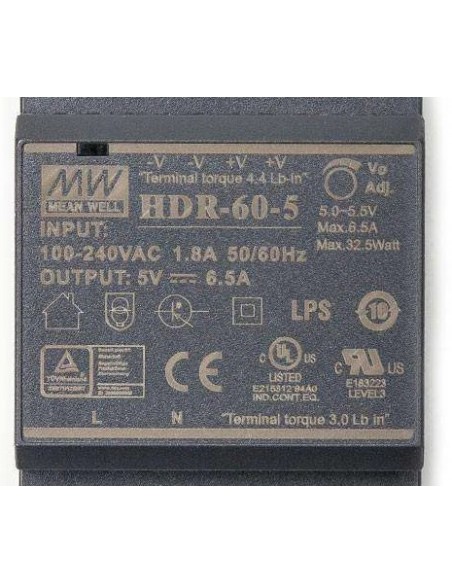

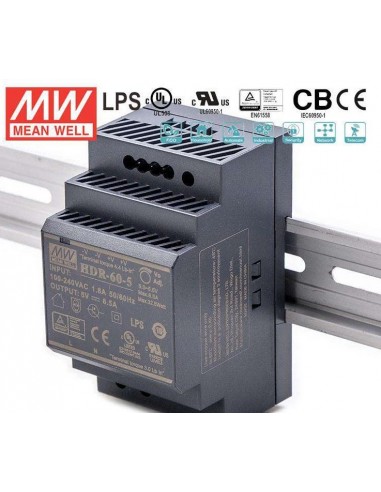

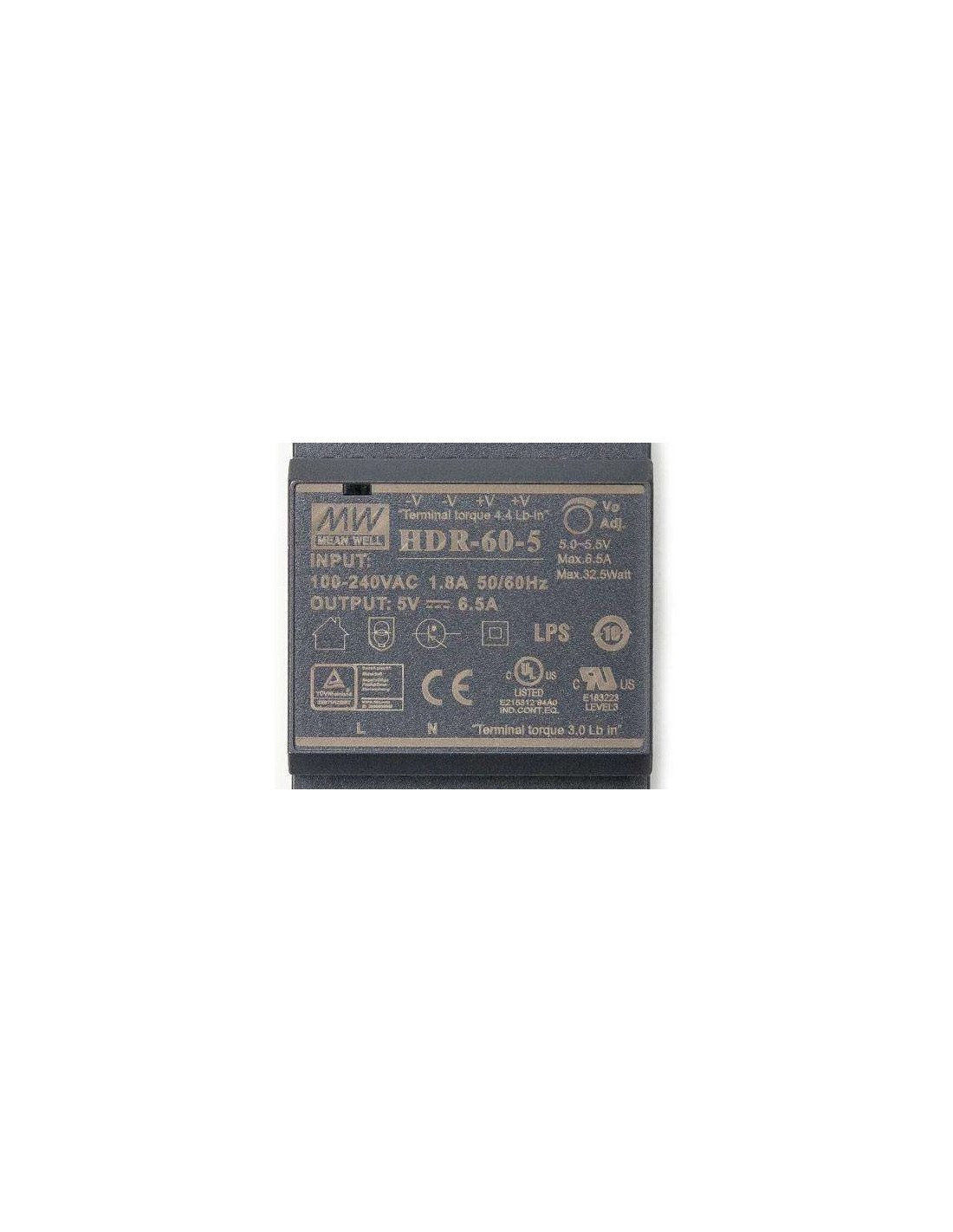

Mean Well HDR Series DIN Rail Power Supply 60 Watts 5 Volts AC/DC
The HDR series PSU is an economical and ultra slim power supply which can be adapted to be installed on TS-35/7.5 or TS-35/15 DIN Rails. The body has a narrow width which allows for space saving within a cabinet. The HDR series power supply has been designed with plastic housing that can effectively prevent electrical hazards.
Features and Benefits
• Stepped shape plastic housing • Full range input
• Compact size
• Isolation Class II
• Can be ssembled on an industrial DIN Rail TS-35/7.5 or 15
• DC output voltage adjustable
• No load power consumption <0.3 W
Product Application Information
• Industrial control systems • Building automation
• Factory automation
• Electro-mechanical apparatus
• Household control system
| Attribute | Value |
|---|---|
| AC or DC Output Voltage | Dc |
| Input Voltage | 85 → 264 V ac, 120 → 370 V dc |
| Output Voltage | 5 V dc |
| Output Current | 6.5 A |
| Power Rating | 32.5W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 90mm |
| Width | 52.5mm |
| Minimum Temperature | -30°C |
| Maximum Temperature | +70°C |
| Standards Met | RoHS Compliant, TUV EN 60950-1, UL 508 |
| Series | HDR |
| Mounting Type | DIN Rail |
| Depth | 54.5mm |
| Special Features | Small & Compact |
| Load Regulation | ±1% |
| MTBF | 927.6kh |
| Output Voltage Adjustment Range | 5 → 5.5V |
| Ripple And Noise | 80mV Pk-Pk |
