Profile |

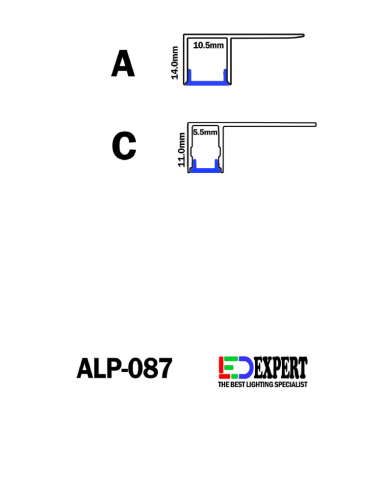

LED in Tile profile, 087A - 10MM STRIPS CAN BE USED |
Cover |
PC diffuser - opal matte |
Length |
2M |
Accessories |
|
LED |
10mm or less wide LED light strip - sold separately |
*NOTE! The price refers only to aluminum profile! Led strips are ordered separately.
Application:
- LED in TILE system, the profile is recessed into 12mm or less thick tiles.
- This is a straight profile. Inside corner and outside corner versions are also available.
Specifications :
- High quality opal PC diffuser
- No dots shown with high density strips like min 120 LED/m or COB
- For indoor use only
Important notes for selecting the diffuser and LED light source:
This low-profile profile is best suited for 120-240 led/m led strips if an even light is desired. As a distance between the LEDs increased, slight bright spots can be seen.
If the led strip luminous emittans without front plastic is 100% Lux, in a profile with semi-transparent cover decrease the light by 10%, in a profile with matt diffuser the loss is around 50%. So, matt diffusers provide more even light, but also decreased intensity. In practice, given the wide range of strong LED strips it does not cause any problem.
An LED profile is not just for design; it is a Heat sink and physical protection to LEDs!!! Without cooling the LED lifespan will be dramatically decreased.
