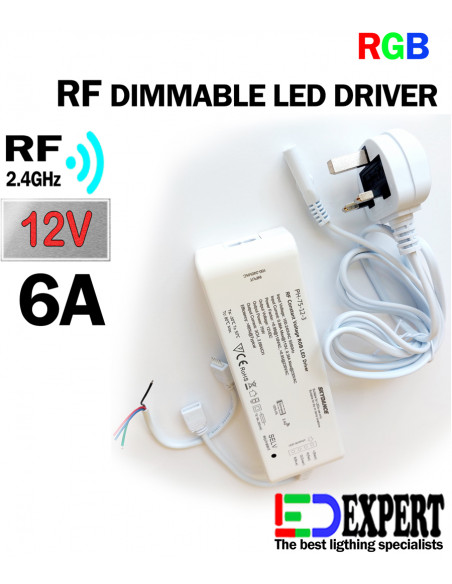

RF RGB DIMMABLE LED DRIVER PH-75-12-3 - ACTIVE PFC
- 230 VAC Power supply and RGB LED controller in 1 unit
- INCLUDES UK POWER CORD AND RGB CONNECTOR
- You Do not need separate RF dimmer and power supply if you use this unit! One unit solves everything!

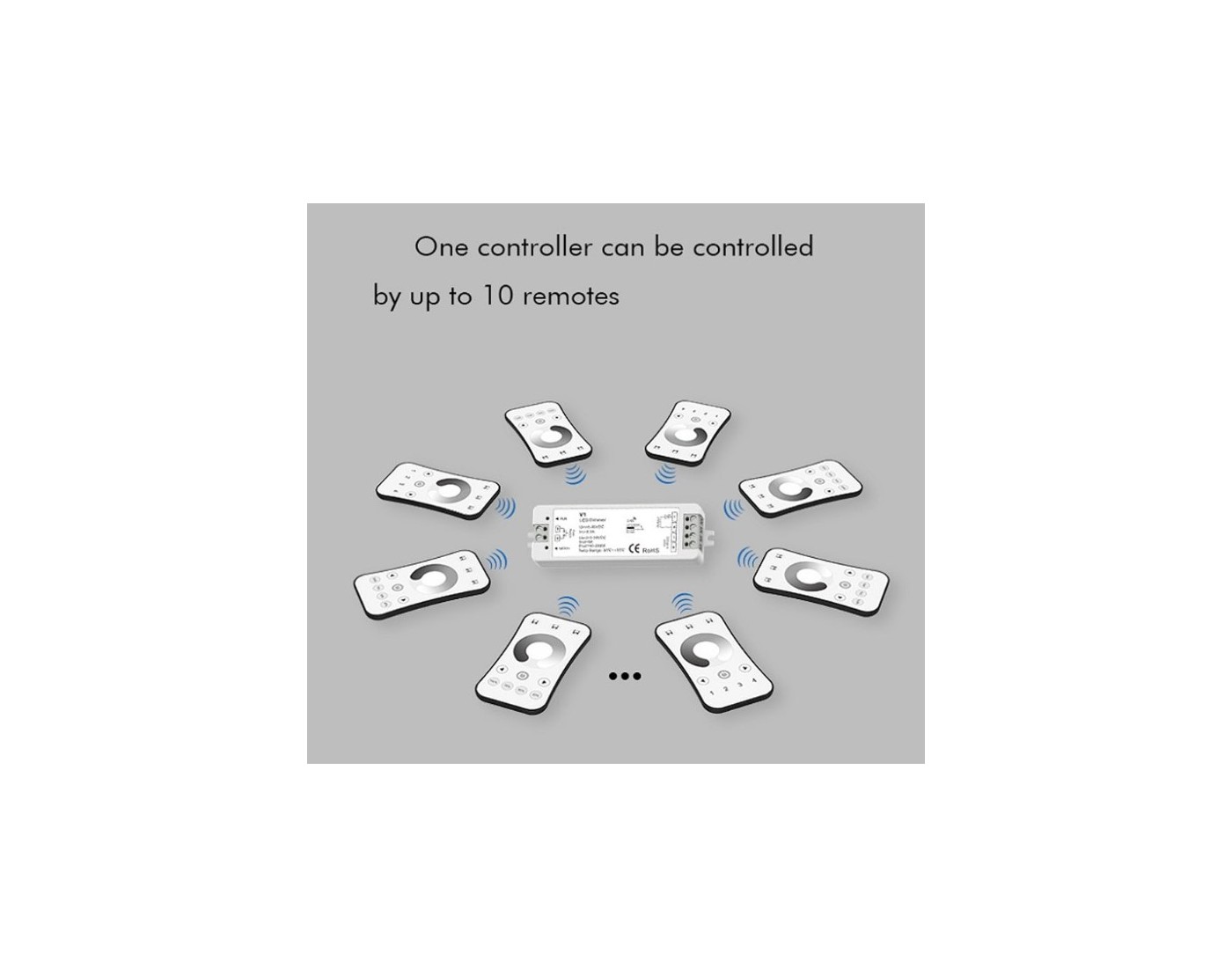

- This unite can be paired with up to 10 RF remotes (handheld, wall, smart mobile remotes)
- 12V max 75Watts - 3 x 2.08A
- Auto transmit function
- BUILT IN ANIMATIONS - DYNAMIC MODES
- Overheat protection
- Short circuit protection
SIZIE: 166mm x 85mm x 32mm
How to match with remote controller:
Switch off the power, then switch on power again, immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 3 times on the remote. The light blinks 3 times meaning the dimmable led driver is successfully paired with the remote controller/wall switch.
How to delete matched remote controllers:
Switch off the power, then switch on power again, immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 5 times on the remote. The light blinks 5 times which means that all matched remote controllers are deleted from the dimmer
