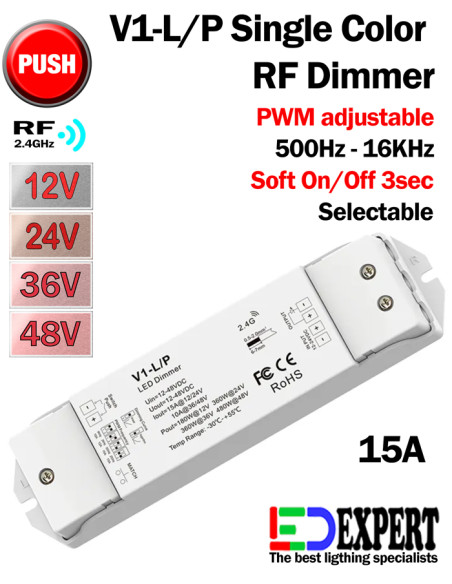

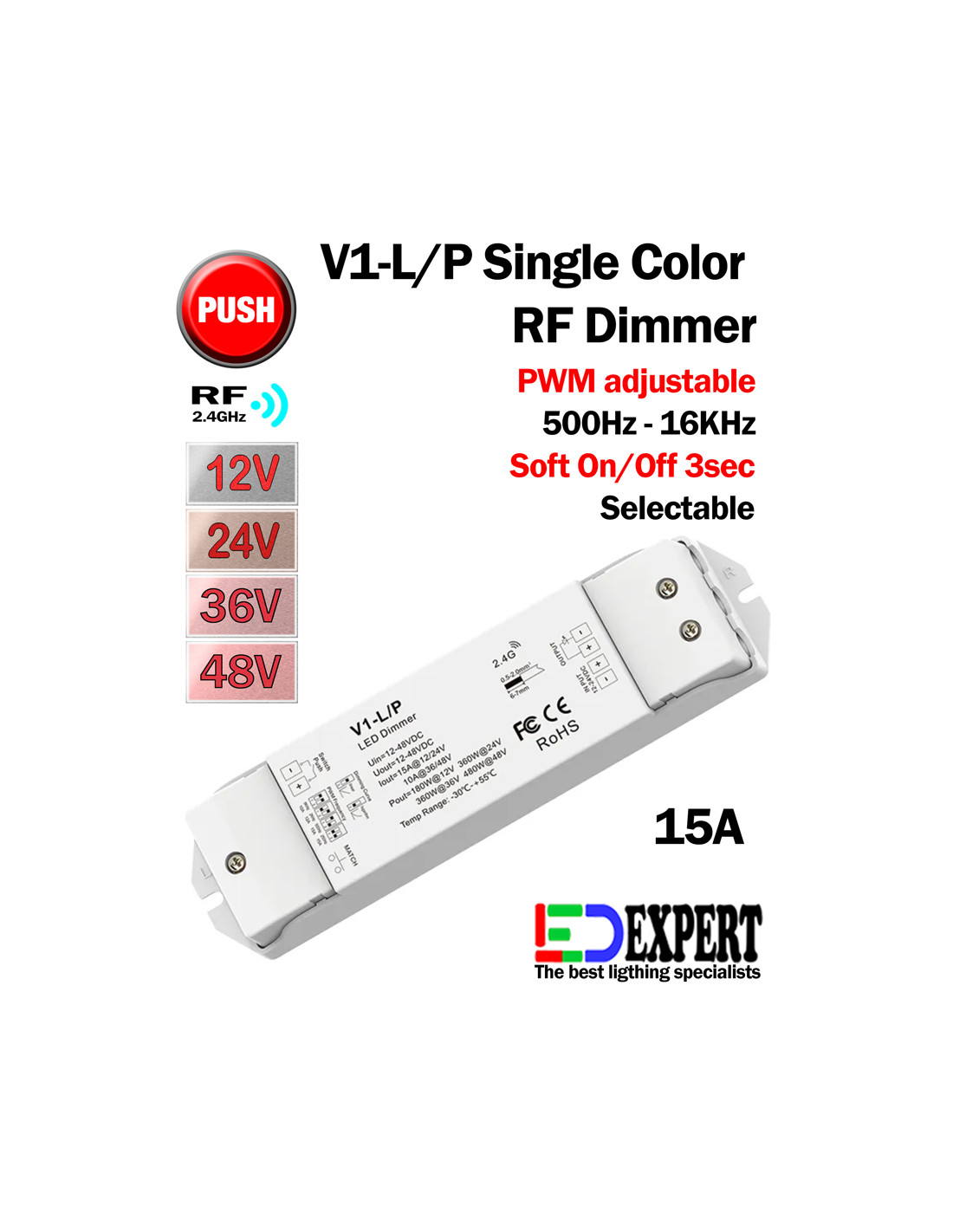

15A - Single Color RF / PUSH button Dimmer 12-48V - V1-L/P

● 4096 levels 0-100% dimming smoothly without any ash.

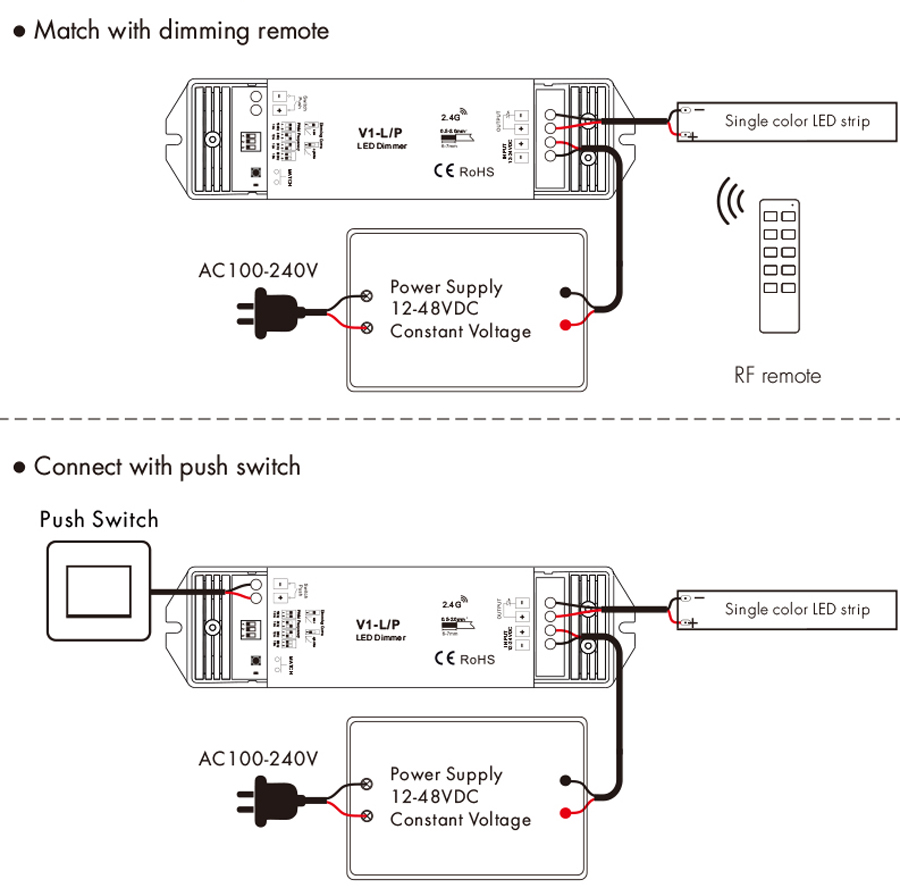

● Match with RF 2.4G single zone or multiple zone dimming remote control.

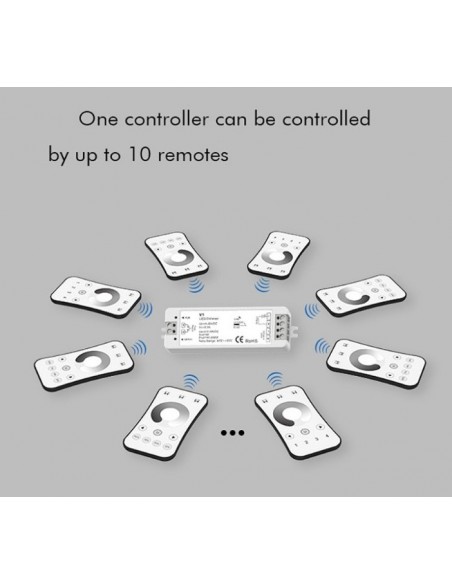

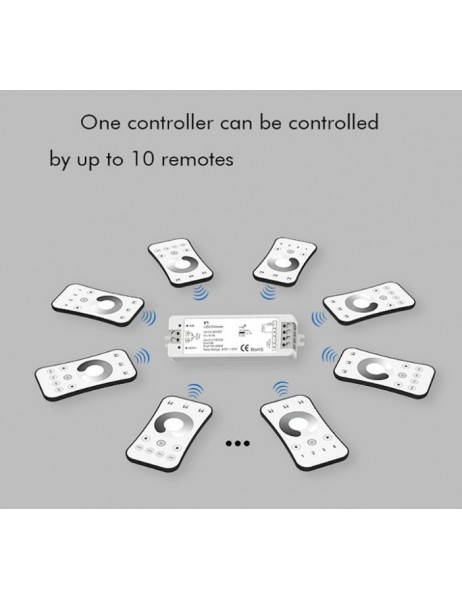

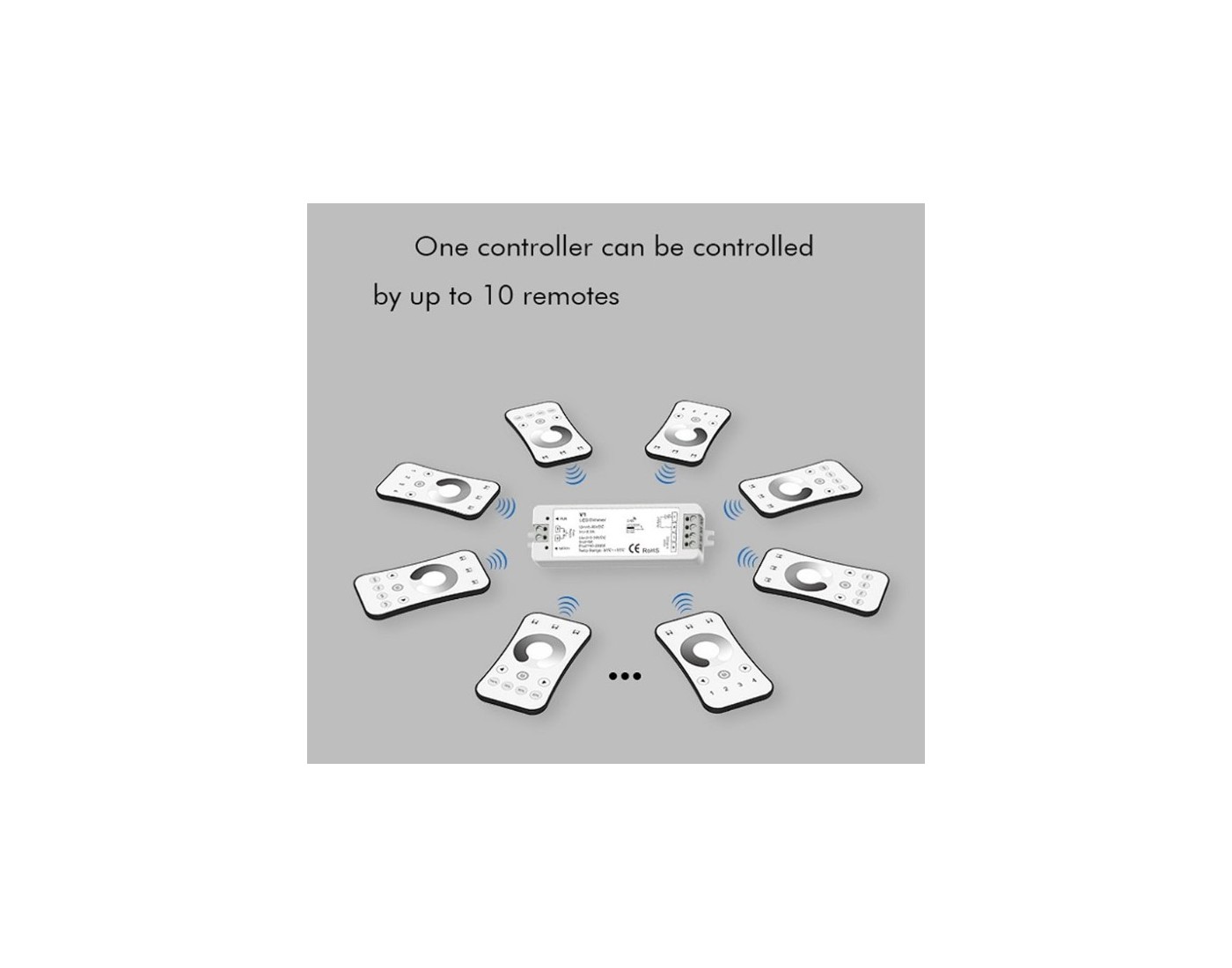

● One RF controller accept up to 10 remote control.

● Auto-transmitting function: Controller automatically transmit signal to another controller with 30m control distance.

● Synchronize on multiple number of controllers.

● Connect with external push switch to achieve on/off and 0-100% dimming function.

● Logarithmic or linear dimming curve selectable.

● PWM frequency 500Hz, 2kHz, 8kHz or 16kHz selectable.

● Over-heat / Over-load / Short circuit protection, recover automatically.

● Light on/off fade time 3s selectable.

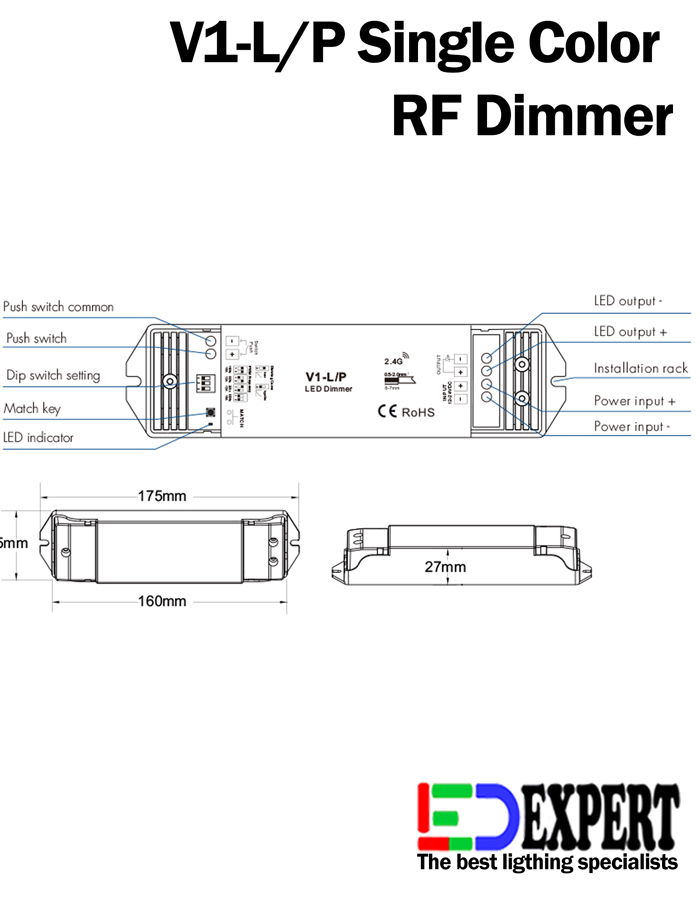

V1-L/P
