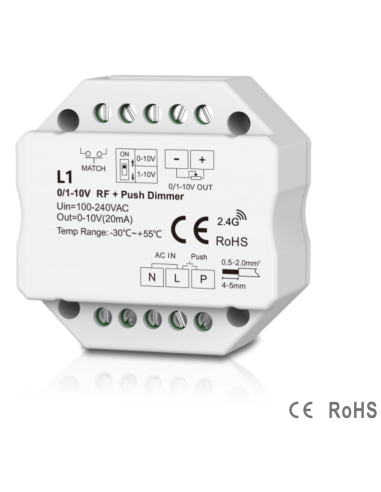

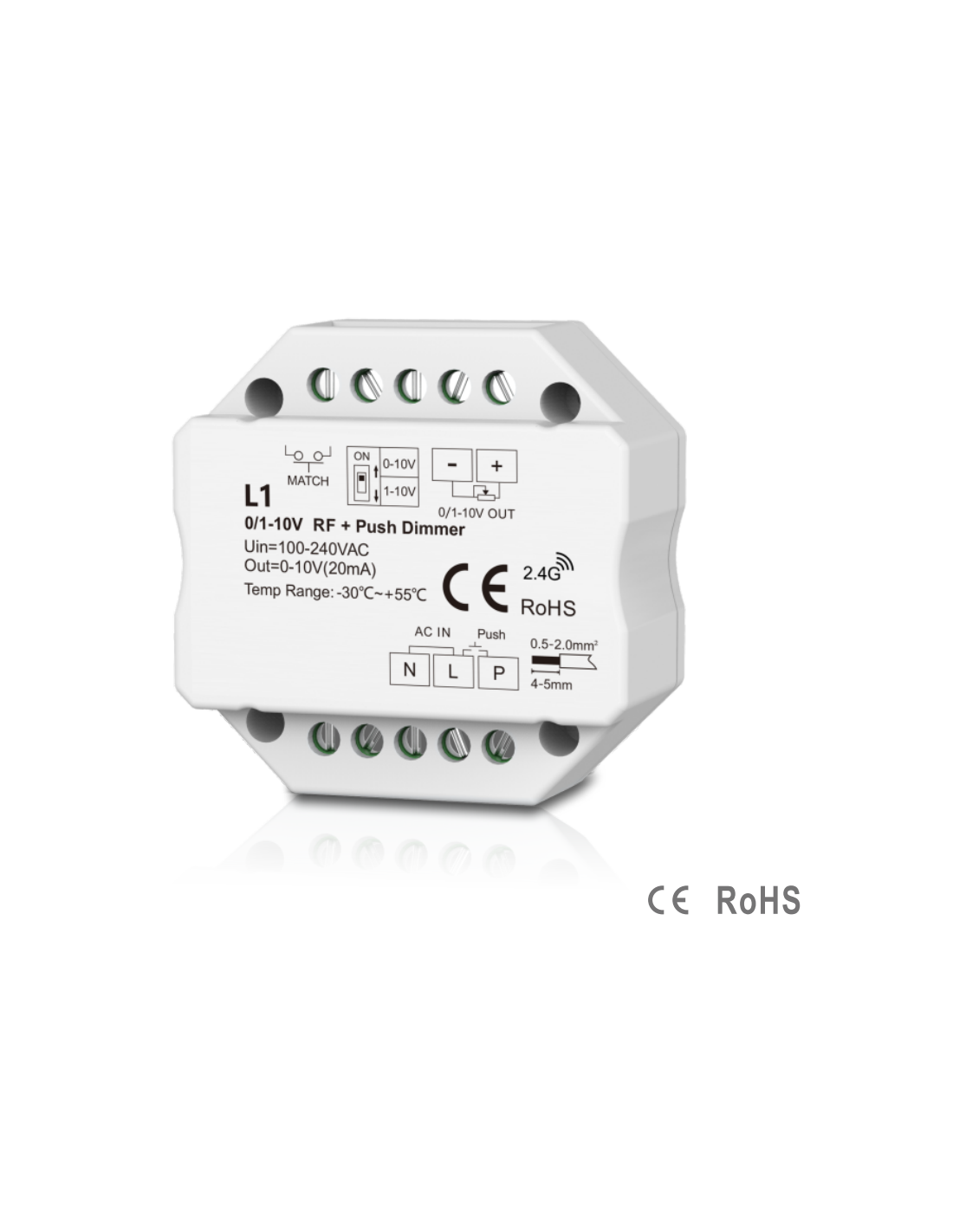

0/1-10V Dimmer with RF or Push button signal

0/1-10V/ RF and Push button dimmer - L1

• 0/1-10V RF or AC push dimmer, 1 channel output.
• Output 1 channel 0/1-10V signal, connect with 0/1-10V dimmable driver.
• 0-10V or 1-10V output selectable by DIP switch.
• Max wire length - 50m.
• Max number of dimmers/dimmable drivers - 50 pieces
• 256 levels 0-100% dimming smoothly without any ash.
• Compatibility with RF 2.4G single zone or multiple zone dimming remote control
• Connect with external push switch to achieve on/off and 0-100% dimming function.
• Easy to be placed in standard wall junction box behind a push switch
