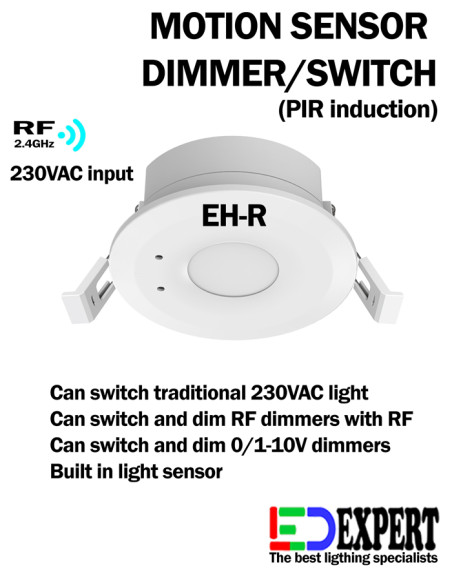

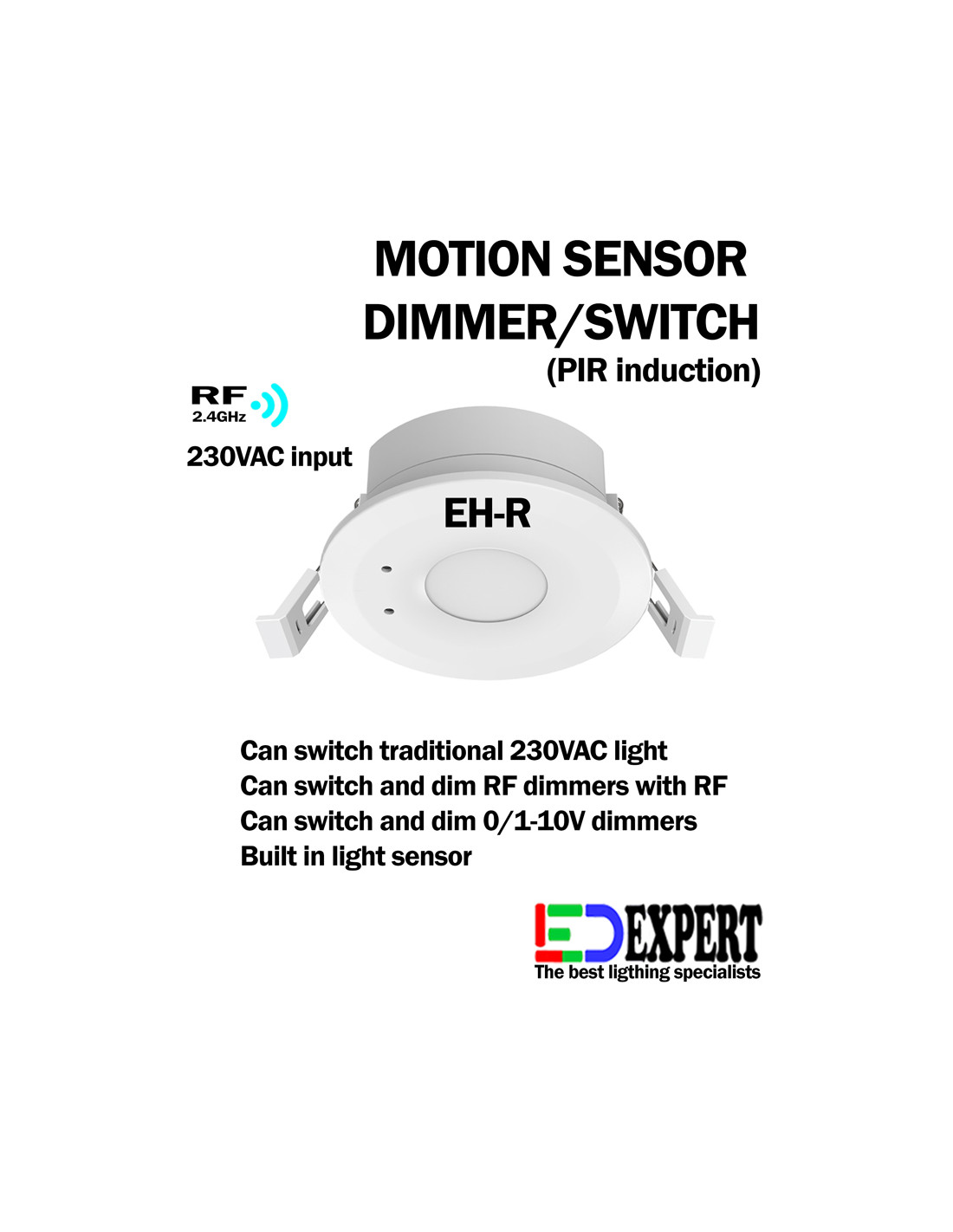

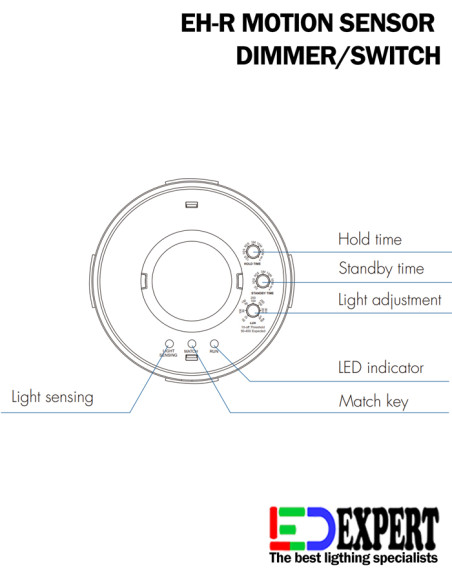

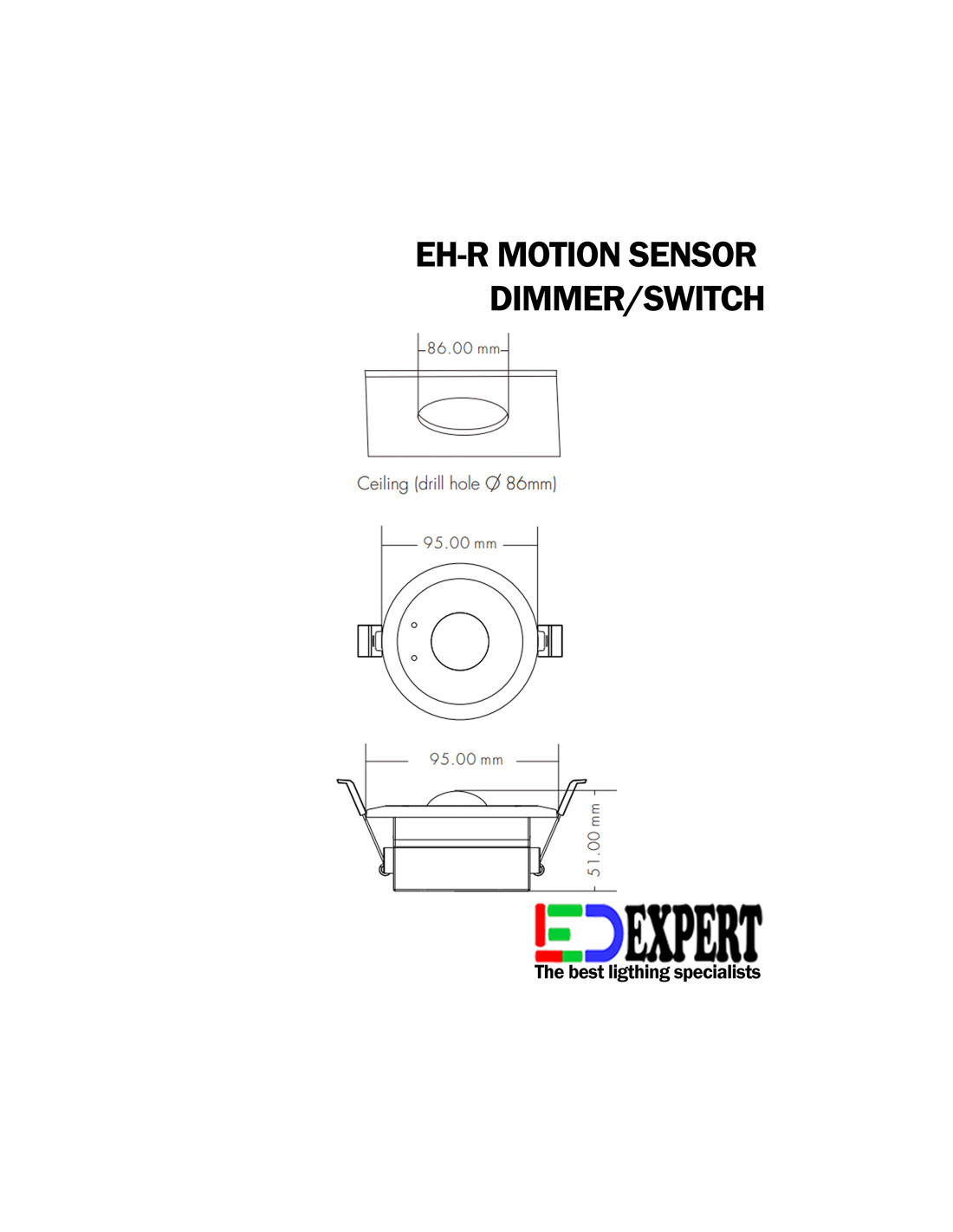

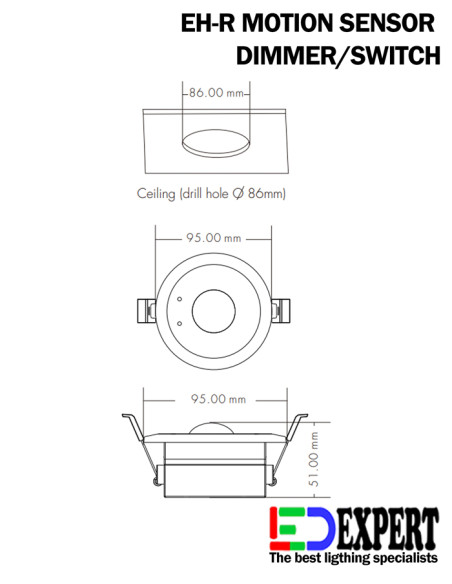

Ceiling mounting PIR motion detectors wiht built in daylight sensor

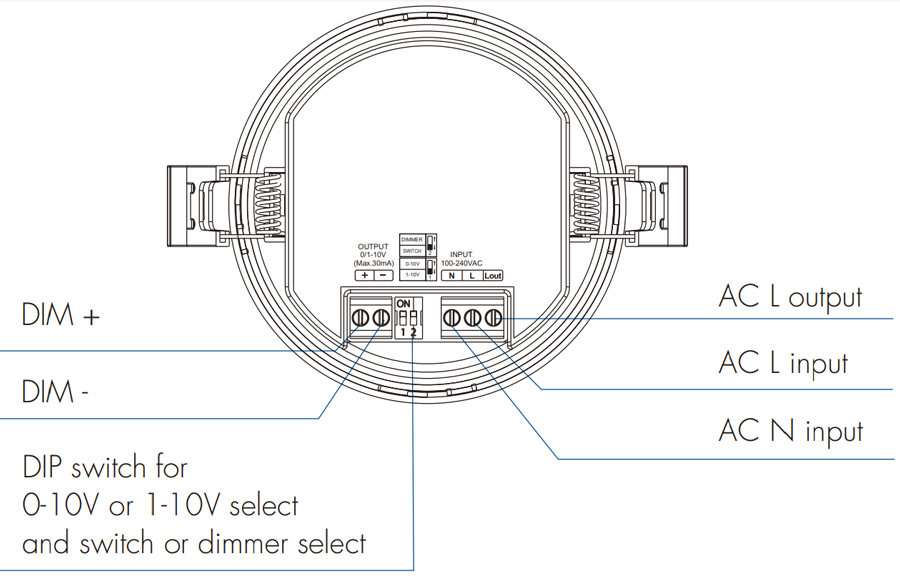

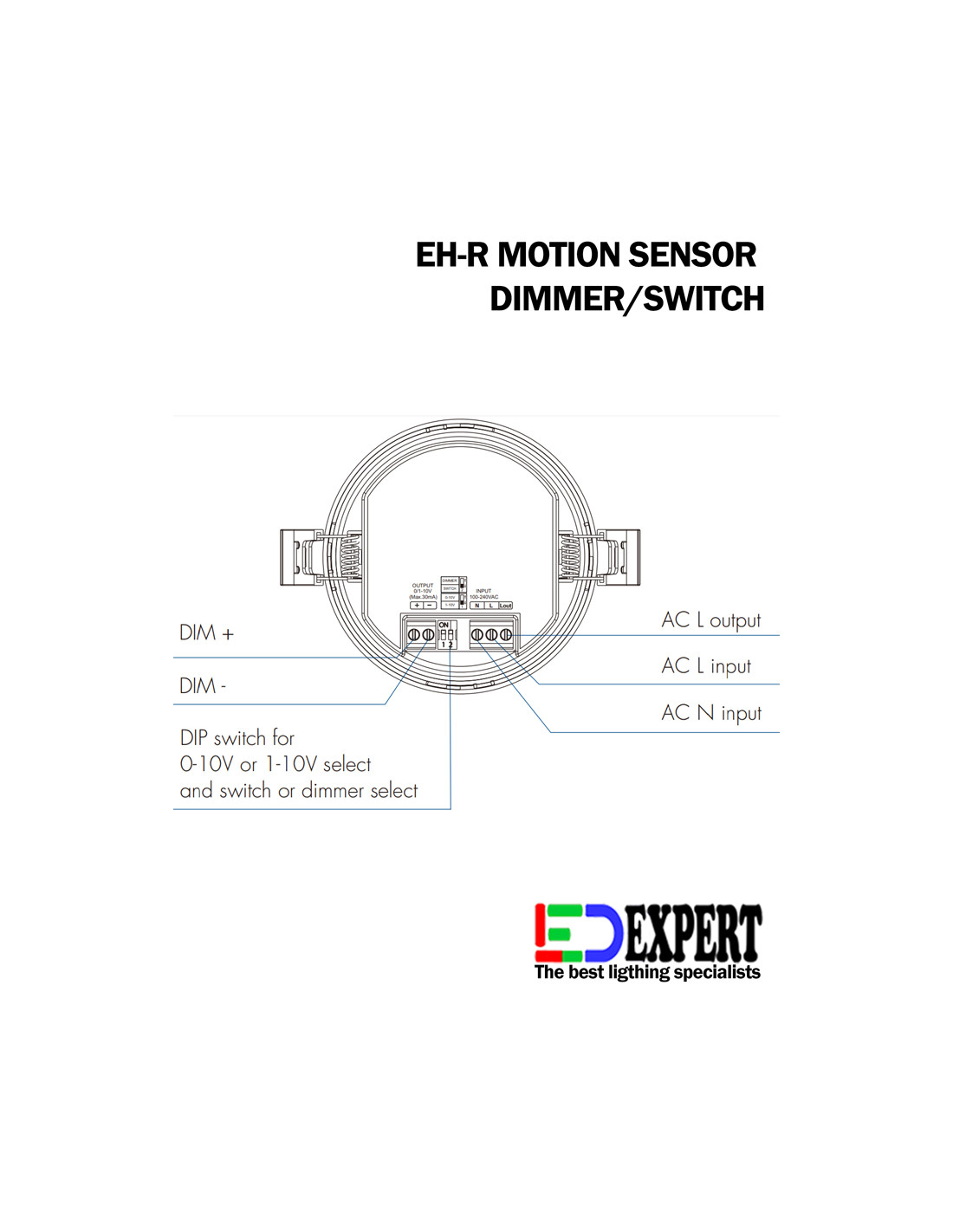

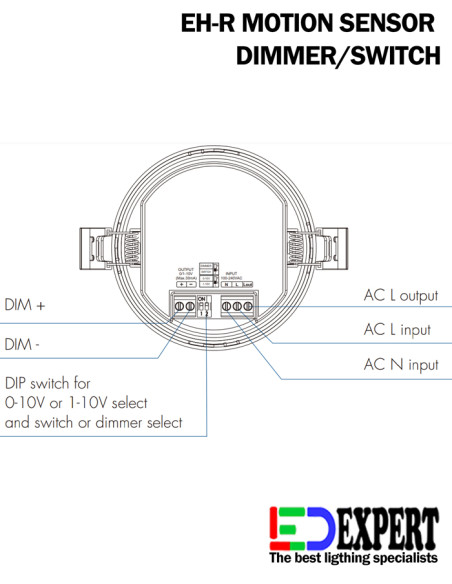

OUTPUT
- for 0/1-10V (can be used with 0-10V or 1-10V dimmers and dimmable drivers)
- RF Remote Controller Signal (can be matched with single color dimmers for dimming and switching and RGB, CCT, RGBW dimmers for switching only)
- High voltage AC230 relay output (Can switch up to 900Watts AC230 traditional lights)

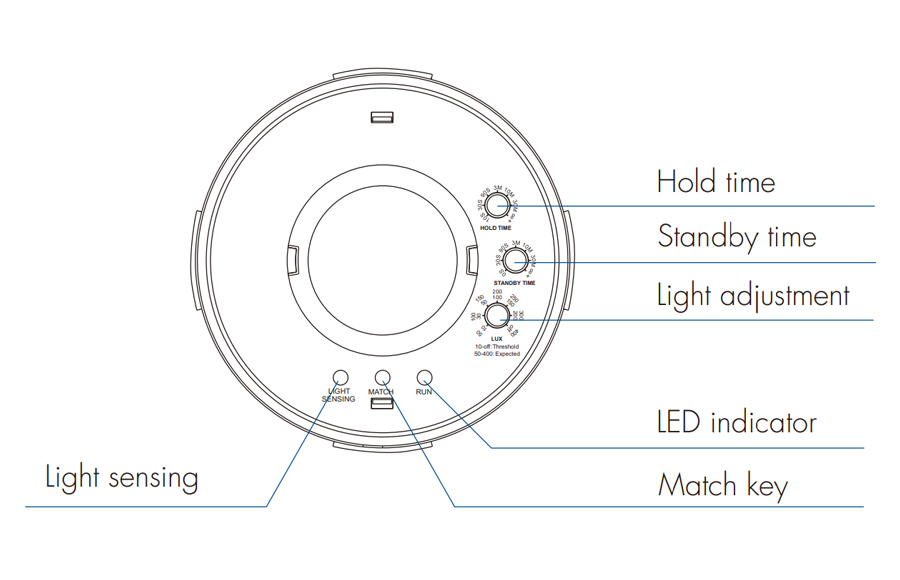

- Time delay can be setup
- Daylight threshold can be setup (in switch/switch and dimming mode)
- Target brightness can be setup (in dimming mode)
- Works with RF single color dimmer and dimmable drivers as dimmer and switch
- Works with RF CCT, RGB, RGBW and RGBCCT dimmer and dimmable drivers as switch
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

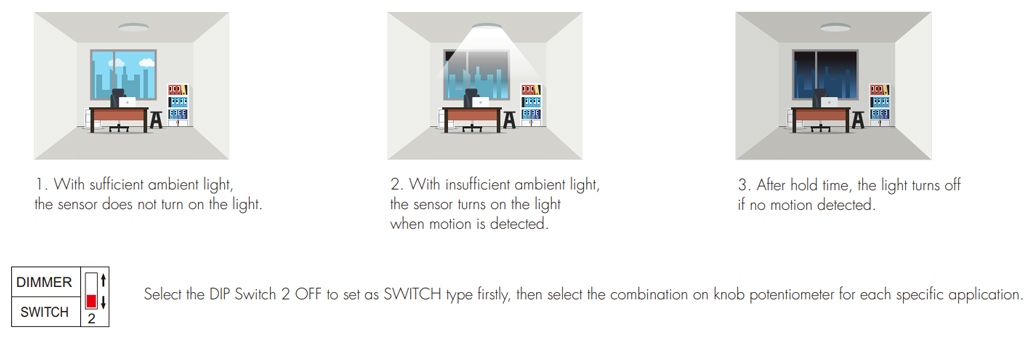

Typical Application 1 USED AS MOTION SENSOR SWITCH
Turns on the light upon detection of motion, and turns off after a pre-selected hold time when there is no movement.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Setting on this demonstration: Hold time: 90S Stand-by time: 0S Daylight sensor: 50lux
PLEASE NOTE:
When you are using the switching mode, the daylight sensor potentiometer is used to set the brightness threshold above which the motion detection functions.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

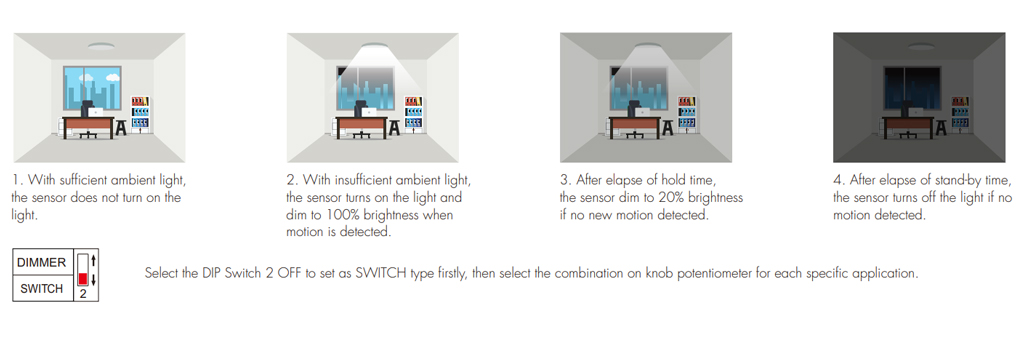

Typical Application 2 USED AS MOTION SENSOR SWITCH WITH 2 STEPS DIMMING
Turns on the light upon detection of motion, after a pre-selected hold time, dim to 20% brightness, and turns off after a pre-selected stand-by time when there is no movement.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Setting on this demonstration: Hold time: 90S Stand-by time: 3 mins Daylight sensor: 50lux
PLEASE NOTE:
When you are using the switching mode, the daylight sensor potentiometer is used to set the brightness threshold above which the motion detection functions.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Typical Application 2 USED AS MOTION SENSOR SWITCH WITH 2 STEPS DIMMING
Turns on the light upon detection of motion, after a pre-selected hold time, dim to 20% brightness, and turns off after a pre-selected stand-by time when there is no movement.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Setting on this demonstration: Hold time: 90S Stand-by time: 0 sec Daylight sensor: 150lux
PLEASE NOTE:

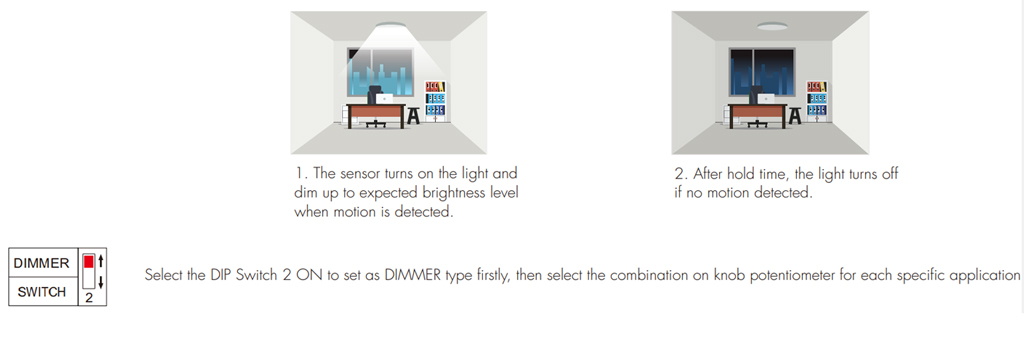

WHEN YOU ARE USING THE DIMMER MODE, THE DAYLIGH SENSOR POTENTIOMETER IS USED TO SET THE TARGET BRIGTHNESS LEVEL
