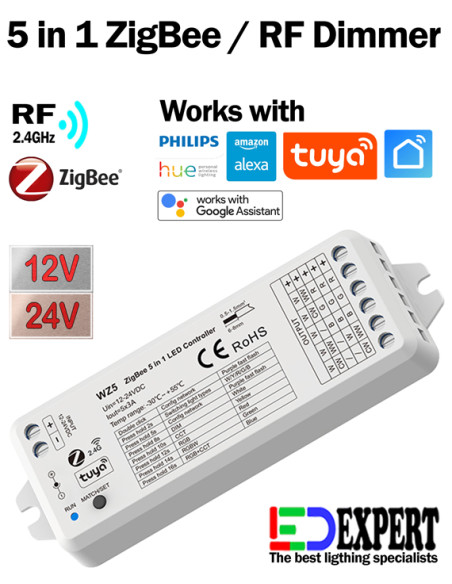

WZ5 ZIGBEE RF DIMMER TUYA AMAZON

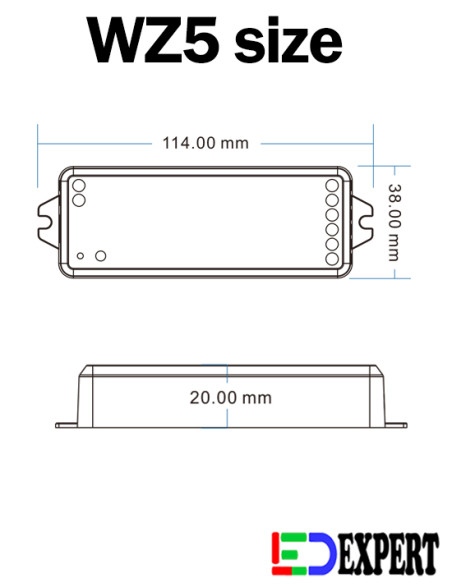

wz-5 dimensions

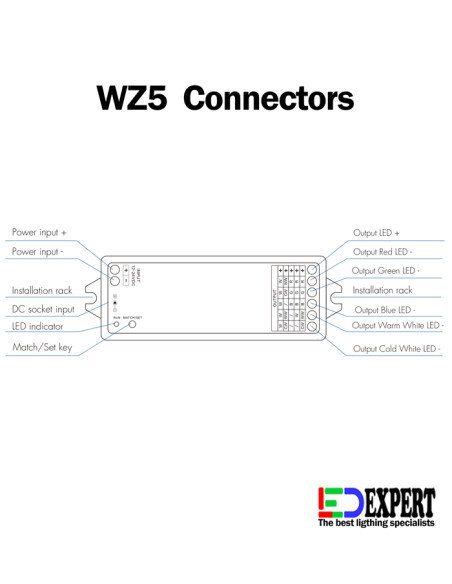

WZ5 CONNECTORS
ZigBee/RF 5 in 1 LED DIMMER 12-24V WZ5 - Tuya,...
WZ5 ZIGBEE RF DIMMER TUYA AMAZON
wz-5 dimensions
WZ5 CONNECTORS
ZigBee/RF 5 in 1 LED DIMMER 12-24V WZ5 - Tuya, Philips Hue, Alexa

ZigBee/RF 5 in 1 LED DIMMER 12-24V WZ5 - Tuya, Philips Hue, Alexa

5 in 1 function, controls RGB, RGBW, RGB+CCT, color temperature or single color LED strip from SKYDANCE

  • Tuya APP Cloud Control
  • Voice control via Amazon Echo and Tmall Genie Smart Speaker.
  • Compatible with Philips Hue APP via connecting with Philips Hue bridge.
  • Support Pairing with RF 2.4G Remote Control (Optional).
  • If the 5x3A is not enough use repeater (contact us for free advise).
  • 1 KHz PWM frequency.



WZ5
In Stock
€25.00 (€25 + VAT)

(€16.90 Per unit)

Dispatched within 24 hours.

Description

  • Tuya APP Cloud Control: allows on/off, RGB Colours, CCT colour temperature and brightness control, in addition to, delay on/off, on/off fade time, timer, scene edit and music functions.
  • Voice control via Amazon Echo and Tmall Genie Smart Speaker.
  • Compatible with Philips Hue APP via connecting with Philips Hue bridge.
  • Support Pairing with RF 2.4G Remote Control (Optional).
  • Each WZ5 Controller can also be used as Zigbee-RF Converter, allowing the Tuya APP to control multiple controllers at once or individually.
  • User needs to set light type by pressing the button on the controller and pair it with the remote/ control panel before the Tuya APP network connection.
  • If the 5x3A is not enough use repeater (contact us for free advise).
  • 1 KHz PWM frequency.


WZ series functions

Philips Hue compatibility WZ5

RF CONTROLLING

Amazon Alexa Controlling

Timer and Schedule Function

Zigbee-rf converter


Product Details

Color
Color Temp Adjustable
RGB
RGB + CCT
RGBW
Single color
CHANNELS
5
Amp / Channel
3A
PREMIUM - SKYDANCE
Yes
RF 2.4GHz
YES
ZIGBEE
YES
WIFI
YES with TUYA ZIGBEE/WIFI Gateway Module
