- 230 VAC Power supply and TRIAC dimmable LED controller and push button led controller in 1 unit for single color LED strips
- You Do not need separate separate dimmer and power supply!
- Can be used with TRIAC dimmer and with push button (see below)
- Apply to leading edge/trailing edge Triac dimmers and dimming system
- Constant voltage LED driver
- 24V max 75Watts - 1 x 6.25A
- 5 Years warranty
- MAIN ADVANTAGE TO OTHER TRIAC DIMMABLE DRIVERS: THIS DRIVER WILL RESPONSE ACCORDING TO THE SIGNAL IRRESPECTIVE OF THE LOAD! IF YOU CONNECT 50W ONLY (WHICH IS 33% OF THE MAXIMAL LOAD), AND YOU WILL DIM DOWN 10% THE LED STRIP BRIGHTNESS WILL BE DIMMED DOWN AND WILL NOT BE WAITING UNTIL YOU REACH THE 30%!

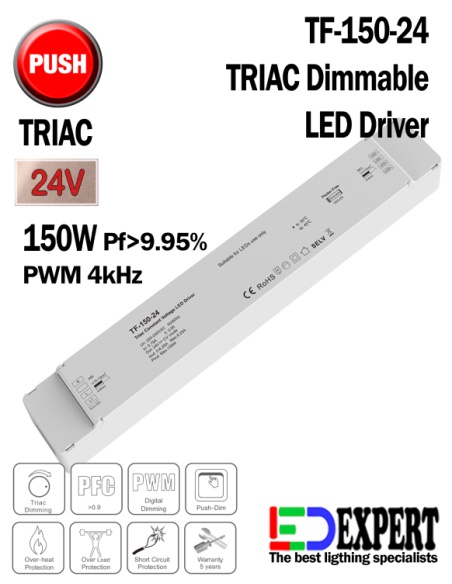

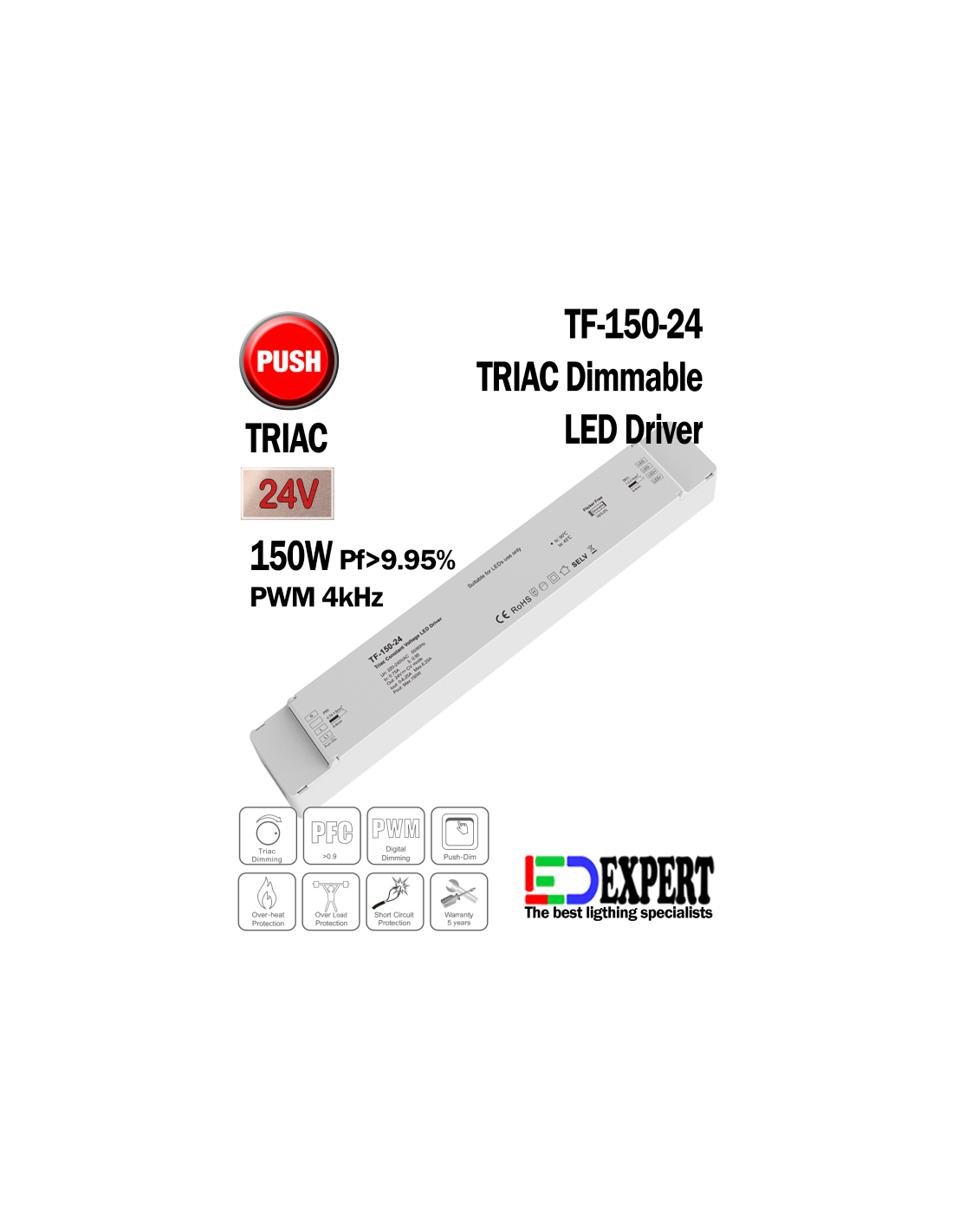

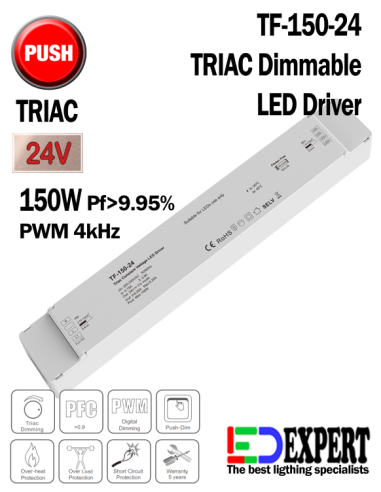

- 24V 150W TRIAC & Push Dim - SKYDANCE - DIMMABLE LED DRIVER/POWER SUPPLY - Single color
- Synchronization: If more than one LED driver are connected to the same push switch, do a long press for more than 10s, then the system is synchronized and all lights in the group dim up to 100%. This means there is no need for any additional synchrony wire in larger installations.
- We recommend the number of LED drivers connected to a push switch does not exceed 25 pieces
- The maximum length of the wires from push to LED driver should be no more than 20 meters
Triac dimming and PUSH dimming cannot be used at the same time

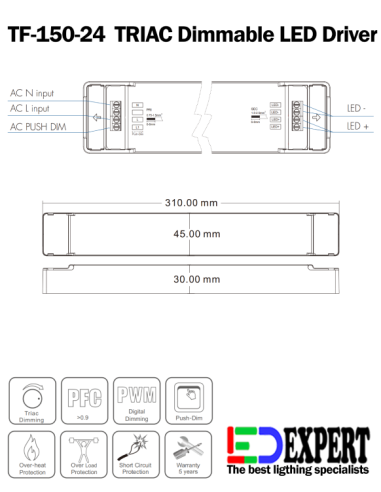

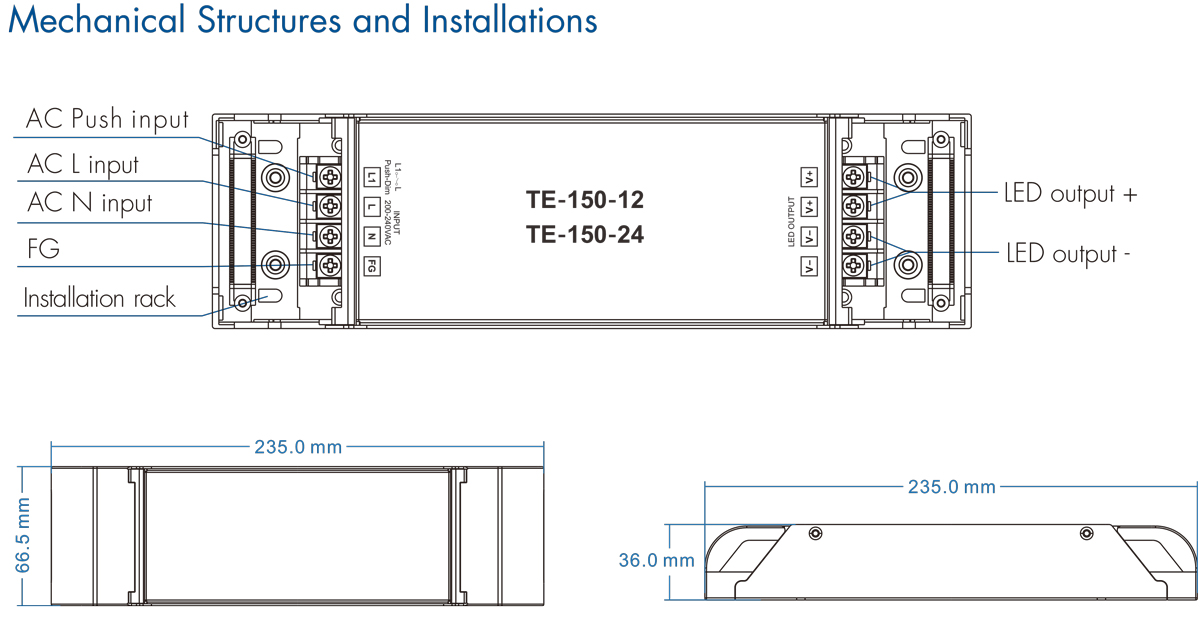

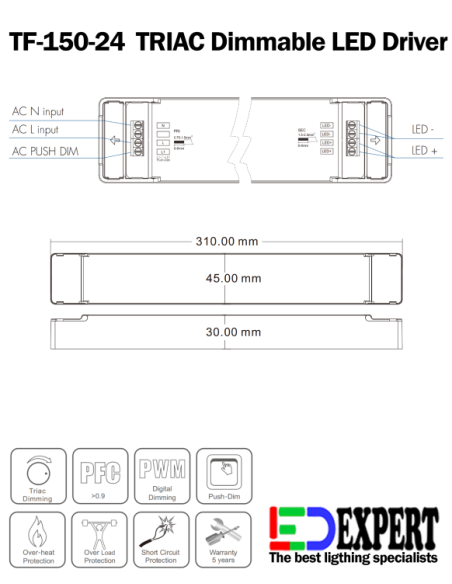

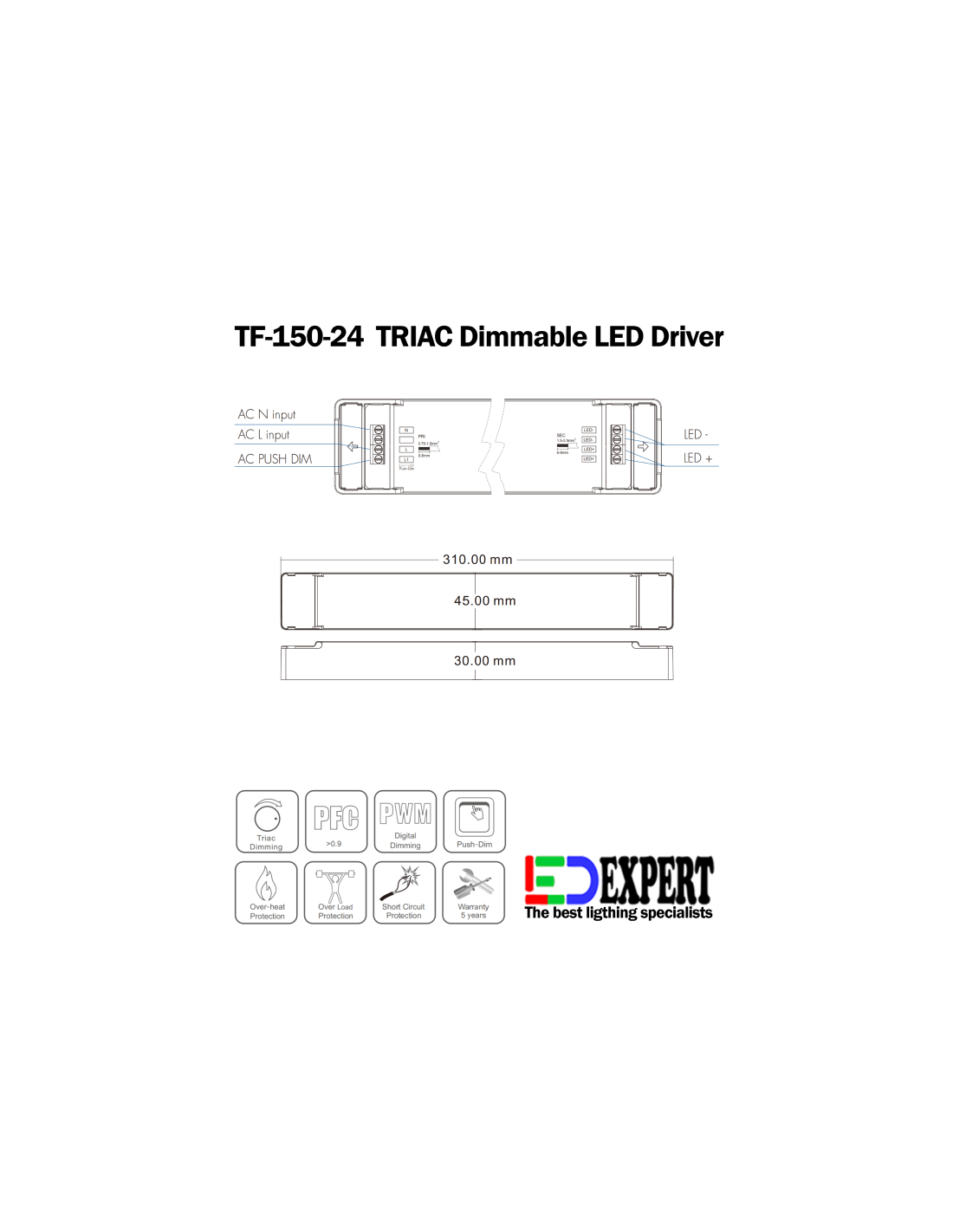

THE WIRING DIAGRAM IS THE SAME AS TE-150-24:

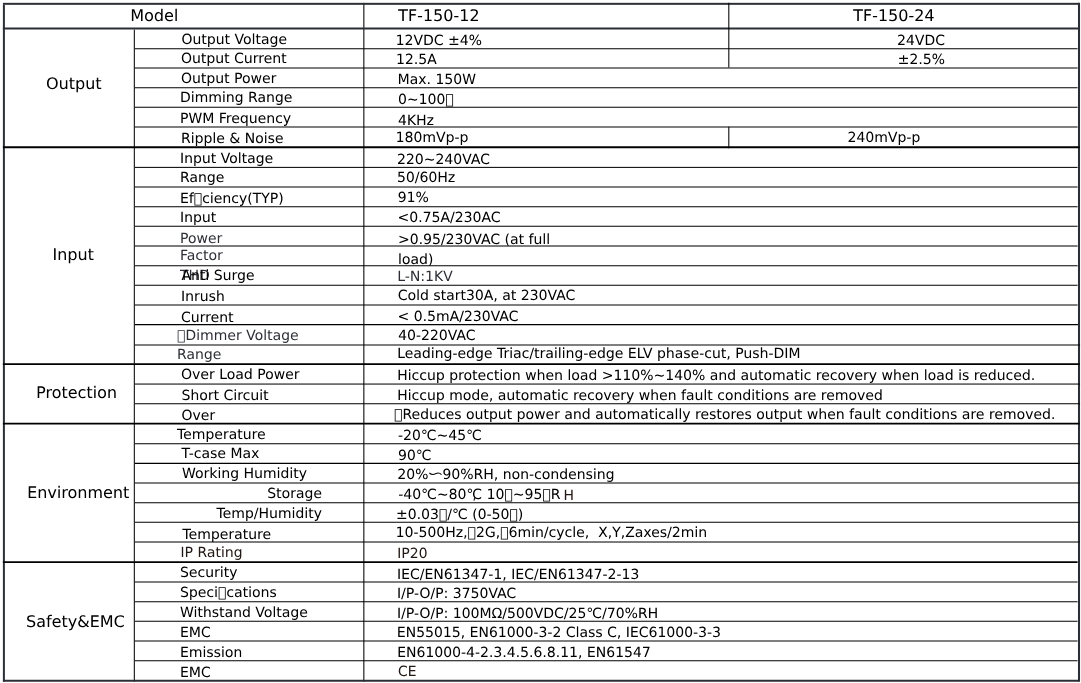

Specification:
