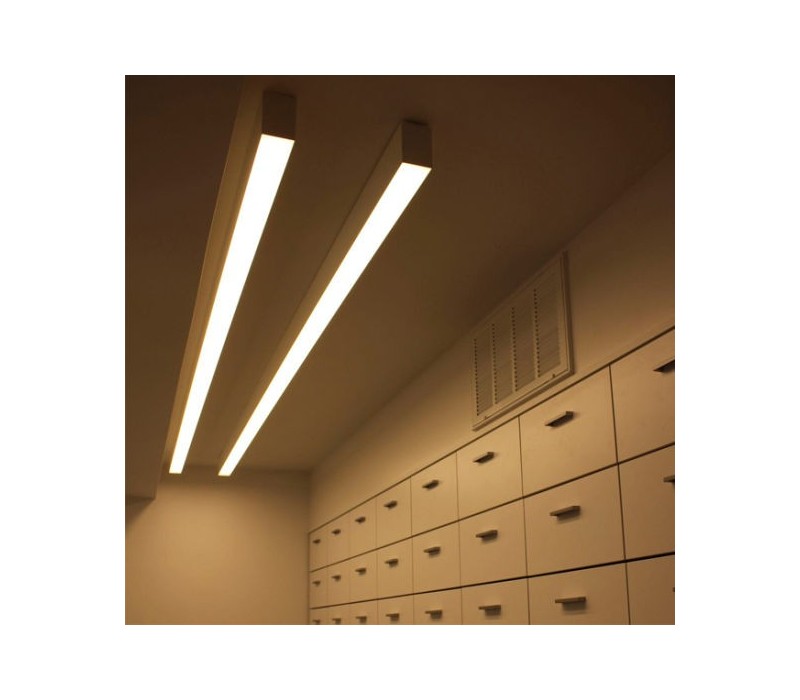

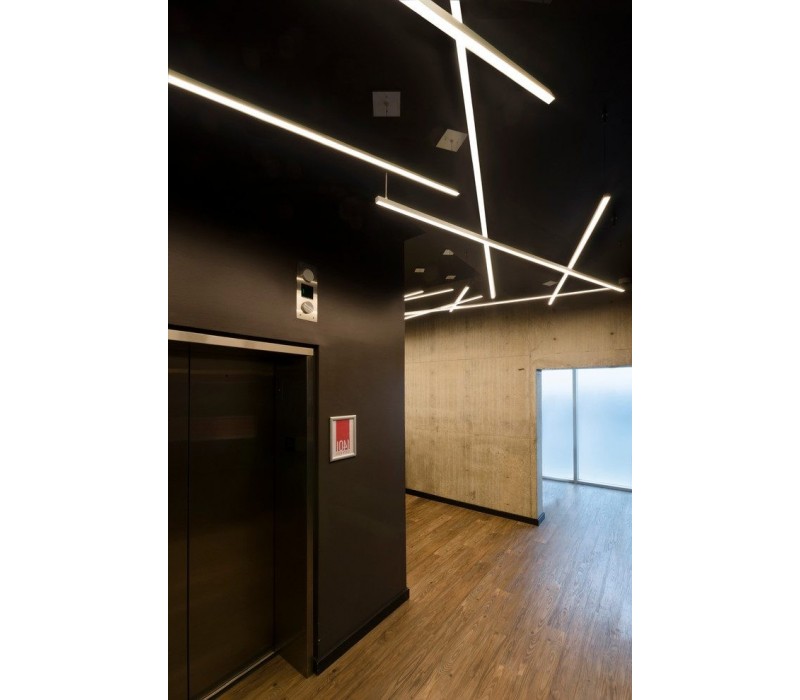

This profile is ideal for recessed, surface mounted and suspended linear led lighting.
|
Profile |

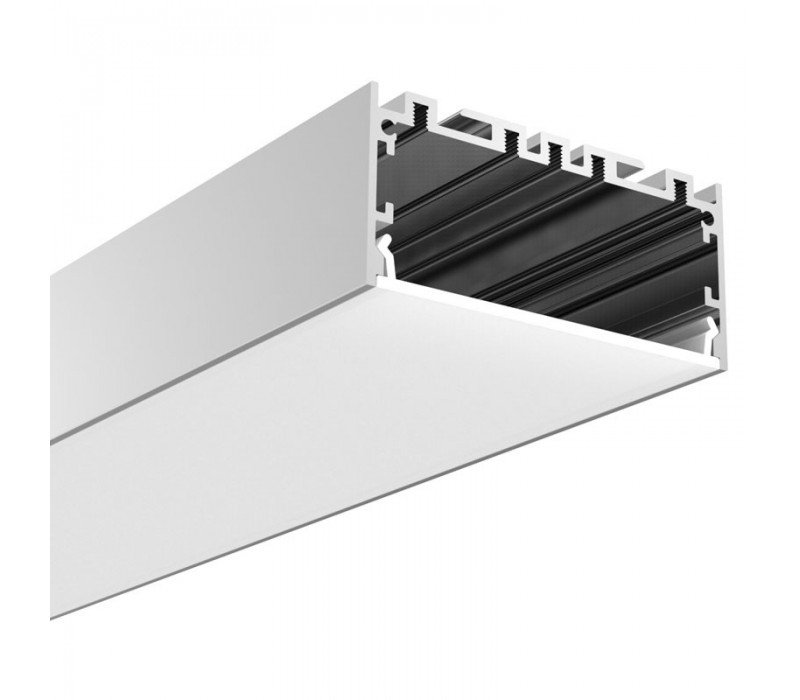

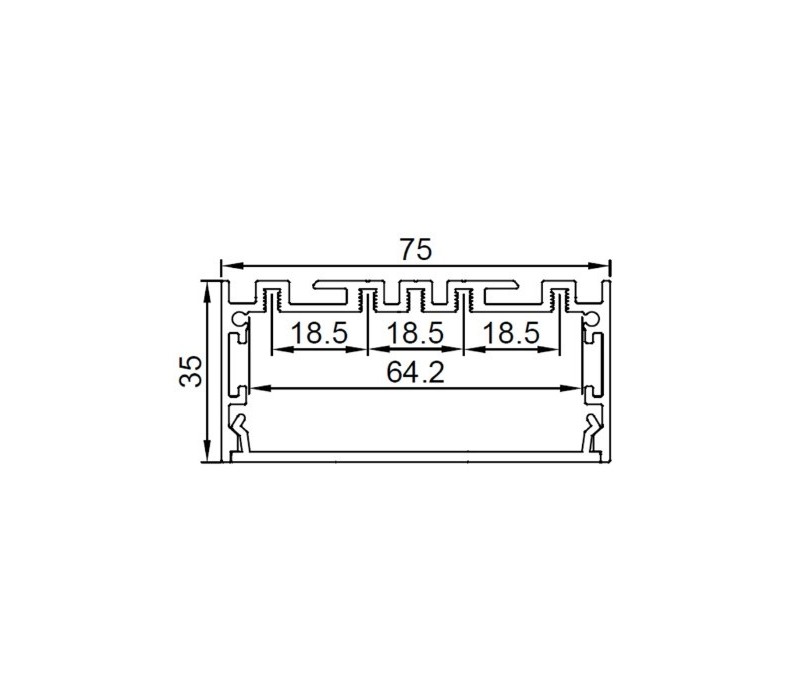

High, 75mm side, 35mm deep profile with no flange |
|
Cover |
PMMA diffuser - opal matte / semi-clear matte |
|
Length |
2.5m |
|
Accessories |

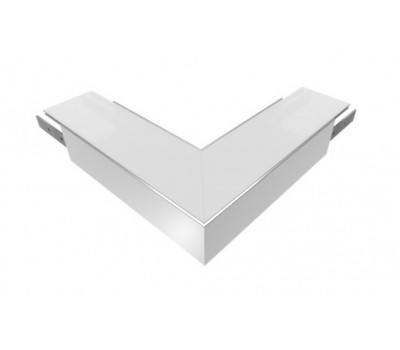

End caps and mounting clips |
|
LED |
Up to 3 12mm or less wide LED light strips - sold separately |
*NOTE! The price refers only to aluminum profile! Led strips are ordered separately.
Application:

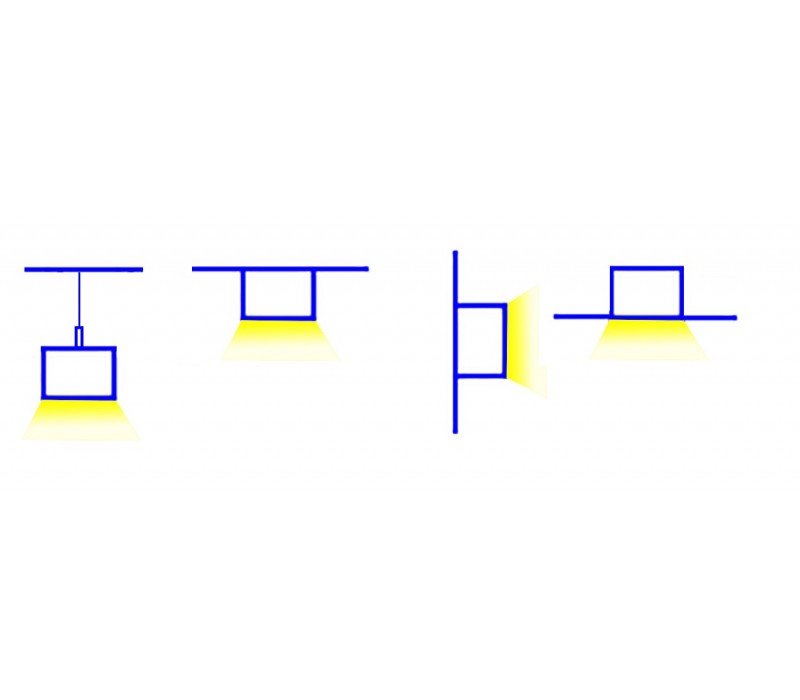

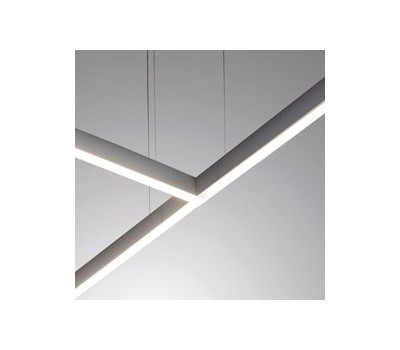

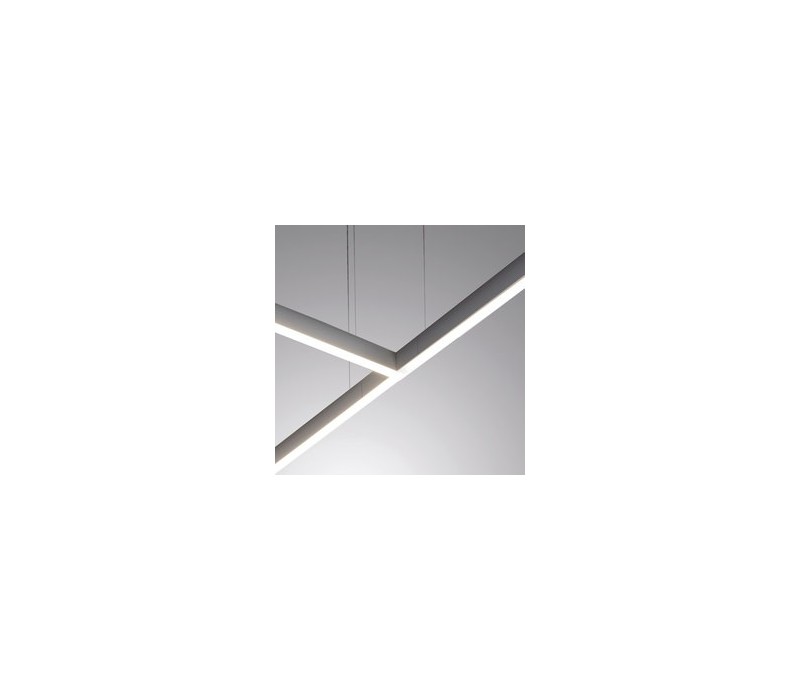

- Designed for recessed, suspended and surface mounting applications.

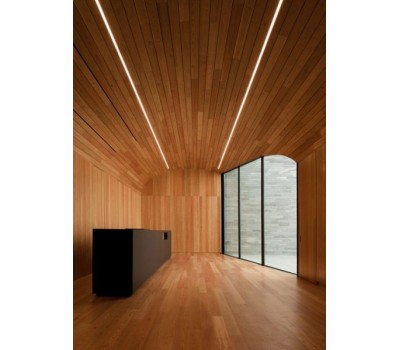

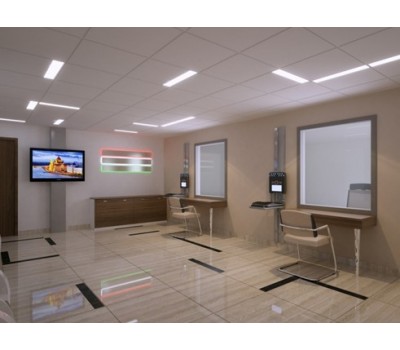

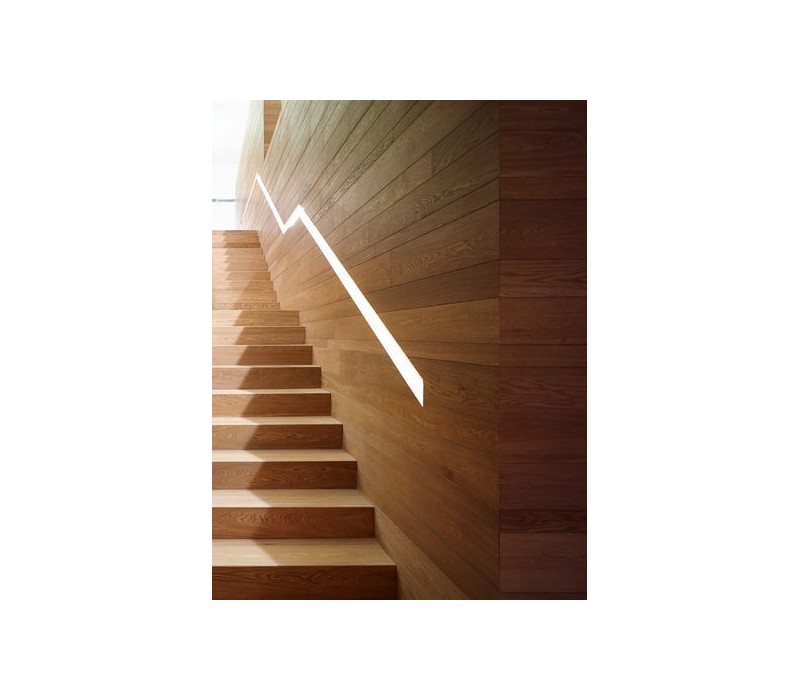

- Suitable to in ceiling and in wall linear lighting or on celling and on wall applications
Specifications :
- High quality UV resistant PMMA diffuser (does not yellow after time)
- Made from anodizing aluminum for better heat dissipation (protects the LED)
- Suitable for flexible as well as high power led bars
- For indoor use only
Important notes for selecting the diffuser and LED light source:
If the led strip luminous emittans without front plastic is 100% Lux, in a profile with semi-transparent cover decrease the light by 10%, in a profile with matt diffuser the loss is around 50%. So, matt diffusers provide more even light, but also decreased intensity. In practice, given the wide range of strong LED strips it does not cause any problem.
An LED profile is not just for design; it is a Heat sink and physical protection to LEDs!!! Without cooling the LED lifespan will be dramatically decreased.
