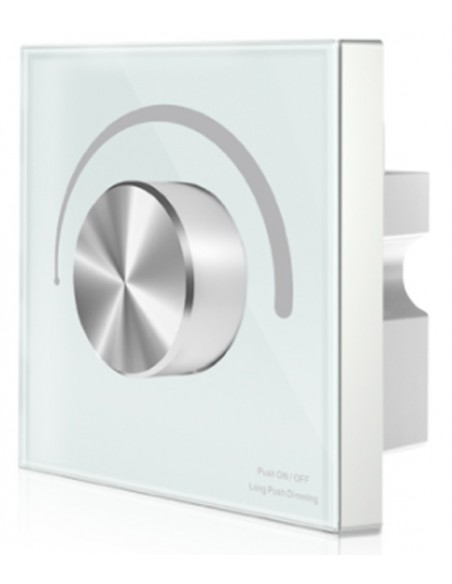

State of art AC Input Rotary 0-10V/RF Wall Switch with AC relay output
- Push on and off the rotary knob - switch on and off the AC relay output (up to 340W)
- Generate 0/1-10V signal with the rotary knob
- Transmit RF signal to other FR dimmers
- Receive RF signal from RF Remote controller
- Advantage: switch on/off the LED driver using a relay. The driver is used when the light is on only!
- Advantage: switch on/off traditional light up to 340W (or above 340W using AC relay)
- 5 Years warranty
---------------------------------------------------------------------------------------------------------------------------------------
The T18-2 Rotary wall dimmer can control 0-10V Dimmer, RF dimmers and switch on/off traditional

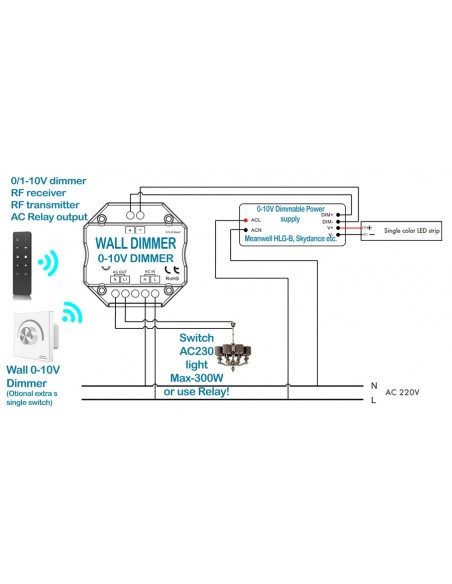

APPLICATION - SWITCHIGN AC LIGHT WITHOUT DIMMING + DIMMING ANY LIGHT THROUGH 0-10V DIMMER
---------------------------------------------------------------------------------------------------------------------------------------

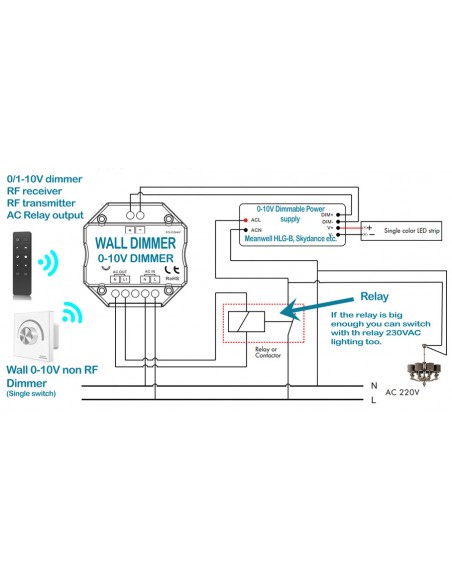

The T18-2 Rotary wall dimmer can switch OFF the 0-10 Driver when it is not in use by pushing the
rotary button using a relay. It saves the standby power and also extends the driver`s lifespan.
In Addition traditional light can also be used.
