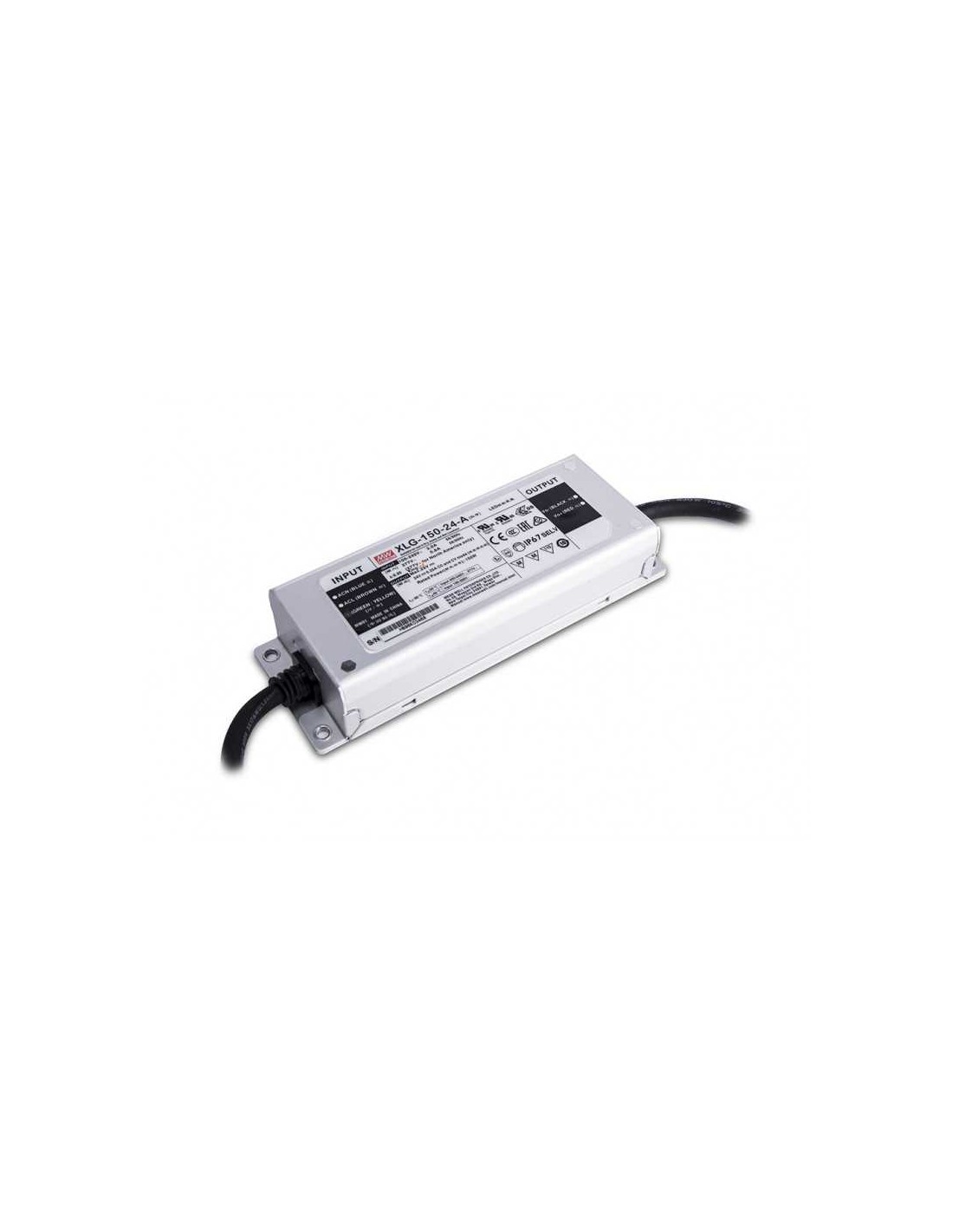

MEAN WELL XLG-100-12-A POWER SUPPLY - CV / CP - IP67

Mean Well XLG-100-12-A - 96Watts Constant Voltage / Constant Power (automatic between the two functions) 12V LED Power Supply - Active PFC

This power supply is a 96W AC/DC LED driver operates  100-305 VAC and offers DC 12 Volt. Thanks to the high efficiency up to 92%, with the fanless design, the entire series is able to operate for -40°C +90°C° case temperature under free air convection. The design of metal housing and  IP67 ingress protection level allows this model both indoor and outdoor applications. Dimmer can be used between the LED strip and this power supply.

XLG-100-12-A
In Stock
€27.00 (€27 + VAT)
Dispatched within 24 hours.

Description

General Specification of XLG-100 Series

AC input voltage range 100~305VAC ; 127~431VDC
AC inrush current (max.) Cold start, 50A at 230VAC
No Load power consumption <0.5W
Current adjustment range 2.5-5A
Over current protection 95%~108%
Over voltage protection 13.5-18V - 12V series;  27-34V 24V series
Setup, rise, hold up time 500ms, 100ms (230V)
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -40~+90ºC (refer to output derating curve)
Safety standards See the datasheet
EMC standards See the datasheet
Connection Input UL rated, SJTW 18AWGx3C (30cm);
Dimension (LxWxH) (mm) 140 x 63 x 32 mm



Product Details

IP rating
IP67
Voltage
12V
Warranty
3 Years
Power
96 W
Dimming
Yes, dimmer can be used between the LED strip and Power supply
Housing
Metal
PFC
Built in Active PFC
