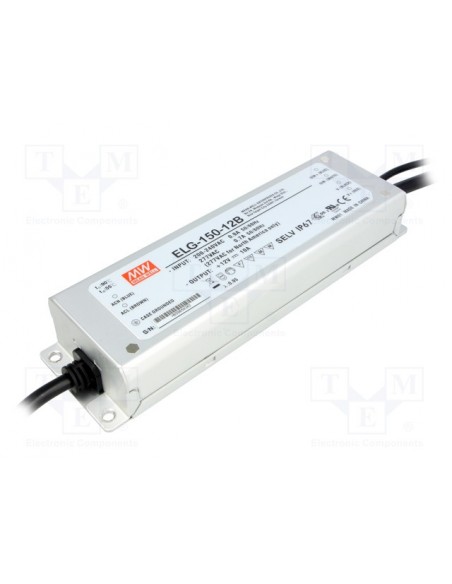

ELG-150-12B LED DRIVER LED EXPERT

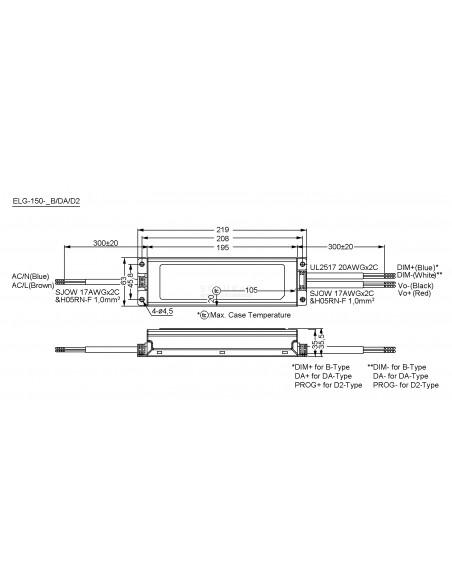

ELG-150 DIMENSIONS LED DRIVER

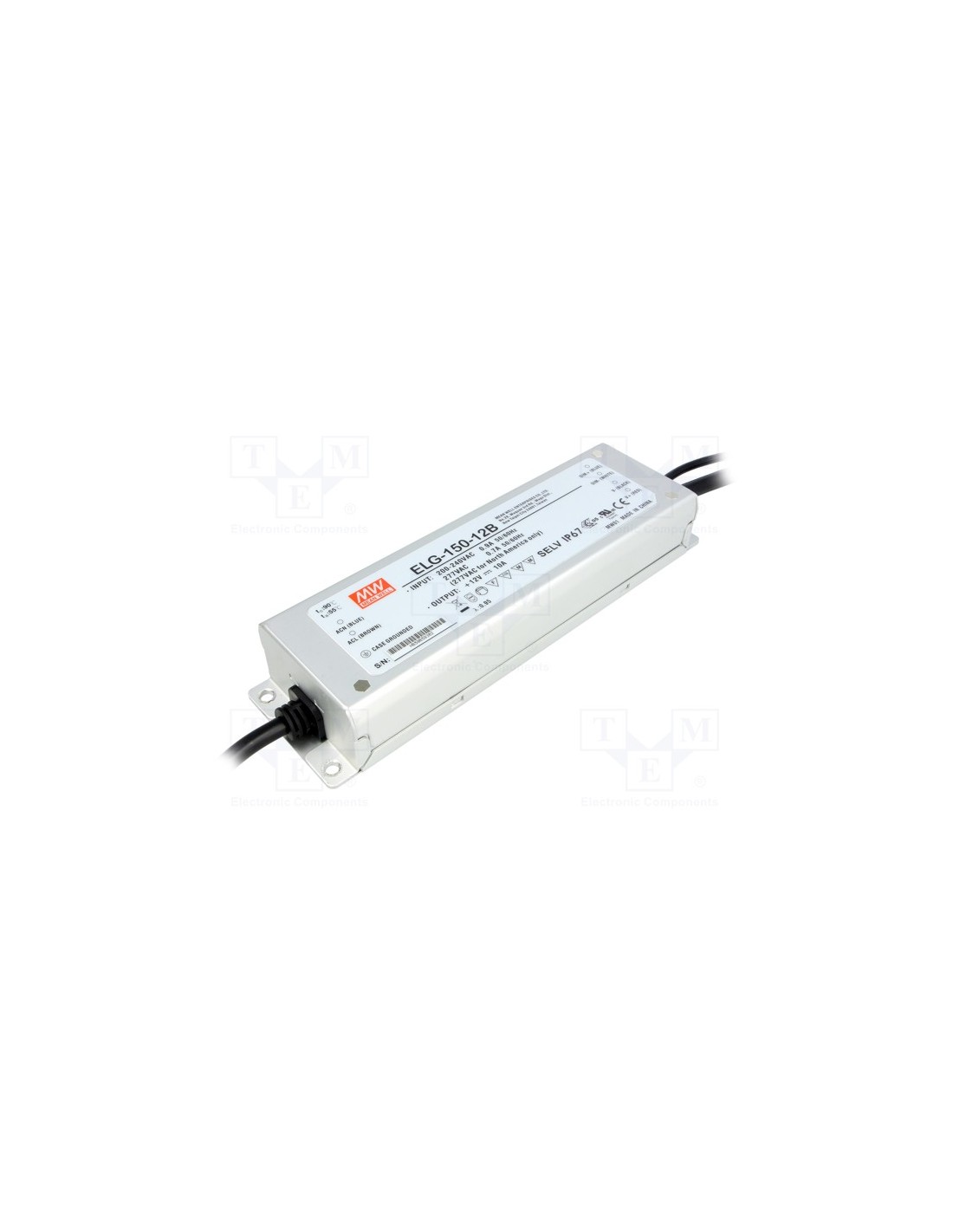

ELG-150-12B LED DRIVER LED EXPERT

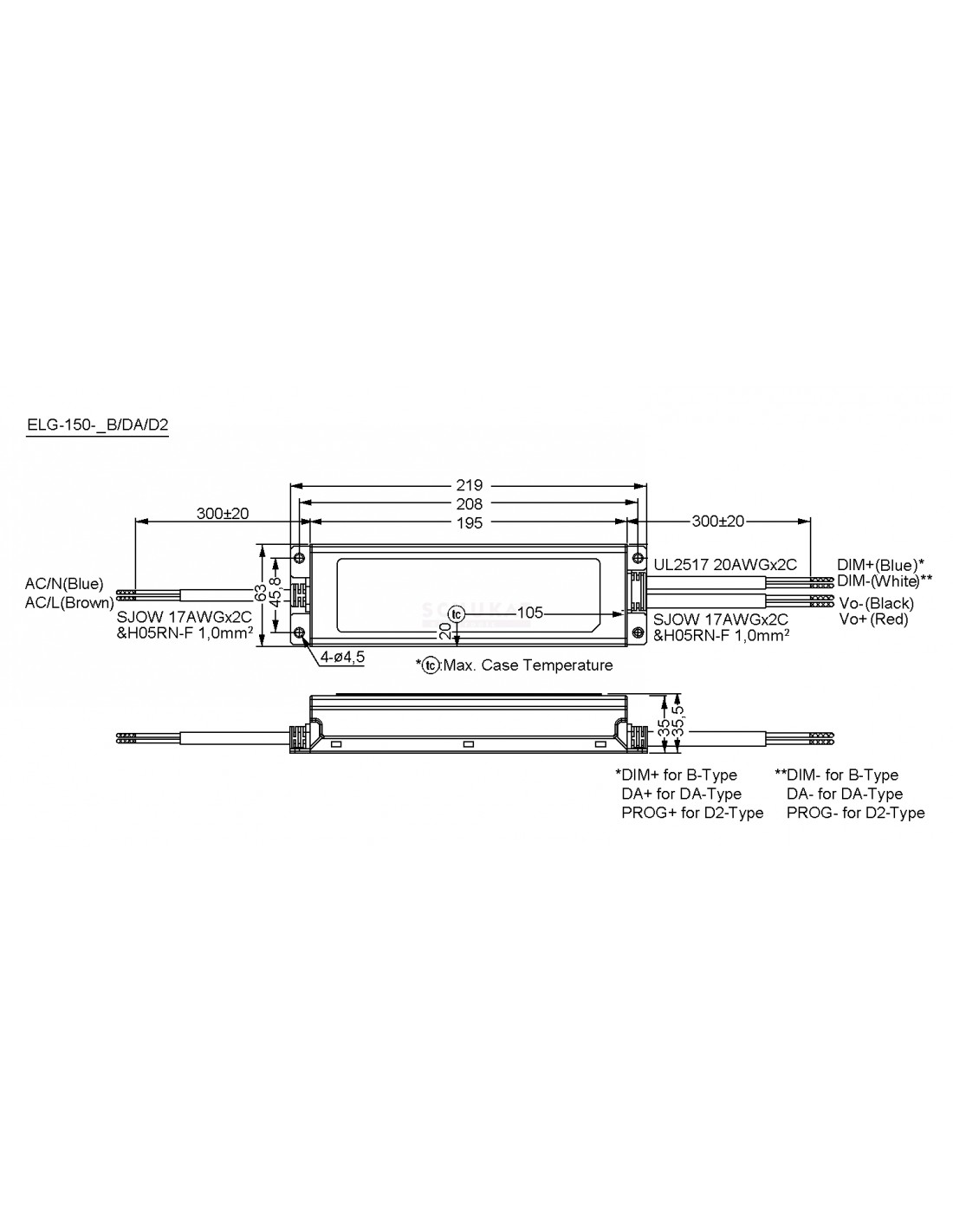

ELG-150 DIMENSIONS LED DRIVER

ELG-150-12B POWER SUPPLY - CV - IP67 - DIMMABLE

Meanwell ELG-150-12B - 120Watts Constant Voltage/Constant current 12V LED Power Supply with 3 in 1 dimming function - Very High Efficiency PSU

ELG-150-12B series is an AC/DC LED driver operates  200-305 VAC and offers DC 12 Volt. Thanks to the high efficiency up to 90.0%, with the fanless design, the entire series is able to operate for -40°C +80°C° case temperature under free air convection. The design of metal housing and  IP67 ingress protection level allows this model both indoor and outdoor applications. This model is equipped with 3 in 1 dimming methodologies to provide the optimal design flexibility for LED lighting system.

ELG-150-12B
In Stock
€36.00 (€36 + VAT)

(€29.26 Per piece)

Dispatched within 24 hours.

Description

Features

180~305VAC wide input range
Built-in active PFC
Protections: Short circuit / Over current/ Over voltage/Over temperature
No load power consumption <0.5W
High efficiency up to 90%
Suitable for LED lighting and street lighting applications
Cooling by free air convection
100% full load burn-in test
5 years warranty

General Specification

AC input voltage range 85~305VAC;254~431VDC
AC inrush current Cold start, 50 at 230VAC
DC adjustment range ±10% rated output voltage
Over current protection 95%~108% constant current limiting, auto-recovery
Over voltage protection 110%~140% rated output voltage
Setup, rise, hold up time 500ms, 100ms, 10ms
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature -40~+80°C (refer to output derating curve)
Safety standards UL8750 approved
EMC standards EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547ï¼FCC part 15 class B
Dimension (LxWxH) 180x63x35.5

Product Details

Voltage
12V
Warranty
3 Years
Power
120 W
Dimming
3 in 1 dimming
Housing
Metal
PFC
Built in Active PFC
Dimmable
Yes
