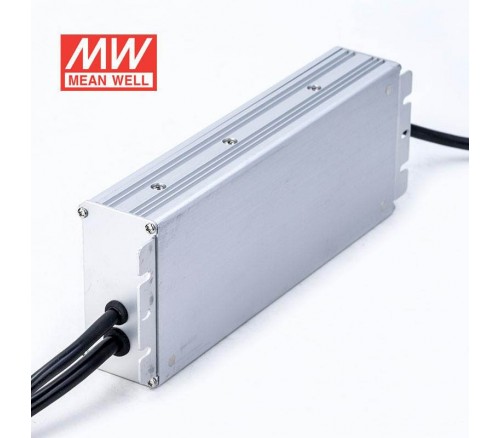

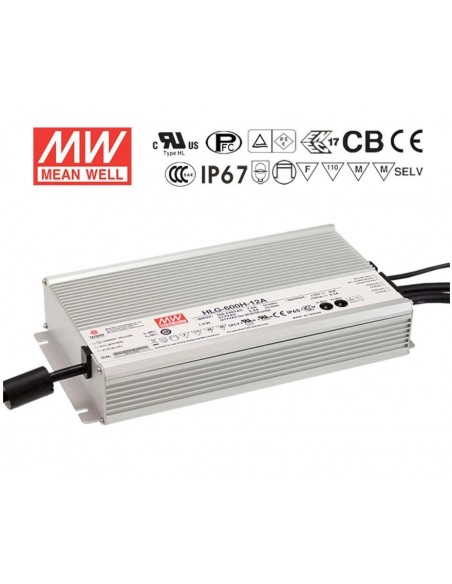

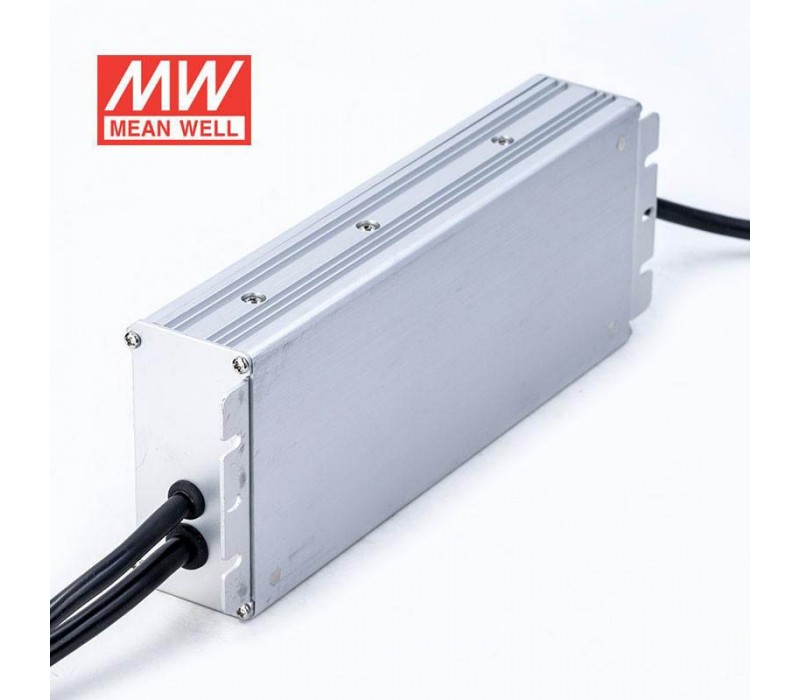

MEAN WELL HLG-600H-24A POWER SUPPLY - CV - IP67

Name: MEAN WELL HLG-600H-24A POWER SUPPLY - CV - IP67
Brand: Mean Well
SKU: HLG-600H-24A
Price: 190 EUR
Availability: InStock

Mean Well HLG-600H-24A - 600Watts Constant Voltage 24V LED Power Supply - HIGH END LED DRIVER

Mean Well offers 7 YEARS WARRANTY * We offer 3 YEARS WARRANTY.

Reference HLG-600H-24A

In Stock

€190.00 (€190 + VAT)

(€190.00 Per unit)

Dispatched within 24 hours.

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 70A at 230VAC
DC adjustment range	-15%~+5% rated output voltage (A-Type only)
Over voltage protection	110%~140% rated output voltage
Over current protection	95%~108% constant current limiting, auto- recovery
Current adjustment range	50%~100% rated output current adjustable by internal potentiometer (for A-Type & HLG-320H C-Type)
Setup, rise, hold up time	500ms, 80ms, 15ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL60950-1, UL8750, ENEC EN61347-1/2-13, EN62384 approved
EMC standards	EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11,EN61547
Connection Input	UL rated, SJTW 18AWGx3C (30cm)
Connection Output	A-Type: SJTW 14AWGx2C (30cm)+ SJTW 14AWGx2C (30cm) + UL2517 22AWGx3C(30cm) B-Type: SJTW 14AWGx2C (30cm)+ SJTW 14AWGx2C (30cm) + UL2517 22AWGx3C(30cm)+ UL2517 18AWGx2C (30cm)
Dimension (LxWxH) (mm)	280x 144x 48.5
