MEAN WELL XLG-320-VA 12V to 24V POWER SUPPLY - CV / CP - IP67

Name: MEAN WELL XLG-320-VA 12V to 24V POWER SUPPLY - CV / CP - IP67
Brand: Mean Well
SKU: XLG-320-VA
Price: 52 EUR
Availability: InStock

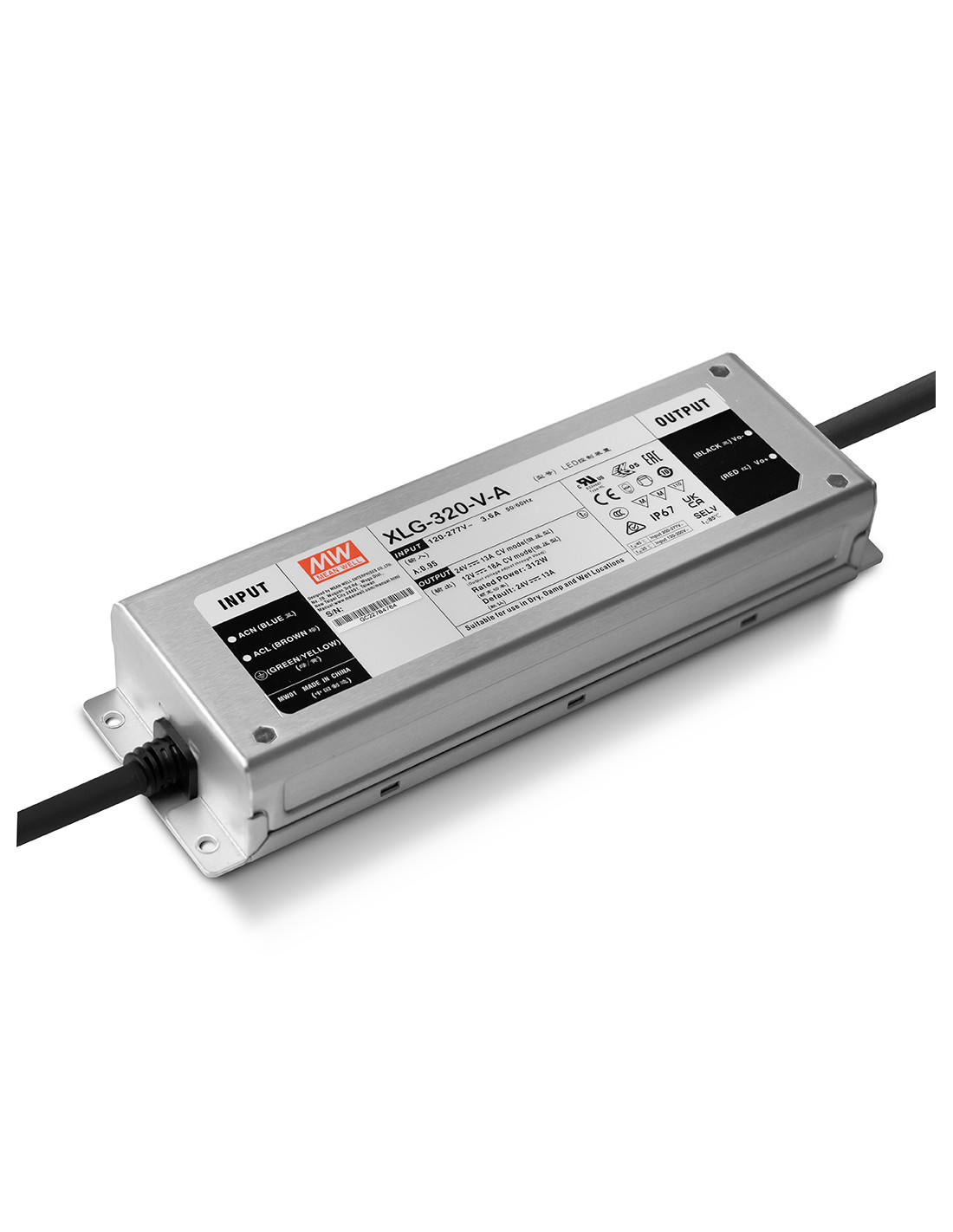

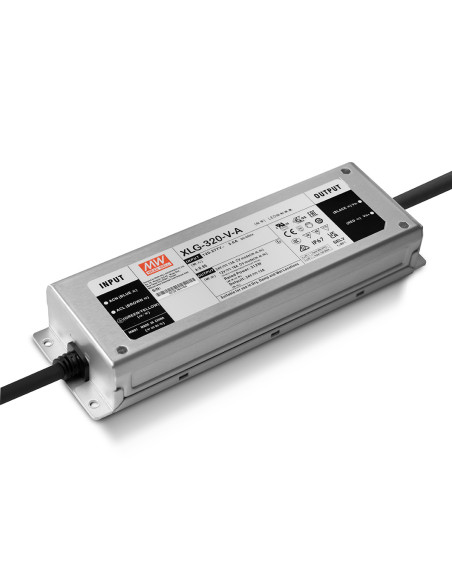

Mean Well XLG-320-VA - 320 Watts Constant Voltage / Constant Power (automatic between the two functions) ADJUSTABLE 12V-24V LED Power Supply

Ideal driver for 12V or 24V LED Projects.

This power supply is a 312W AC/DC LED driver operates 100-305 VAC and offers selectable 12V to 24Volt. Thanks to the high efficiency up to 93%, with the fan-less design, the entire series is able to operate for -40°C +85°C° case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this model both indoor and outdoor applications. Dimmer can be used between this power supply and the LED strips.

Reference XLG-320-VA

In Stock

€52.00 (€52 + VAT)

(€62.00 Per unit)

Dispatched within 24 hours.

Description

General Specification of XLG-200H Series

AC input voltage range	100~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 45A at 230VAC
DC adjustment range	See the data sheet below
No load Power Consumption	<0.5W
Over current protection	95%~108% constant current limiting, auto-recovery
Over voltage protection	27-34V
Setup, rise, hold up time	160ms (230V)
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-40~+90ºC (refer to output derating curve)
Safety standards	See the data sheet below
EMC standards	See the data sheet below
Connection Input	UL rated, SJTW 18AWGx3C (30cm);
Connection Output	A/D/Blank-Type: SJTW 14AWGx2C (30cm) ; B-Type: SJTW 14AWGx2C (30cm)+SJTW 18AWGx2C (30cm);

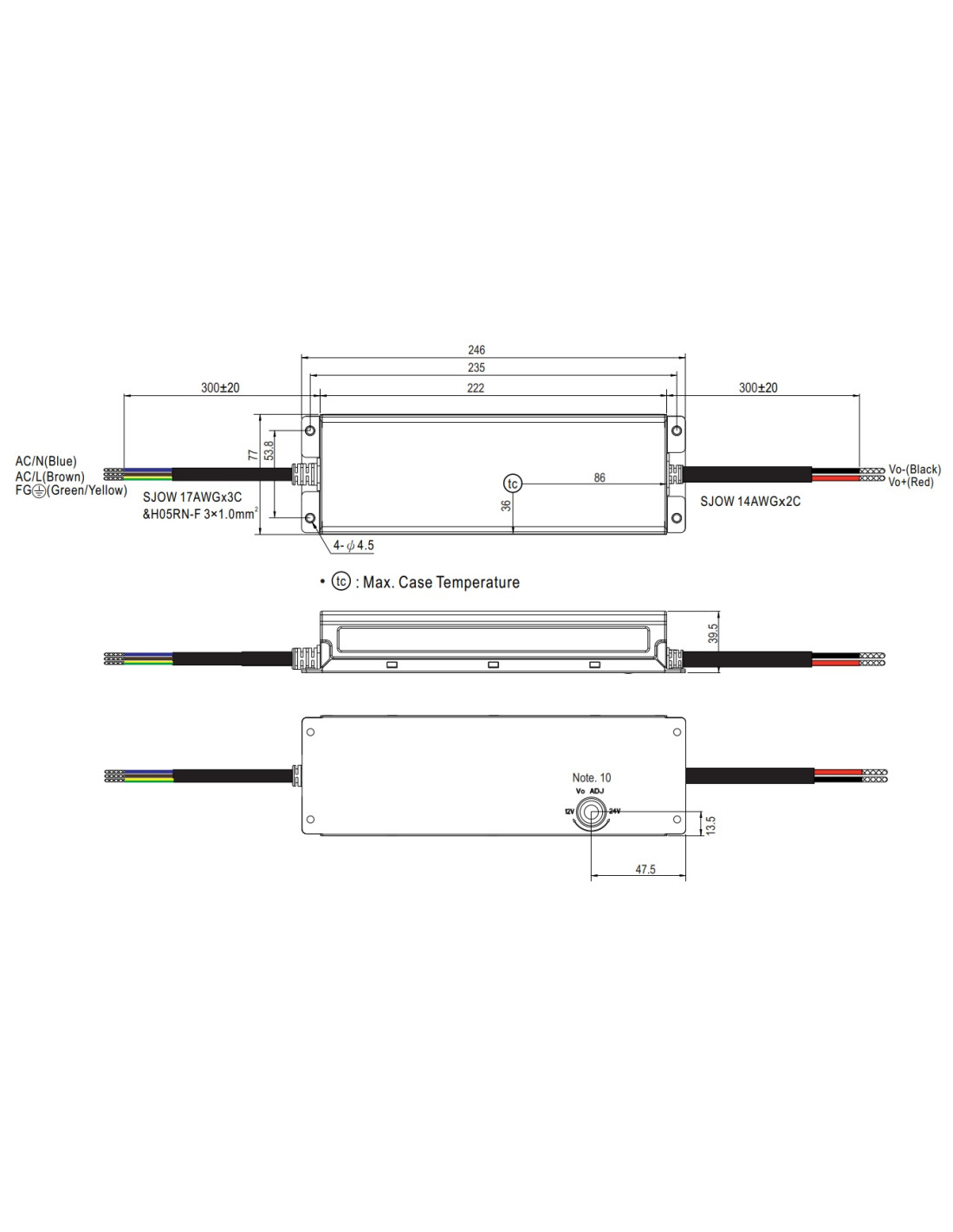

Dimension (LxWxH) (mm)	246 x 77 x 39.5 mm

Product Details

IP rating: IP67
Voltage: 12V
24V
Warranty: 3 Years
Power: 312 W
Dimming: Yes, dimmer can be used between the LED strip and Power supply
Housing: Metal
PFC: Built in Active PFC
