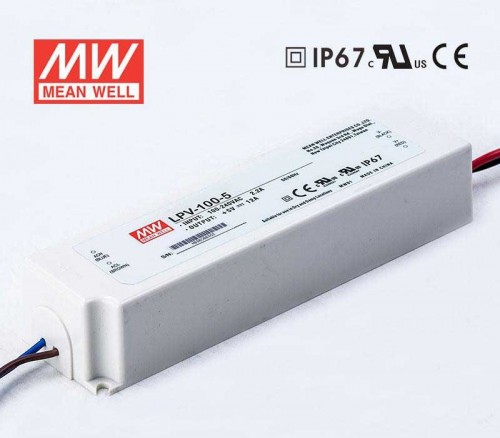

MEAN WELL LPV-100-5 5V POWER SUPPLY - CV - IP67

Mean Well LPV-100-5V - 100Watts Constant Voltage 5V LED Power Supply - High Efficient PSU

Output Voltage	5V
Rated Power	100W
IP rating	IP67
Usage	Indoor - Outdoor
Protection	Short circuit, overload, overvoltage
Case	Plastic
Warranty	2 Years Warranty
Type	CV (Continuous Voltage)

Reference LPV-100-5

WILL BE IN STOCK soon

€28.53 (€28.53 + VAT)

(€28.53 Per unit)

General Specification

AC input voltage range	90~264VAC;
AC inrush current	Cold start, 75A at 230VAC
Overload protection	110%~150% hiccup mode, auto-recovery
Over voltage protection	115%~135% rated output voltage
Withstand voltage	I/P-O/P: 3kVAC
Working temperature	-25~+70°C (refer to output derating curve)
Vibration	10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards	Design refer to IEC60950-1
EMC standards	EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Connection Input	UL rated, 18AWGx2C (30cm)
Connection Output	UL rated, 14AWGx2C (30cm)
Dimension (LxWxH)(mm)	190x 52x 37
