Profile |

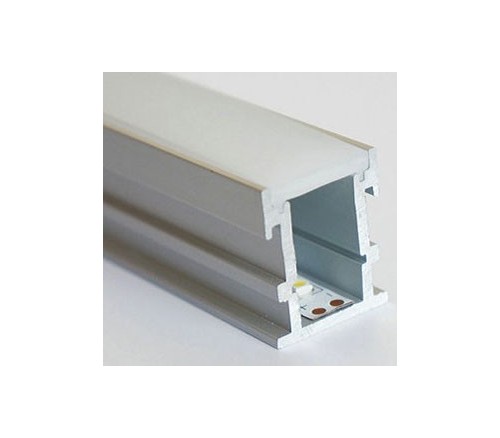

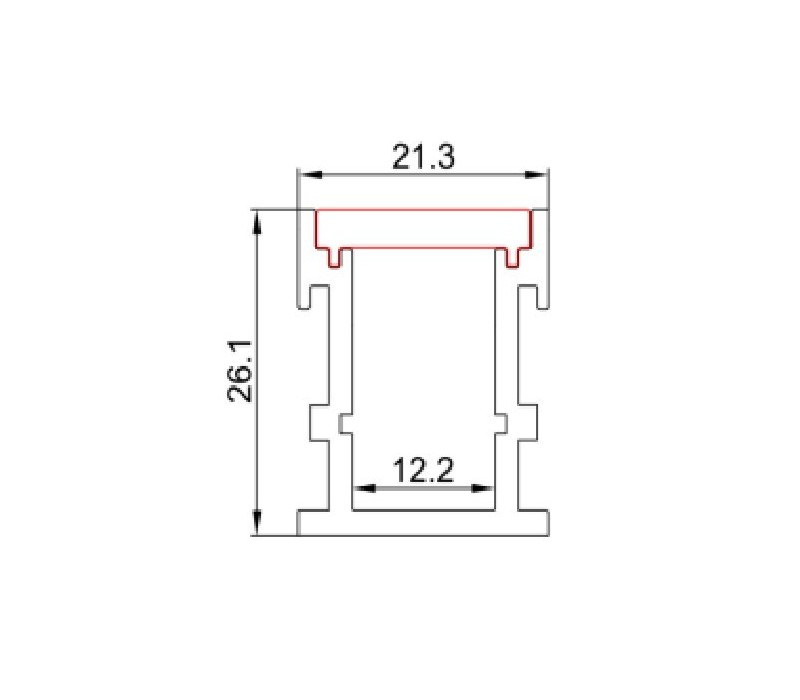

Deep profile with no flange |
|
Cover |
PC diffuser - opal matte |
|
Length |
1m / 2m |
| Accessories |
|
|
LED |
12mm or less wide LED light strips - sold separately |
*NOTE! The price refers only to aluminum profile! Led strips are ordered separately.
Application:
- Recessed application - Designed for floors (tiles).
- Given the deeper profile the light is more even.
- Suitable tie-in tiles, wooden floors, walls even furnitures.
Specifications :
- High quality haevy duty PC diffuser
- Made from anodizing aluminum for better heat dissipation (protects the LED)
-
Suitable for flexible as well as high power led bars
- For indoor use only
Important notes for selecting the diffuser and LED light source:
This low-profile profile is best suited for 120-240 led/m led strips if an even light is desired. As a distance between the LEDs increased, slight bright spots can be seen.
If the led strip luminous emittans without front plastic is 100% Lux, in a profile with semi-transparent cover decrease the light by 10%, in a profile with matt diffuser the loss is around 50%. So, matt diffusers provide more even light, but also decreased intensity. In practice, given the wide range of strong LED strips it does not cause any problem.
An LED profile is not just for design; it is a Heat sink and physical protection to LEDs!!! Without cooling the LED lifespan will be dramatically decreased.
