- Input connect with a variety of induction sensor head,
- output connected directly to the low voltage LED strip.
- Max 8A output current, max output power 384W@48V.
- PIR motion sensor: when people enter the sensitive eld, the light turn on; when people exit the sensitive eld, the light turn off after 30 seconds.
- Touch sensor: short touch to turn on or turn off light; long touch to dimming up or down.
- Door sensor: when the door open, or no obstacle ahead, the light turn on gradually; when the door close, or obstacle ahead, the light turn off gradually.

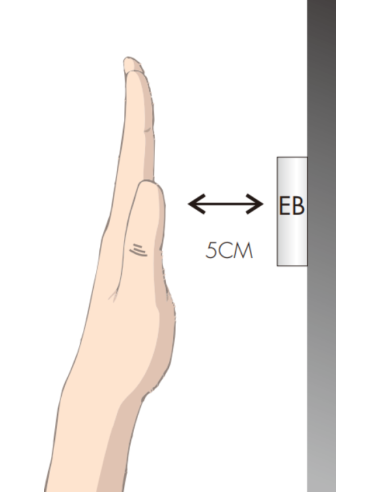

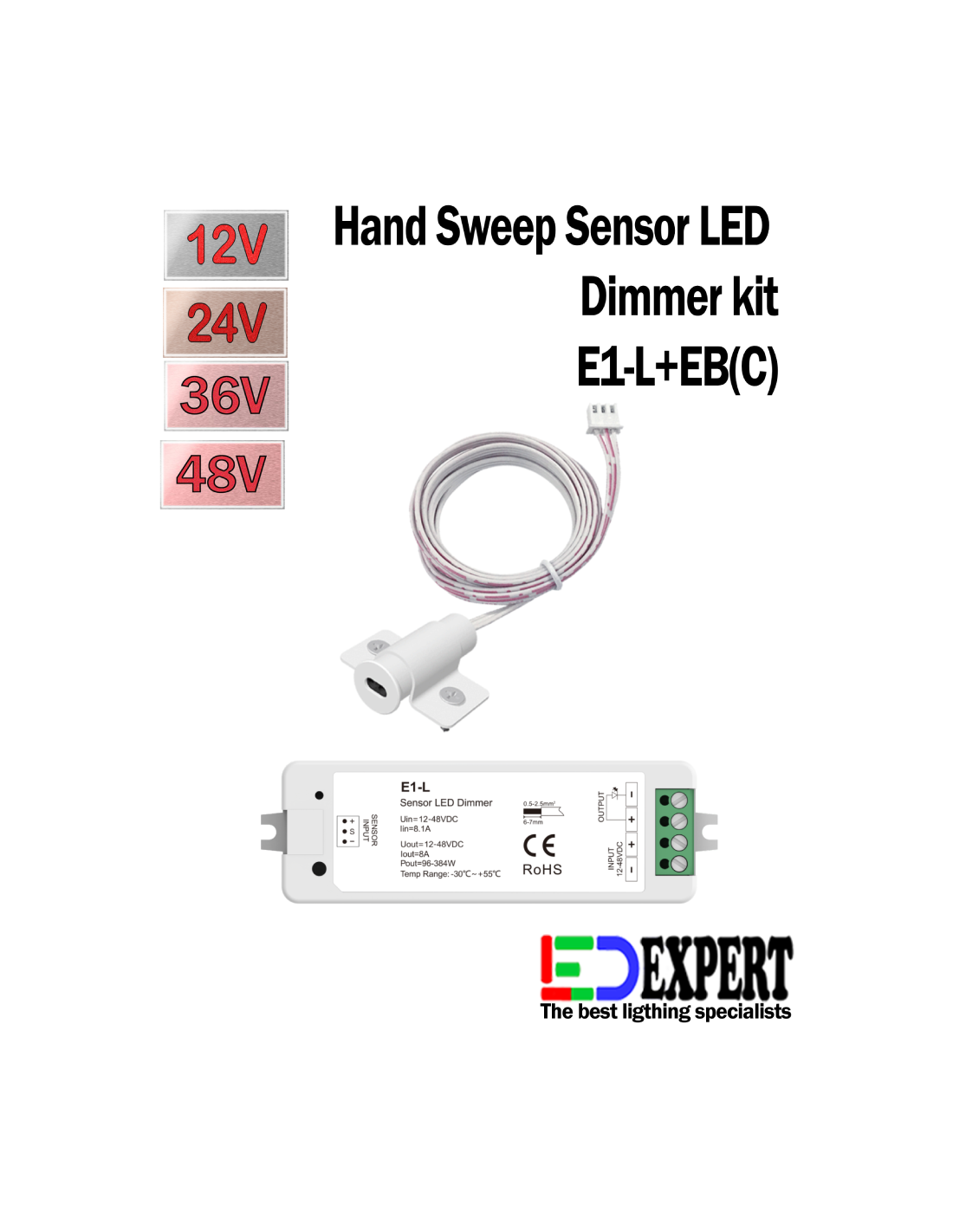

- Hand sweep sensor: when hand sweep, the light turn on gradually; when hand sweep again, the light turn off gradually.
- Microwave motion detector: turn on the light upon detection of motion, and turn off after a pre-selected hold time when there is no movement, without dimming, with dimming and two-step dimming function respectively
- EW sensor also works with PBL + CV1, CV2 and CV1(WT) modular kits.
E1-L Wiring
E1-L Inputs and outputs
