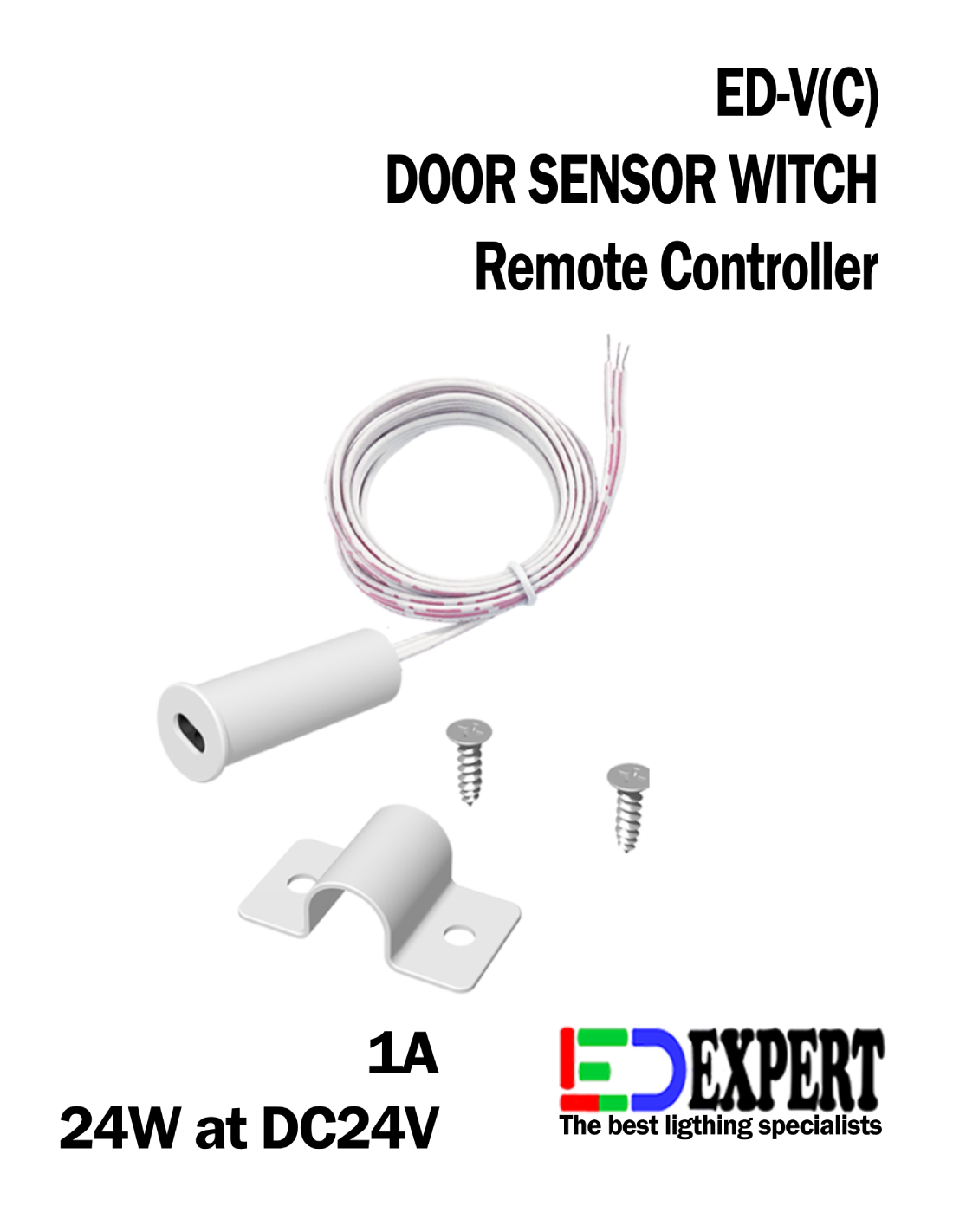

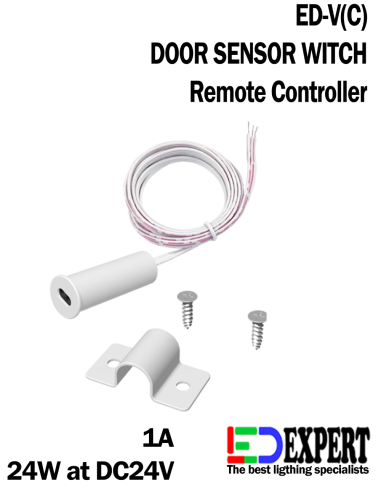

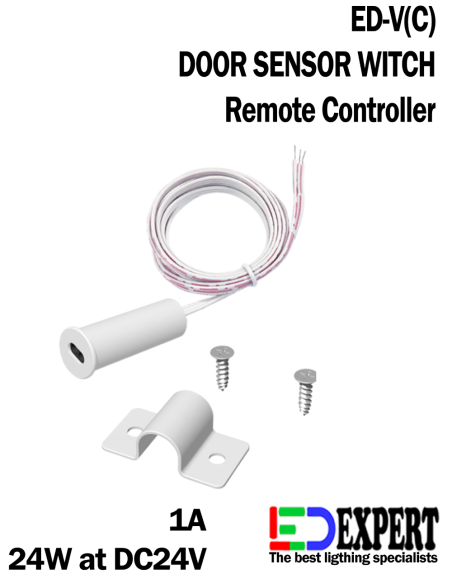

Door sensor switch - 1A for 3-6 LED strip - ED-V(C)

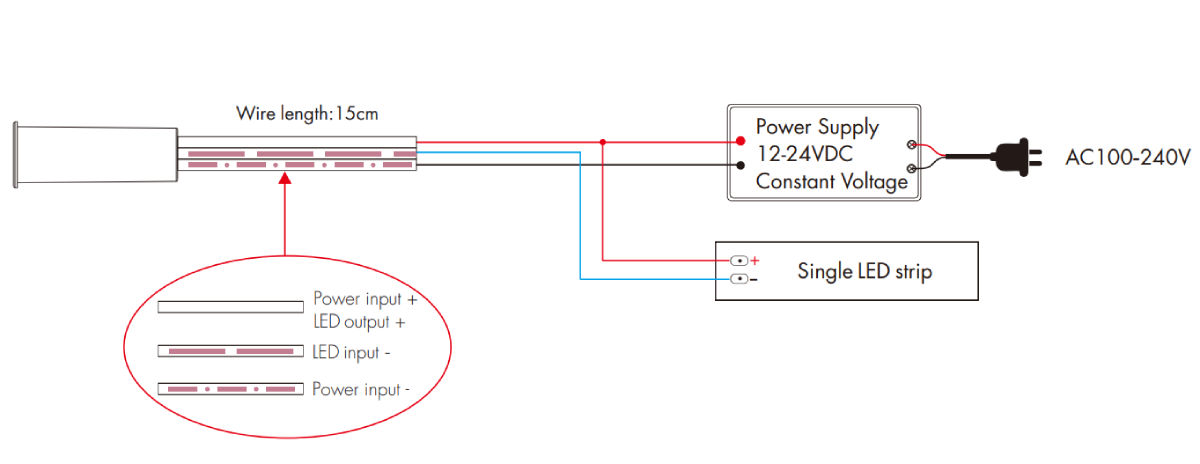

• Constant voltage output door sensing switch, output connected to low voltage LED strip.
• 1second light on/off fade.
• Maximum output current 1A, maximum power 24W@24V.
• Output PWM frequency: 2000Hz.
• Apply to cabinet, closet, wine cabinet and other lighting.

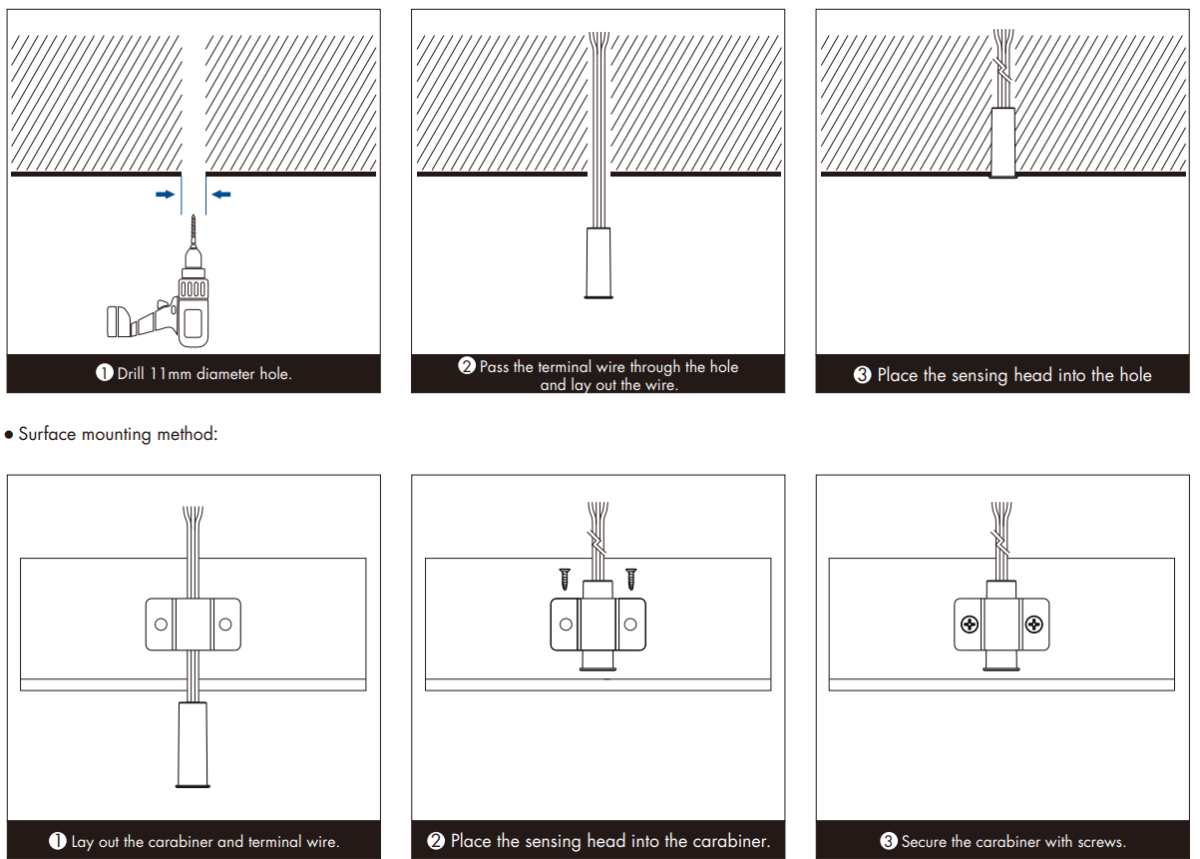

Use the door as a reflective surface.
The sensor is installed near the outer edge of the cabinet door, approximately 1 cm from the edge.
When the door is open, or when there is no obstacle in front of the sensor head, the light gradually turns on.
When the door is closed, or an obstacle is detected in front of the sensor head, the light gradually turns off.
