| Manufacturer | GLP |
|---|---|
| SKU | GTMC-100-24-D |

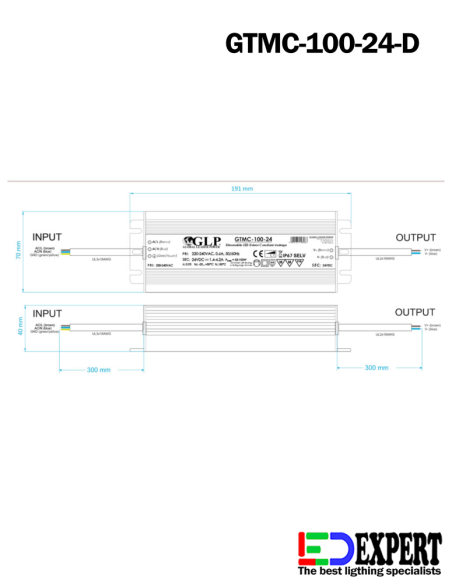

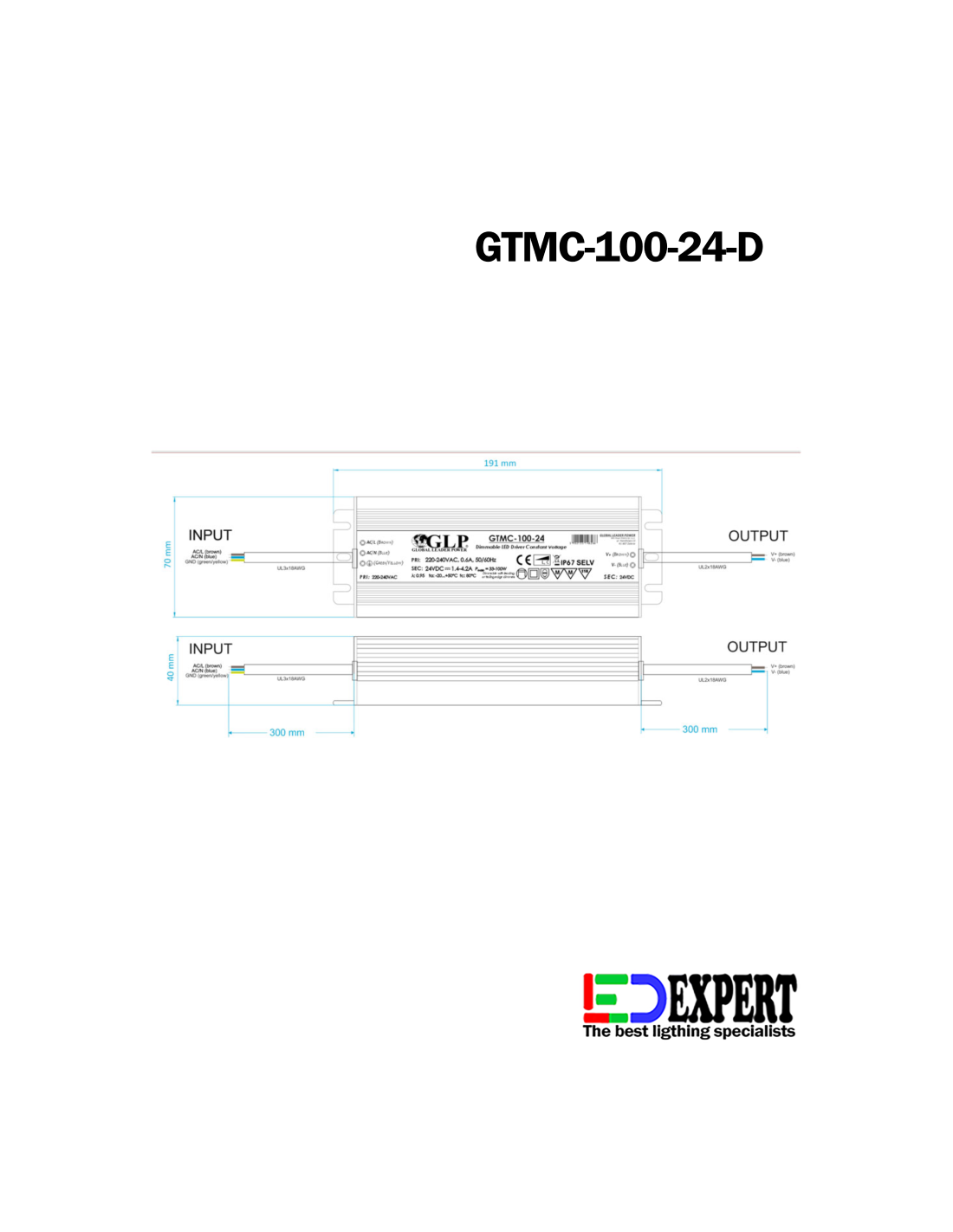

| Dimensions | 191 x 70 x 40mm (L x W x H) |
| OUTPUT | |
| Output Voltage | 24V |
| Rated Current | 4.2A |
| Current Range | 1.4 ÷ 4.2A |
| Rated Power | 100W |
| Ripple & Noise (max.) [2] | 300mVP-P |
| Setup, Rise Time [4] | ≤ 500ms / full load |
| INPUT | |
| Voltage Range | 200 ÷ 240VAC |
| Power Factor (typ.) | ≥ 0.95 / full load |
| Efficiency (typ.) | ≥ 90% / full load |
| AC Current (typ) | 0.60A / full load |
| Inrush current (max.) | 45A / 500μs (Cold start) |
| Lifetime | 30,000Hrs |
| DIMMING | |
| Dimming Range | 1 – 100% of rated output current |
| Suitable dimmers | Triac dimmers (leading or trailing edge) compatible with capacitive or inductive load |
