GMTC-200-24
GLP GTMC-200-24-D 200W 24V TRIAC DIMMABLE LED DRIVER IP67
GLP GTMC-200-24-D 200W 24V TRIAC DIMMABLE LED DRIVER IP67
GMTC-200-24
GLP GTMC-200-24-D 200W 24V TRIAC DIMMABLE LED DRIVER IP67
GLP GTMC-200-24-D 200W 24V TRIAC DIMMABLE LED DRIVER IP67

GPL GTMC-200-24-D 200W 24V TRIAC DIMMABLE LED DRIVER IP67

GTMC 200W 24V CV Triac Dimmable LED Driver

  • GTMC 200W, 24W CV Triac Dimmable LED Driver Constant voltage design
  • European AC input range
  • Protections: Overload / Over voltage / Short circuit
  • Cooling by free air convection
  • Isolation class I,  Fully encapsulated with IP67 level
  • Suitable to work with AC Triac dimmers
  • Leading and Trailing edge compatible.

GTMC-200-24-D
In Stock
€62.00 (€62 + VAT)

(€62.00 Per unit)

Dispatched within 24 hours.

Description

Manufacturer GLP
SKU GTMC-200-24-D

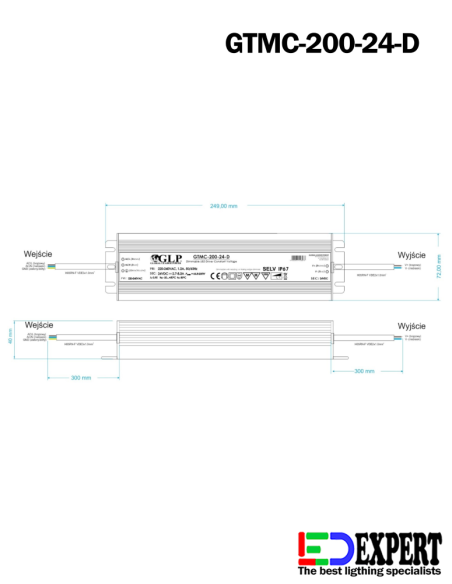

Dimensions 249 x 72 x 40mm (L x W x H)
OUTPUT
Output Voltage 24V
Rated Current 4.2A
Current Range 2.7 ÷ 8.3A
Rated Power 200W
Ripple & Noise (max.) [2] 300mVP-P
Setup, Rise Time [4] ≤ 500ms / full load
INPUT
Voltage Range 200 ÷ 240VAC
Power Factor (typ.) ≥ 0.95 / full load
Efficiency (typ.) ≥ 92% / full load
AC Current (typ) 1.20A / full load
Inrush current (max.) 75A / 300μs (Cold start)
Lifetime 30,000Hrs
DIMMING
Dimming Range 1 – 100% of rated output current
Suitable dimmers Triac dimmers (leading or trailing edge) compatible with capacitive or inductive load

Product Details

Voltage
24V
Color
Single color
Power
200W
Dimming
Dimming with TRIAC
Yes
