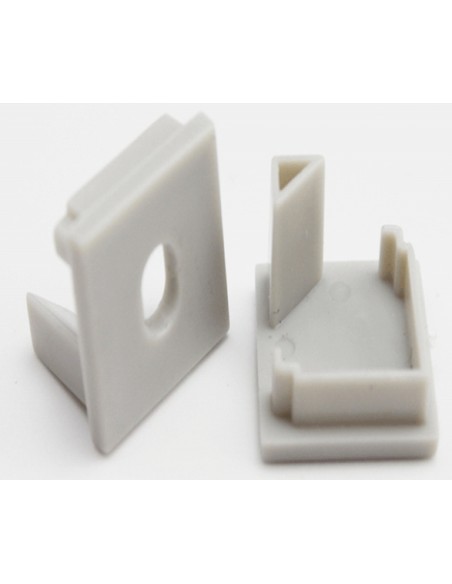

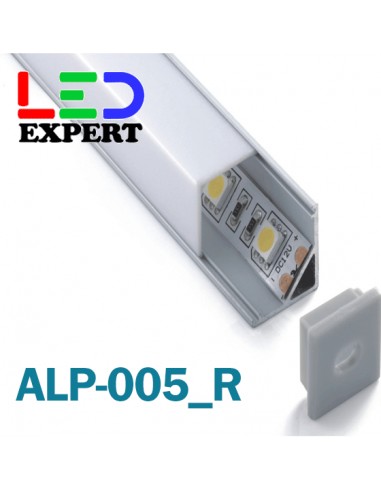

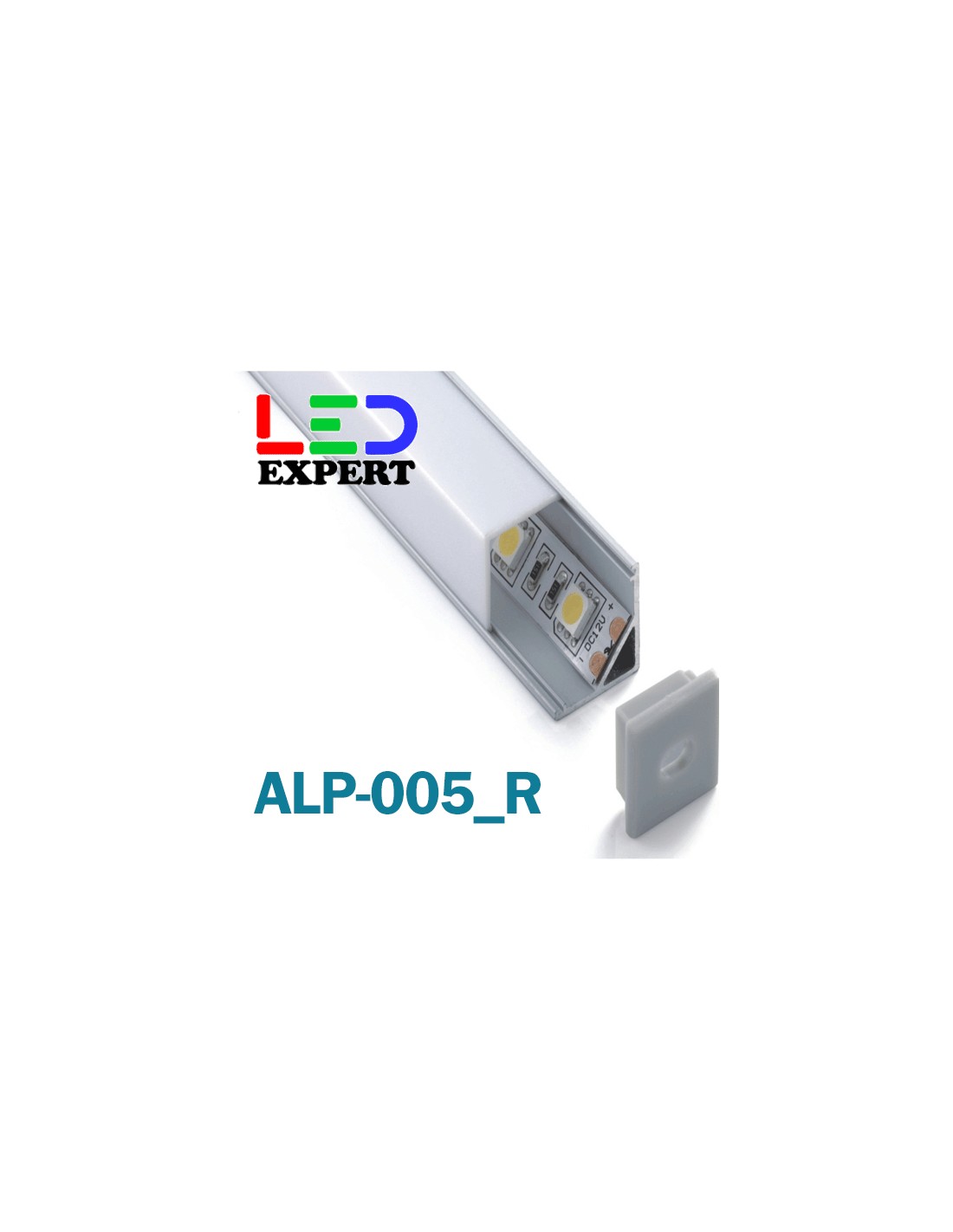

V-shape aluminum channel has a 90-degree vertical angle diffuser. Comes with the cover, two end-caps and mounting clips.
Features :
- Extruded 6063 T5 Aircraft grade aluminium with Anodised surface

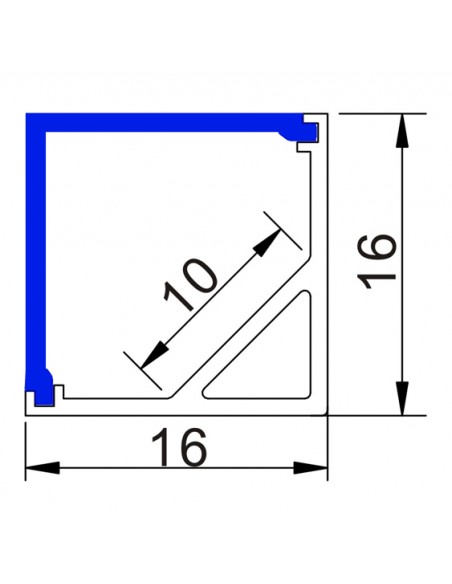

- Maximum width of LED strip: 10 mm
- High quality diffuser, placing/removing from front on click
- UV resistant
- Available with opal matte diffuser
- Not LED dots shows on opal diffuser (using high density LED ribbon)
- Suitable for flexible as well as high power led bars
- Available length – 2m (for larger length please contact us)
- For indoor use only
NOTE! The price refers only to aluminum profile, diffuser and mounting clips! Led strips are ordered separately.
Important note to light permeability: If the led strip luminous emittans without front plastic is 100% Lux, in a profile with semi-transparent cover decrease the light by 10%, in a profile with matt diffuser the loss is around 50%. So, matt diffusers provide more even light, but also decreased intensity. In practice, given the wide range of strong LED strips it does not cause any problem.
Applications:
This profile is designed for installations at corners, perfect for indoor/outdoor use, such as, showcase, under cabinet, window, door frames, bar and so on.
This aluminum channel/profile works with LED flex/rigid strip lights (less than 12mm wide)
- kitchen under cupboard / office under shelf lighting
- Interior cabinet light designs
- Stores shelf LED lighting to the side/corner or built into shelf
- Door frame lighting
- Heat sink and physical protection to the LEDs!!!
