Door sensor switch - 4A for LED strip - ED-CV(D) DC Plug connectors

Use the door as a reflective surface.

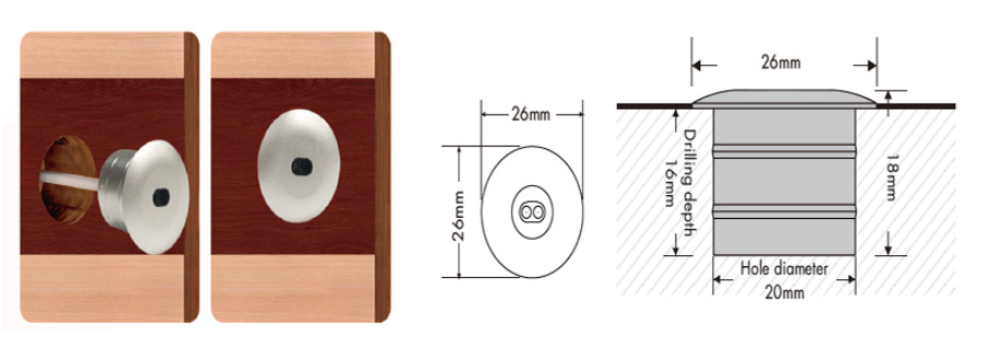

The sensor is installed near the outer edge of the cabinet door, approximately 1 cm from the edge.
When the door is open, or when there is no obstacle in front of the sensor head, the light gradually turns on.
When the door is closed, or an obstacle is detected in front of the sensor head, the light gradually turns off.

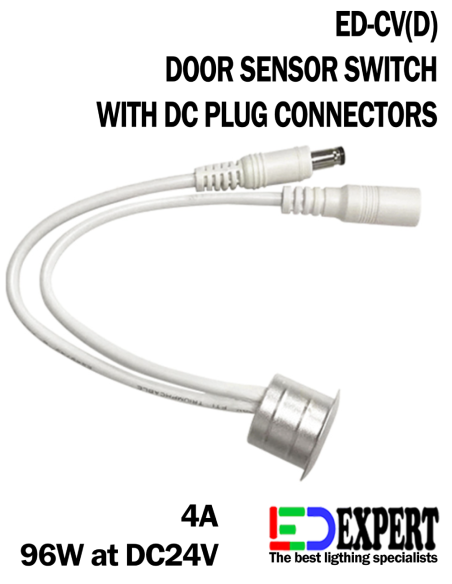

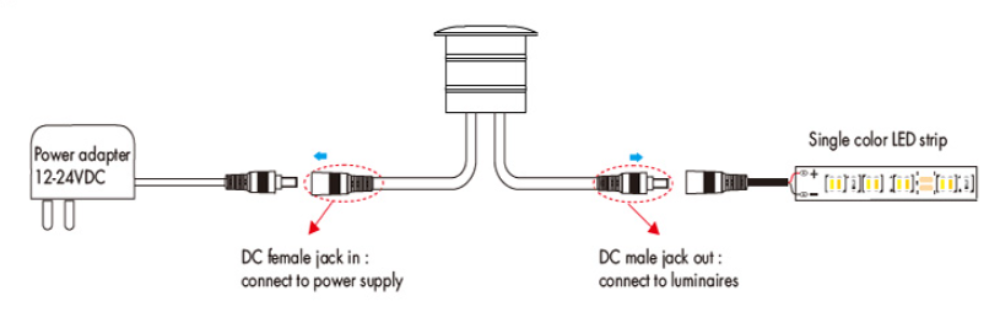

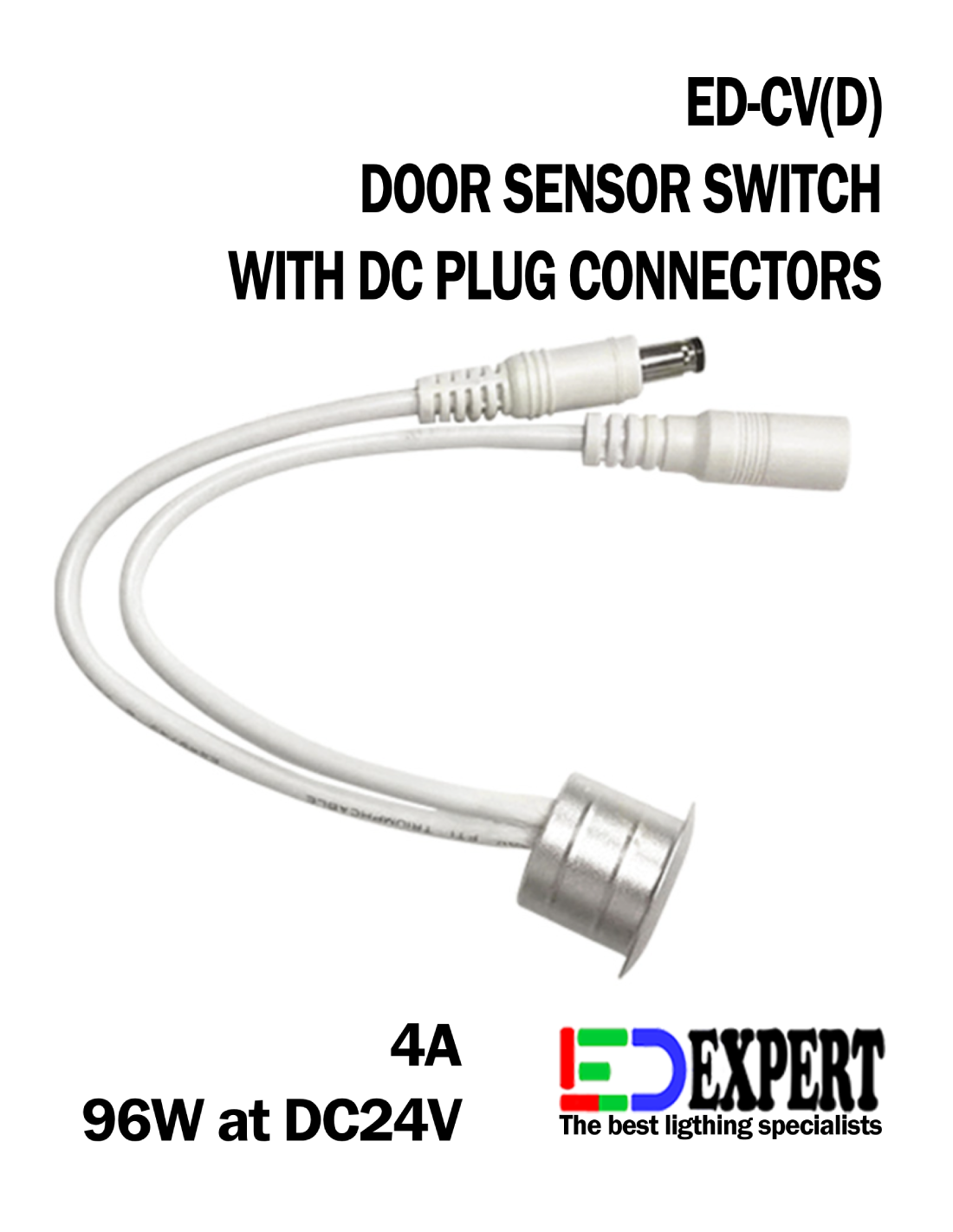

ED-CV(D) is a concealed aluminum door control sensing switch with DC jack plug detects the state of door and sends the signal to lighting system to control the LED light on/off.

When the door open or no obstacle in front of this door sensor switch, the light turns on gradually; conversely, the light gradually turns off, which is suitable for closets, cabinets, and wine cabinets. this constant voltage output door sensor switch supports a maximum output current of 4A that is appropriate for many lighting applications.

Our door sensing switch possess 1-second on/off light fade function, providing a gradual transition between brightness levels.

ED-CV(D)
