| Rated Current | 6A Max |
|---|---|
| Rated voltage | 36V |
| Withstand voltage | 500V |
| Temperature resistance | 105℃ |
| Working temperature | -20℃ ~ +80℃ |
| Allowable humidity | 15%~90% |
| Applicable strip specifications | COB strip |

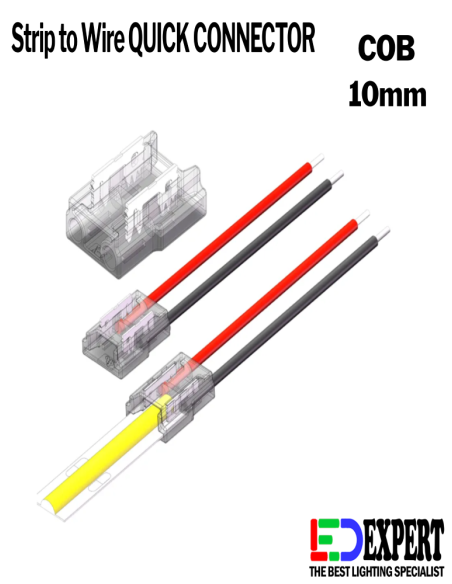

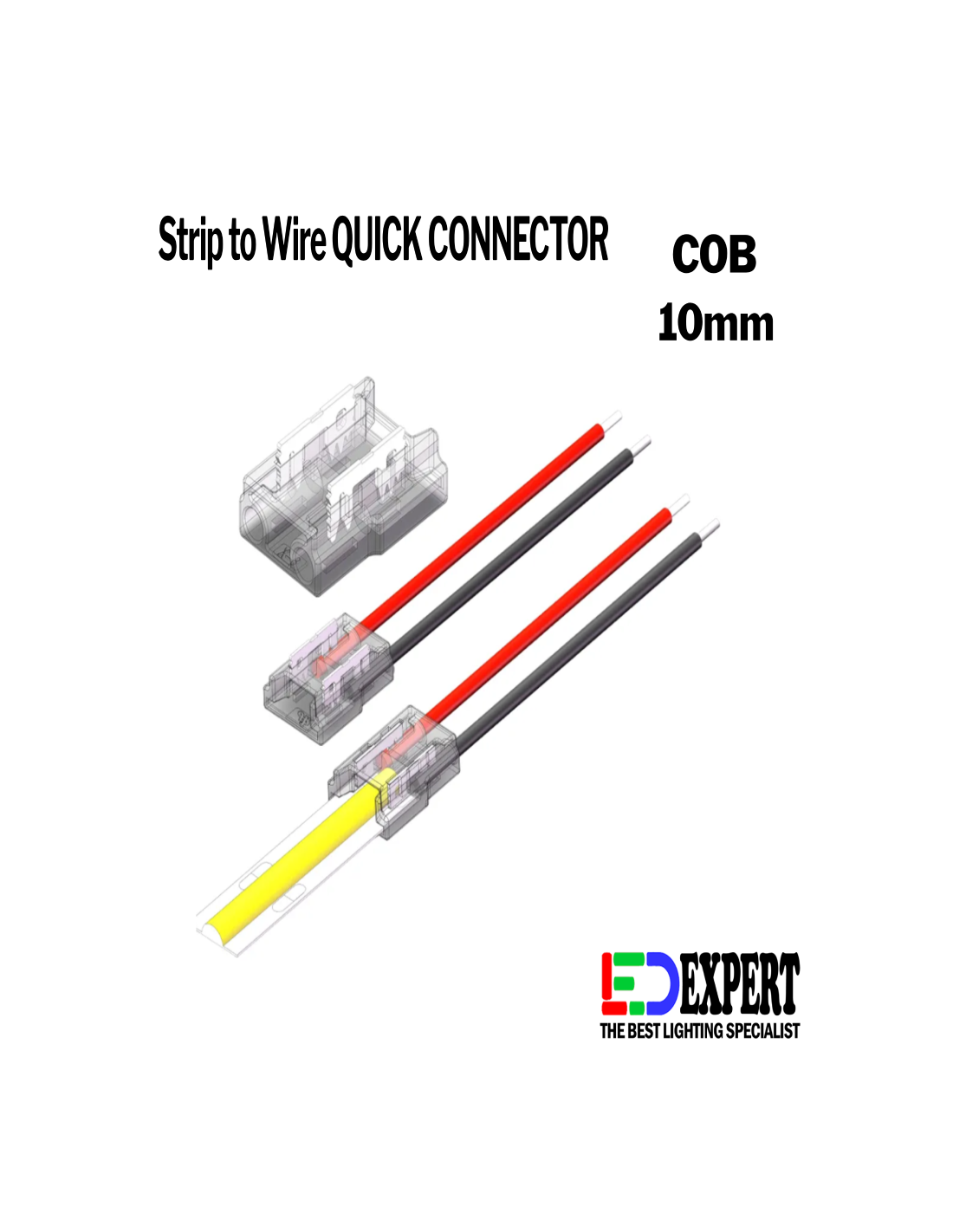

| Application | For assembling a power lead to an IP20 LED Strip |
| Suitable Led Strip Width | 10mm |
| Suitable LED Strip | LED Strip (2 Pin Single Colour) - 8mm Width Tape with IP20 Protection |
The connector fits into ALP PROFILES -001(-S,-W, -BA), 002(-B, -BA, -W, -OW), 003(DW), 004, 005(-C, -R), 006-C, 007, 008, 009, 013(-S-W, -BA), 014(-S, -W, -BA), 023(-S), 025, 033, 034, 068, 069, 070, 071, 073, 083, 084, 090, 827, 830W, 5035, 5035FL, 6035, 7535, 7535FL, P01-W,
