Quick strip to power cob led connector 8mm 6A 3m

Quick strip to power cob led connector 8mm

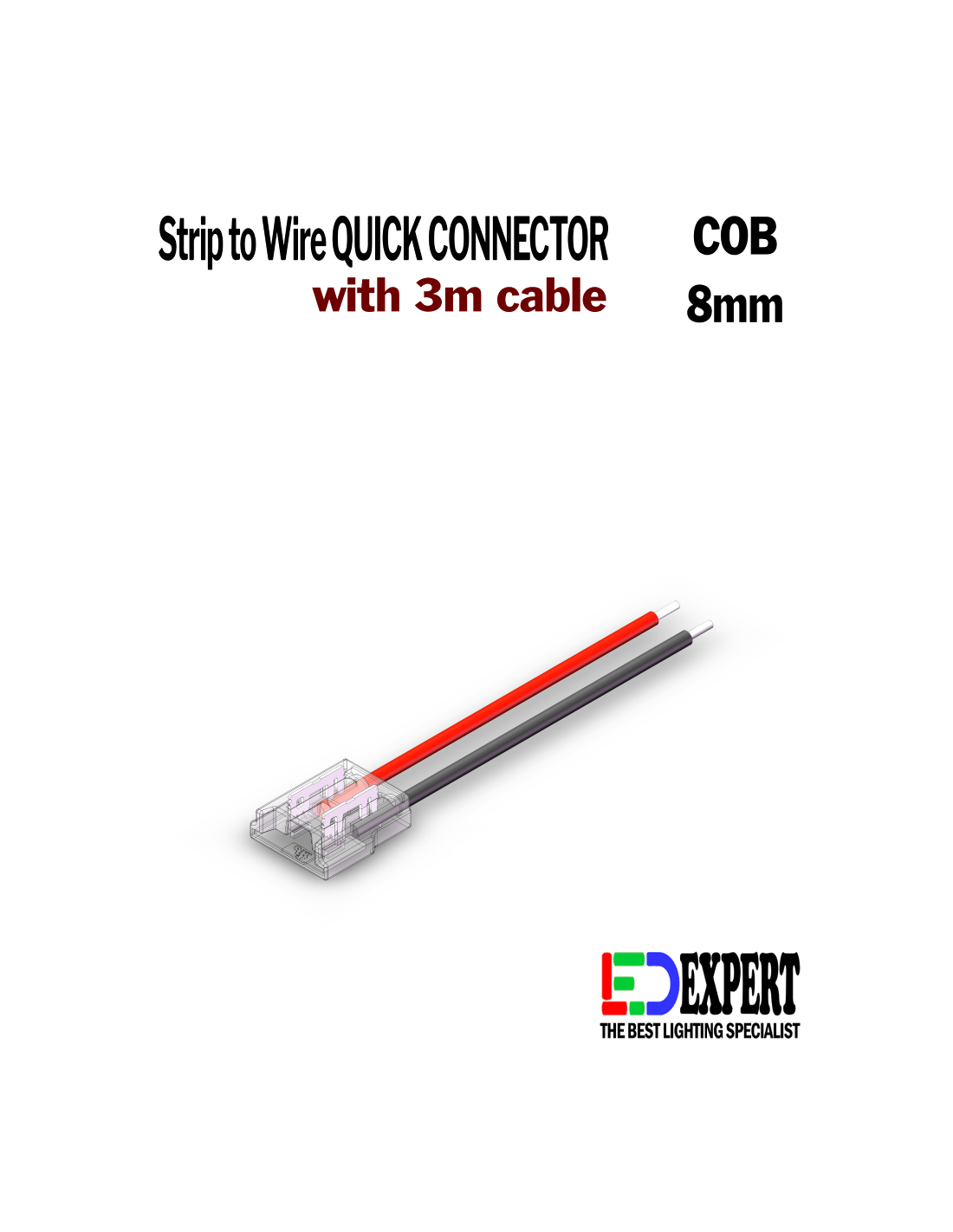

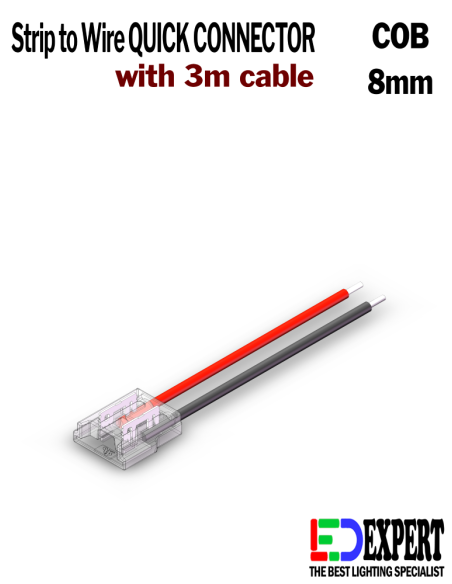

COB Led Quick connector with 3m cable - Strip to Wire/Power - 8mm - 6A

Solderless stable quick connector for 8mm COB Led strips
300cm 20AWG red/black tail cable
Given the ultra slim design fits into LED Aluminium Profiles
For 5-36V LED Strips
Max current: 6A
10mm version and strip to strip versions are also available.

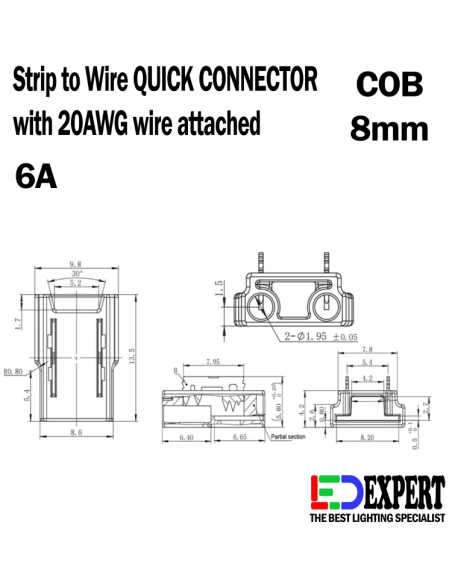

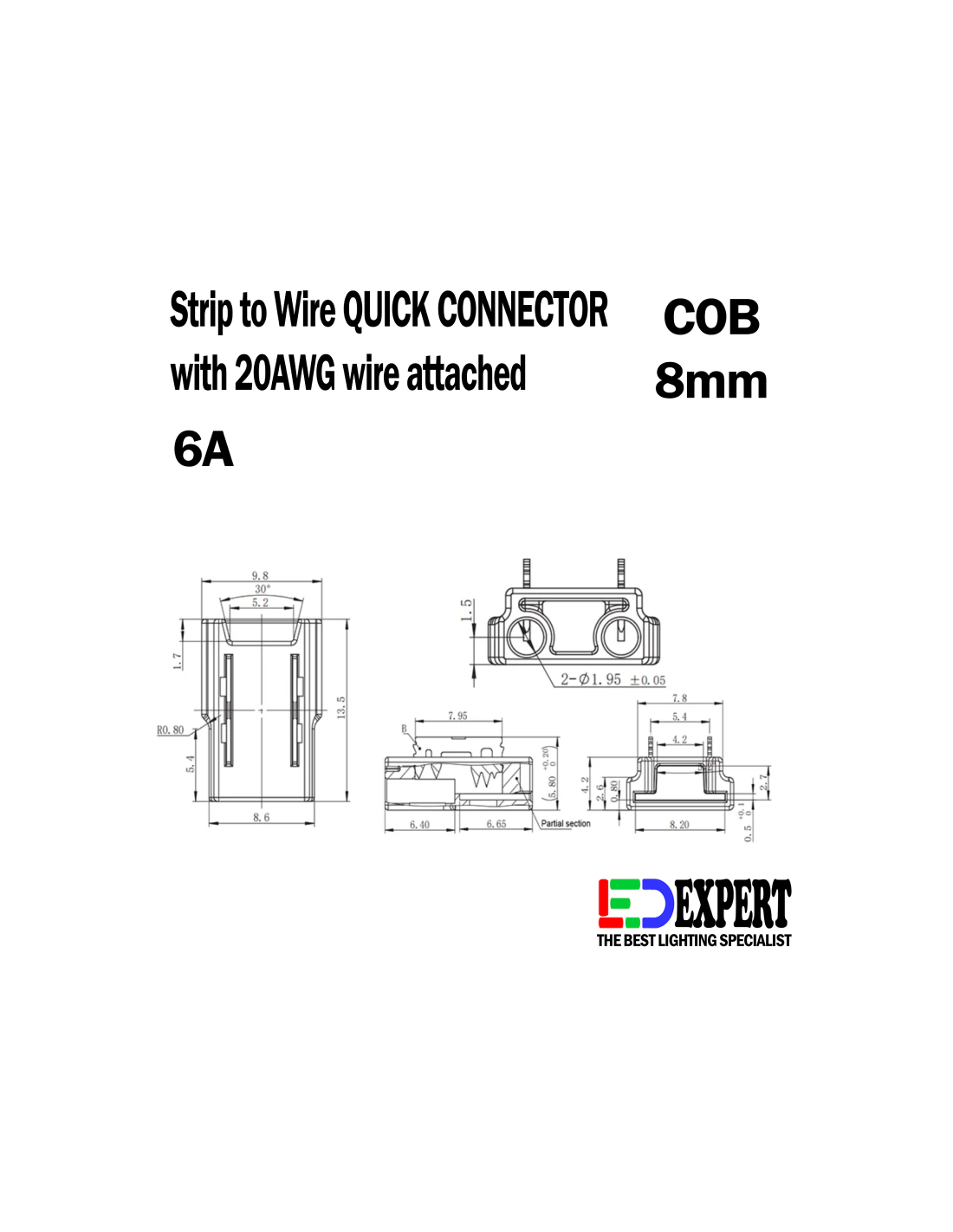

Head size: 13.5 x 9.8 x 5.8 mm

Reference conn-s2p-8-C-6A-3m

In Stock

€2.20 (€2.2 + VAT)

Dispatched within 24 hours.

Description

The connector fits into ALP PROFILES -001(-S,-W, -BA), 002(-B, -BA, -W, -OW), 003(DW), 004, 005(-C, -R), 006-C, 007, 008, 009, 013(-S -W, -BA), 014(-S, -W, -BA), 023(-S), 025, 033, 034, 068, 069, 070 , 07 1 , 073, 083, 084, 090, 827, 830W, 5035, 5035FL, 6035, 7535, 7535FL, P01-W,

Solderless installation with Ultra slim COB Led Quick Strip to Power Connector

Instruction for s2w connector

Prepare the strip buy cutting exactly at along the cutting line, prepare one connector

Push the strip into the connector and use pliers to clamp the tereminal to the level of the plastic surface. CLamp both sides.

instruction s2w connector 3

After pressing in the contact terminal is only 0.12mm higher than the the top of the plastic base.

Product Details

TYPE OF CONNECTOR: STRIP TO WIRE
Rated Current: 6A
Rated Voltage: 36V
LED STRIP TYPE: Single Color
Working temperature: -20℃ ~ +80℃
GOOD FOR COB STRIP: YES
GOOD FOR SMD STRIP: YES
